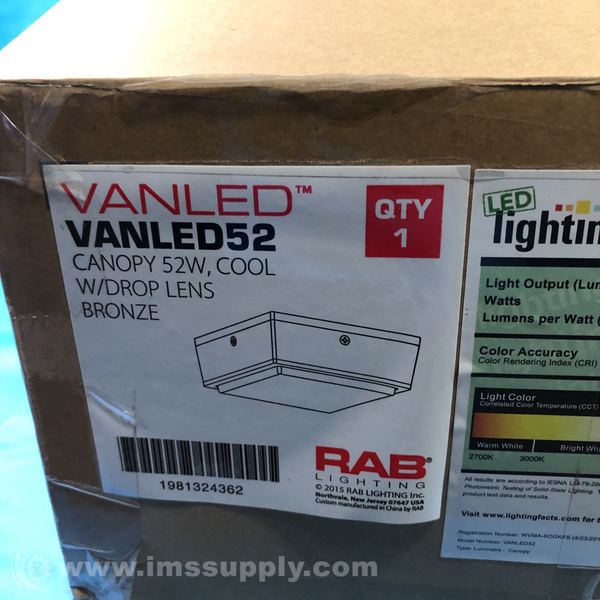

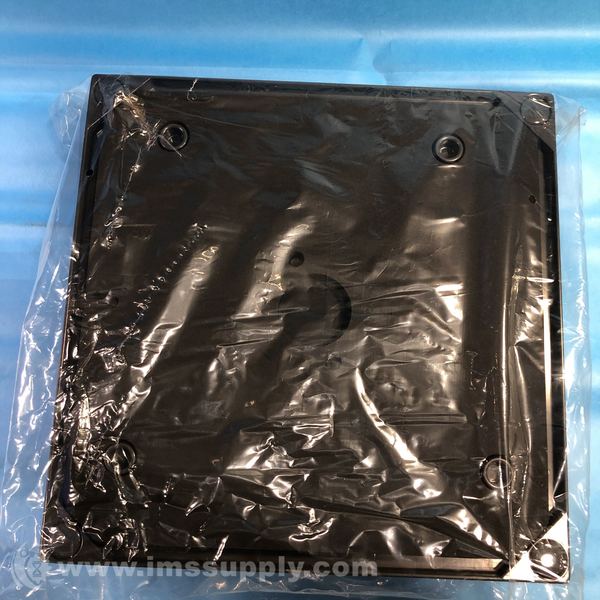

RAB LIGHTING VANLED52 LED CANOPY LIGHT
Quick Overview
Manufactured By: RAB LIGHTING
Manufacturer Part Number: VANLED52
IMS Product Code: 1921064
Packaging: Sold Individually
Description:
Rab Lighting VANLED52 LED Canopy Light

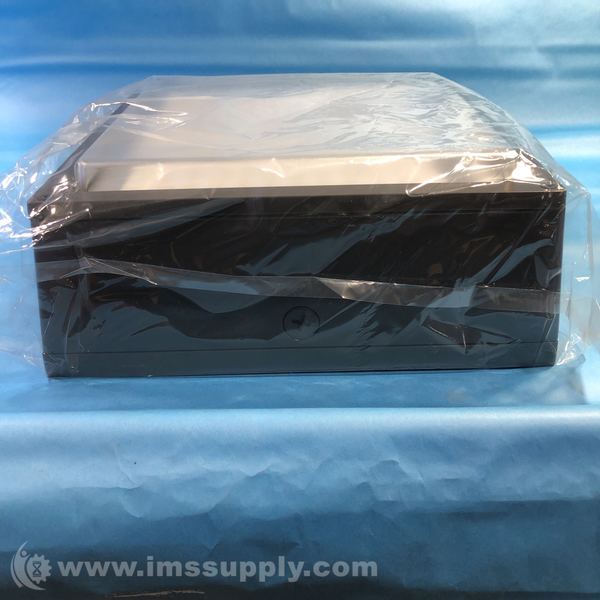

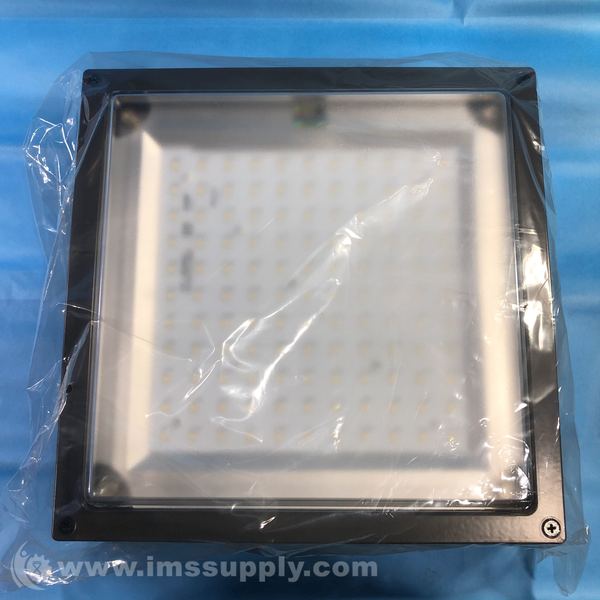

Vandal resistant LED canopy light with 52W power, 5000K cool white light, and IP66 enclosure rating. Die-cast aluminum housing with bronze finish and vandal-resistant polycarbonate drop lens.
Specifications
- watts: 52W
- color temp: 5000K (Cool)
- lumens: 7822 lm
- efficacy: 145.1
- color accuracy: 84 CRI
- l70 lifespan: 100,000 Hours
- type: Constant Current
- input watts: 53.9W
- weight: 5.7 lbs
- compliance: UL Listed
- ip rating: IP66
- dlc listed: Yes
- driver: Class 2, Constant Current, 120-277V, 50-60Hz
- dimming driver: 0-10V dimming systems
- thd: 3.42% at 120V, 6.21% at 277V
- power factor: 99.66% at 120V, 94.39% at 277V
- maximum ambient temperature: 104F (40C)
- cold weather starting: -40F (-40C)
- lens: Vandal-resistant polycarbonate textured opaque for low glare drop lens
- housing: Die-cast aluminum housing and lens frame
- finish: Environmentally friendly polyester powder coatings
- mounting: Ceiling mount to recessed junction with knockout template or directly to ceiling surface
- lamp type: LED
- lamp wattage: 52 Watt
- lamp/ballast voltage: 120 to 277 Volt AC 50/60 Hertz
- lamp included: Yes
- refractor/lens type: Vandal Resistant Polycarbonate Textured Opaque Drop Lens
- housing material: Die-Cast Aluminum
- size: 11-1/2 Inch Length x 11-1/2 Inch Width x 4-1/3 Inch Height
- approval: UL, DLC
- driver input power rating: 53.9 Watt
- constant current rating: 0.47 Amp at 120 Volt, 0.27 Amp at 208 Volt, 0.24 Amp at 240 Volt, 0.21 Amp at 277 Volt
- driver type: 0 to 10 Volt Dimming
- intensity: 7822 Lumen
- color rendering index: 84
- color temperature: 5000 Kelvin (Cool)
- l70 life in hour: 100000
- material: Semi-Specular Vacuum Metalized Polycarbonate (Reflector), High Temperature Silicone (Gasket)
- ambient temperature rating: 104 Deg F
- total harmonic distortion: 3.42 Percent at 120 Volt, 6.21 Percent at 277 Volt
- enclosure rating: IP66
- application: Wet Location
- applicable standard: ANSI C78.377, IESNA LM-79/80
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 36 minutes.
