RBC SJ7235SS NEEDLE BEARING
Quick Overview
Manufactured By: RBC
Manufacturer Part Number: SJ7235SS
IMS Product Code: 1838847
Packaging: Sold Individually
Description:

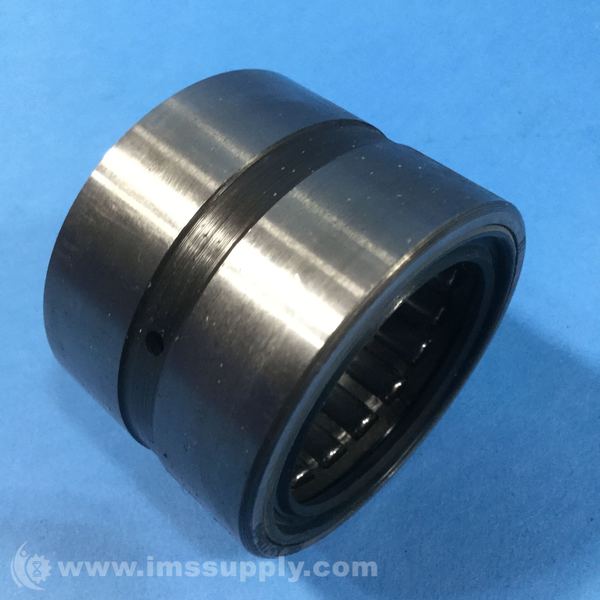

RBC SJ7235SS Needle Bearing
Heavy Duty Pitchlign Needle Roller Bearing, Double Sealed, 52100 Bearing Quality Steel, 1.25 in Bore x 1.75 in OD x 1.25 in Width
Specifications
- Series: Pitchlign
- Material: 52100 Bearing Quality Steel
- Cage Material: Steel
- Enclosure: Double Sealed
- Bore Shape: Round
- Inside Diameter: 1.25 in
- Outside Diameter: 1.75 in
- Overall Width: 1.25 in
- Fillet Radius/Chamfer: 0.040 in
- Lubrication Type: Hole On Outer Ring
- Number of Rows: 1
- Speed [Max]: 3100 rpm
- Operating Temperature [Min]: -40 F
- Operating Temperature Range: -40 to +300 F
- Dynamic Load Rating: 7900 lbf
- Static Load Rating: 14200 lbf
- Weight: 0.38 lb
