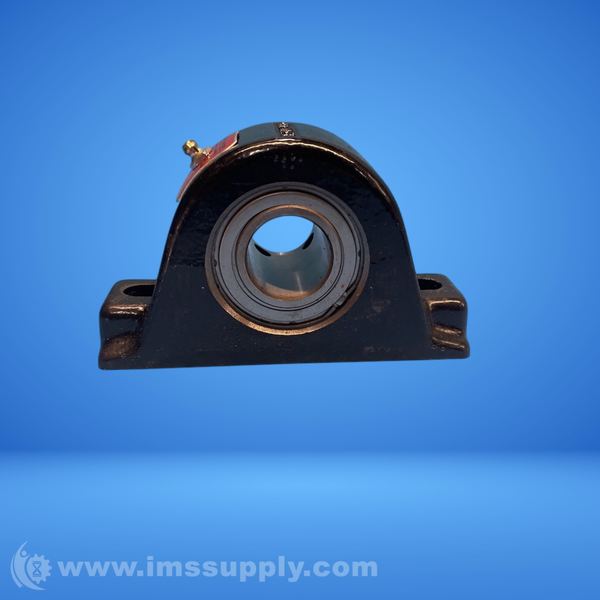

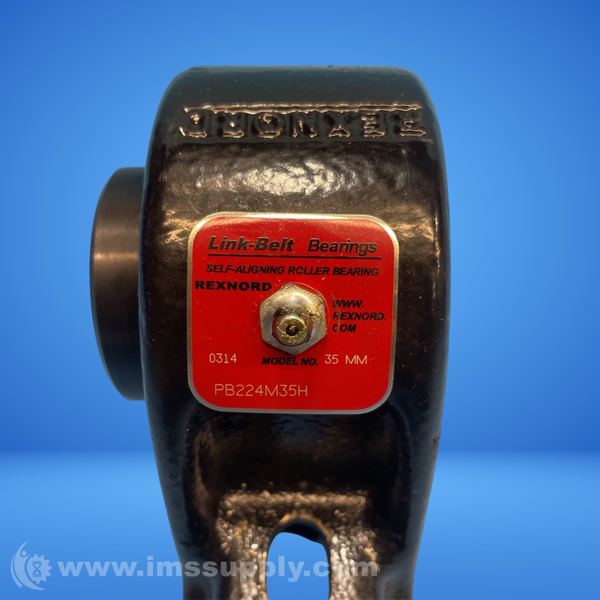

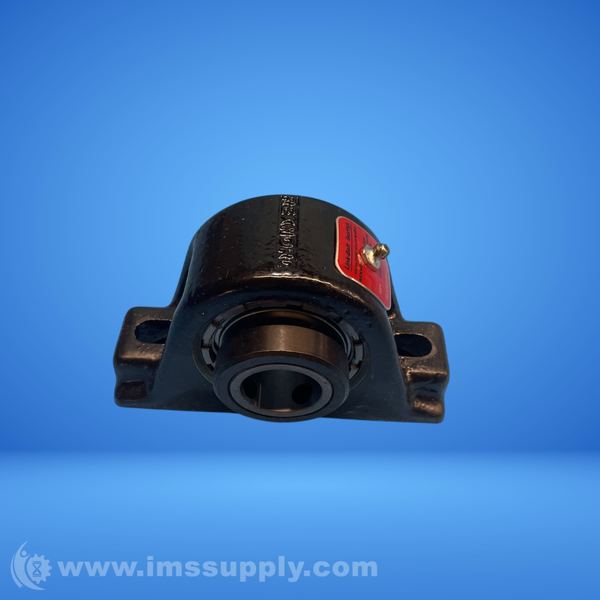

REXNORD PB224M35H 35MM PILLOW BLOCK ROLLER BEARING
Quick Overview
Manufactured By: REXNORD
Manufacturer Part Number: PB224M35H
IMS Product Code: 2153201
Packaging: Sold Individually
Description:
Rexnord PB224M35H 35mm Pillow Block Roller Bearing
35 mm Mounted Spherical Roller Bearing, Cast Iron 2-Bolt Pillow Block, Single Setscrew Locking Collar, Labyrinth Seal
Specifications
- Ability to Relubricate: Yes
- Base Length (in): 6.56
- Base to centerline height (in): 1.875
- Base to centerline height (mm): 47.62 mm
- Base Width (in): 2.25
- Bolt hole spacing (width) (in): 5
- Bolt Size (in): 1/2
- Bolt Size (mm): 35
- Bore length (mm): 73.02 mm
- Cage Material: Steel
- Clearance: C0 standard
- Country of Origin: United States
- Distance between bolt holes (mm): 127 mm
- Distance from Bearing Centerline to Cap Face (mm): 55.6 mm
- Distance from Bearing Centerline to Outer Most Bearing Face (in): 1.78
- Distance from Bearing Centerline to Outer Most Bearing Face (mm): 45.2 mm
- Fixed vs. Expansion: Fixed
- Foot Height (in): 1.19
- Grease Fitting Thread Size: 1/8 NPT
- Height: 2.25
- Housing Cast Face to Outermost Bearing Face (in): 0.66
- Housing coating: Powder coated
- Housing Color: Black
- Housing construction: Solid
- Housing material: Cast iron
- Housing style: Pillow block
- Housing type: Pillow Block, Two Bolt
- Inner Ring Outside Diameter (in): 1.745
- Insert: B4M35L
- Length: 5.75
- Length Through Bore (in): 2.88
- Locking collar outside diameter (in): 2.31
- Locking collar outside diameter (mm): 58.7 mm
- Locking Type: Single Set Collar
- Lubricant: Lithium Complex NLGI 2 Grease
- Lubrication type: EXXON RONEX MP STD
- Maximum Speed (RPM): 3600 rpm
- Maximum Temperature (C): 107 C
- Maximum Temperature (F): 225 F
- Misalignment Capability: ±2.0° Misalignment - Dynamic
- Misalignment Type: Dynamic
- Mounting bolt hole slot length (mm): 20.6 mm
- Mounting bolt size (mm): 12 mm
- Mounting pad height (mm): 30.2 mm
- Mounting pad length (mm): 166.69 mm
- Mounting pad width (mm): 57.2 mm
- Primary seal: Steel clearance seal
- Radial Dynamic Load Capacity (lb): 17800 lb
- Radial Static Load Capacity (lb): 20900 lb
- Retainer material: Steel
- Rolling element: Spherical Roller
- Seal type: Labyrinth Seal
- Setscrew torque (in-lbs): 325 in/lbs
- Size code: B424
- Slot Length (in): 0.81
- Unit of dimension: in
- Vibration frequency fundamental train: 0.0070 cps
- Vibration frequency inner ring defect: 0.1445 cps
- Vibration frequency outer ring defect: 0.1055 cps
- Vibration frequency roller spin: 0.0499 cps
- Volume: 0.322
- Volume unit: GLL
- Weight: 3.00 LBS
- Width: 5.75
