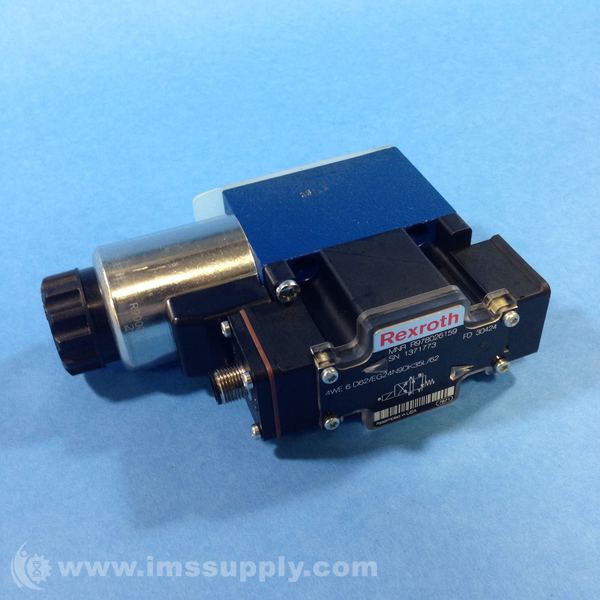

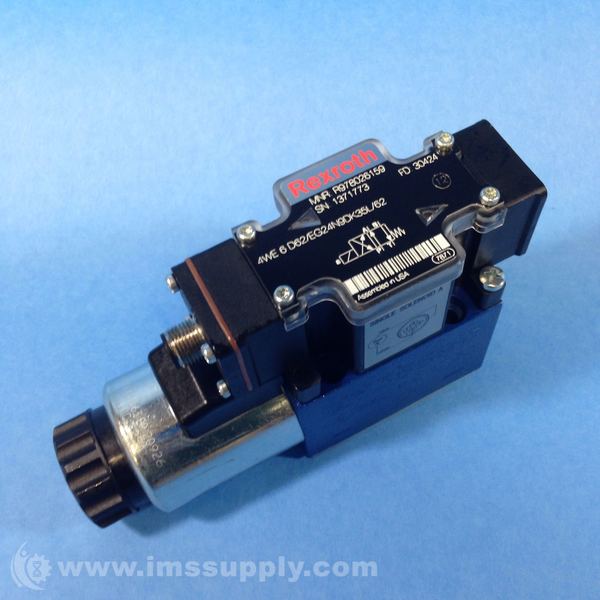

REXROTH 4WE 6 D62/EG24N9DK35L/62 DIRECTIONAL SOLENOID VALVE
Quick Overview
Manufactured By: REXROTH
Manufacturer Part Number: 4WE 6 D62/EG24N9DK35L/62
IMS Product Code: 1735453
Packaging: Sold Individually
Description:
Rexroth 4WE 6 D62/EG24N9DK35L/62 Directional Solenoid Valve
Specifications:
- Installation: Optional
- Ambient temperature: °C (°F)
- Optional: –30 to +50 (–22 to +122) – NBR seals
- Optional: –20 to +50 (–4 to +122) – FKM seals
- Weight: Valve with 1 solenoid kg (lbs.)
- Optional: 1.45 (3.2)
- Valve with 2 solenoids: kg (lbs.)
- Optional: 1.95 (4.3)
- Max. operating pressure: Ports A, B, P bar (PSI),
- Optional: 350 (5100)
- Max. operating pressure: Ports T bar (PSI)
- Optional: 210 (3050) – DC; 160 (2320) – AC
- With symbols A and B, port T must be used as a drain port if
- the operating pressure is above the permitted tank pressure.
- Max. flow: L/min (GPM)
- Optional: 80 (21) – DC; 60 (15.8) – AC
- Flow cross-section (switched position 0): For symbol Q mm2 (in2)
- Optional: Approx. 6% of the nominal cross-section
- Flow cross-section (switched position 0): For symbol W mm2 (in2)
- Optional: Approx. 3% of the nominal cross-section
- Pressure fluid: Mineral oil (HL, HLP) to DIN 51524 1); Fast bio-degradable pressure fluids to VDMA 24568
- (also see RE 90221); HETG (rape seed oil) 1); HEPG (polyglycols) 2); HEES (synthetic ester) 2); Other pressure fluids on request
- Pressure fluid temperature range: °C °F)
- Optional: –30 to +80 (–22 to +176) – NBR seals
- Optional: –20 to +80 (–4 to +176) – FKM seals
- iscosity range: mm2/s (SUS)
- Optional: 2.8 to 500 (35 to 2320)
- ISO code cleanliness class: Maximum permissible degree of contamination of fluid to ISO 4406 (c) class 20/18/15
- Voltage type: DC / AC 50/60 Hz
- Available voltages 4)(for ordering details of AC solenoids see below)V:
- DC: 12, 24, 96, 205
- AC: 110, 230
- Voltage tolerance (nominal voltage)%:
- DC: ± 10
- AC: ± 10
- Power consumption W:
- DC: 30
- AC: —
- Holding power VA:
- DC: —
- AC: 50
- Switch-on power VA:
- DC: —
- AC: 220
- Duty:
- DC: Continuous
- AC: Continuous
- Switching time to ISO 6403:
- ON ms: DC:25 to 45, AC:10 to 20
- OFF ms: DC: 10 to 2, AC: 15 to 40
- Switching frequencies Cycles/h:
- DC: UP to 15000
- AC: UP to 7200
- Protection to DIN EN 60529 5):
- DC: IP 65
- AC: IP 65
- Max. coil temperature 6) °C (°F):
- DC: 150 (302)
- AC: 180 (356)
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
