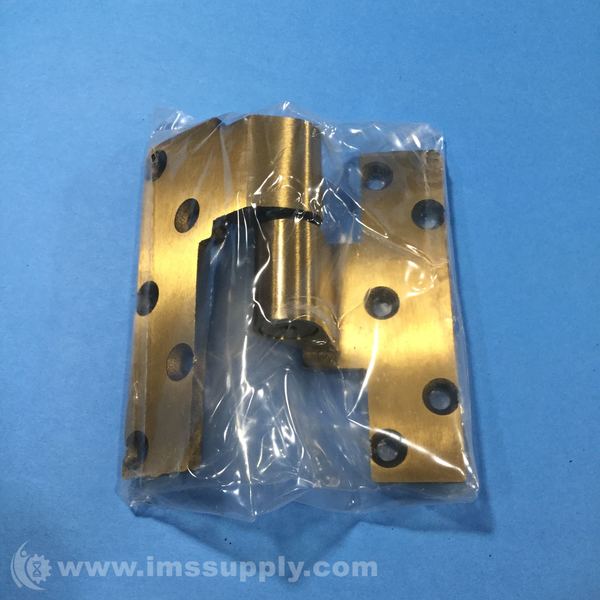

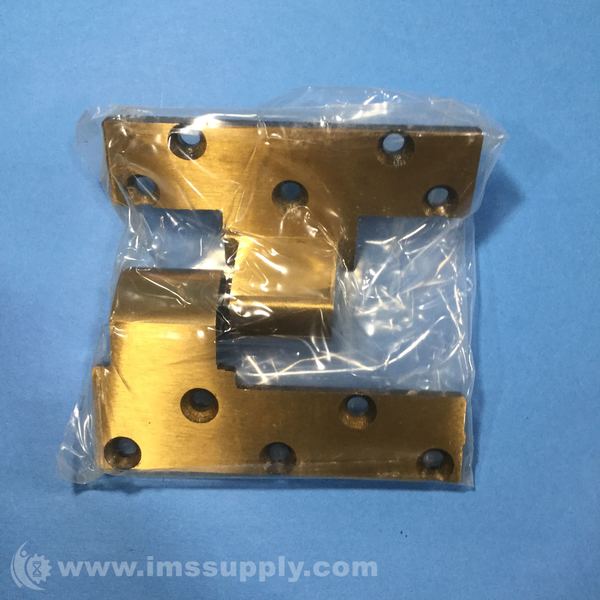

RIXSON ML19 612 SATIN BRONZE FINISH OFFSET INTERMEDIATE PIVOT SET
Quick Overview
Manufactured By: RIXSON
Manufacturer Part Number: ML19 612
IMS Product Code: 1833420
Packaging: Sold Individually
Description:
Rixson ML19 612 Satin Bronze Finish Offset Intermediate Pivot Set
- Screw Holes Spaced To Straddle Lead Lining In Center Of Door. Also Use On Extra Heavy Or High Traffic Door
- Load-bearing
- Maintains Door Alignment
- Aids In Installing Closers And Pivots
- For 20-minute Label Suffix “–20” To The Part Number
- Available To Accommodate Door Thicknesses 1-3/4" (44mm), 2" (51mm), 2-1/4" (57mm), 2-1/2" (64mm), Or 3" (76mm) – Specify Thickness When Ordering
- Non-ferrous Base Material
- Available For Fire Door Assemblies – 1-3/4" (44mm) Door Only – Specify Fml19
- Doors 60" (1524mm) To 90" (2286mm) In Height Should Use One Intermediate Pivot. Each Additional 30" (762mm) Warrants Another Intermediate Pivot
- Door Edges Must Be Beveled In 1/8" In 2"

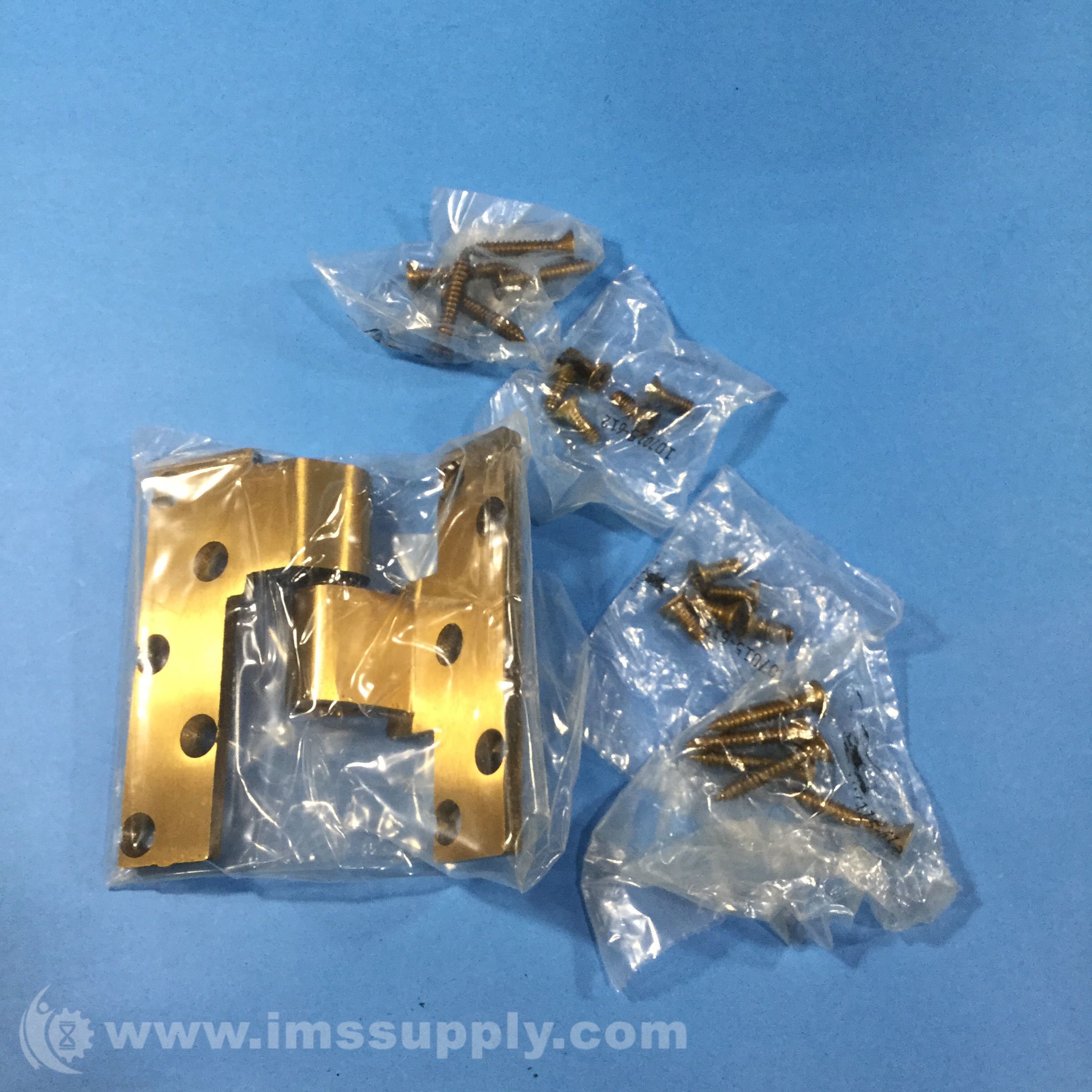

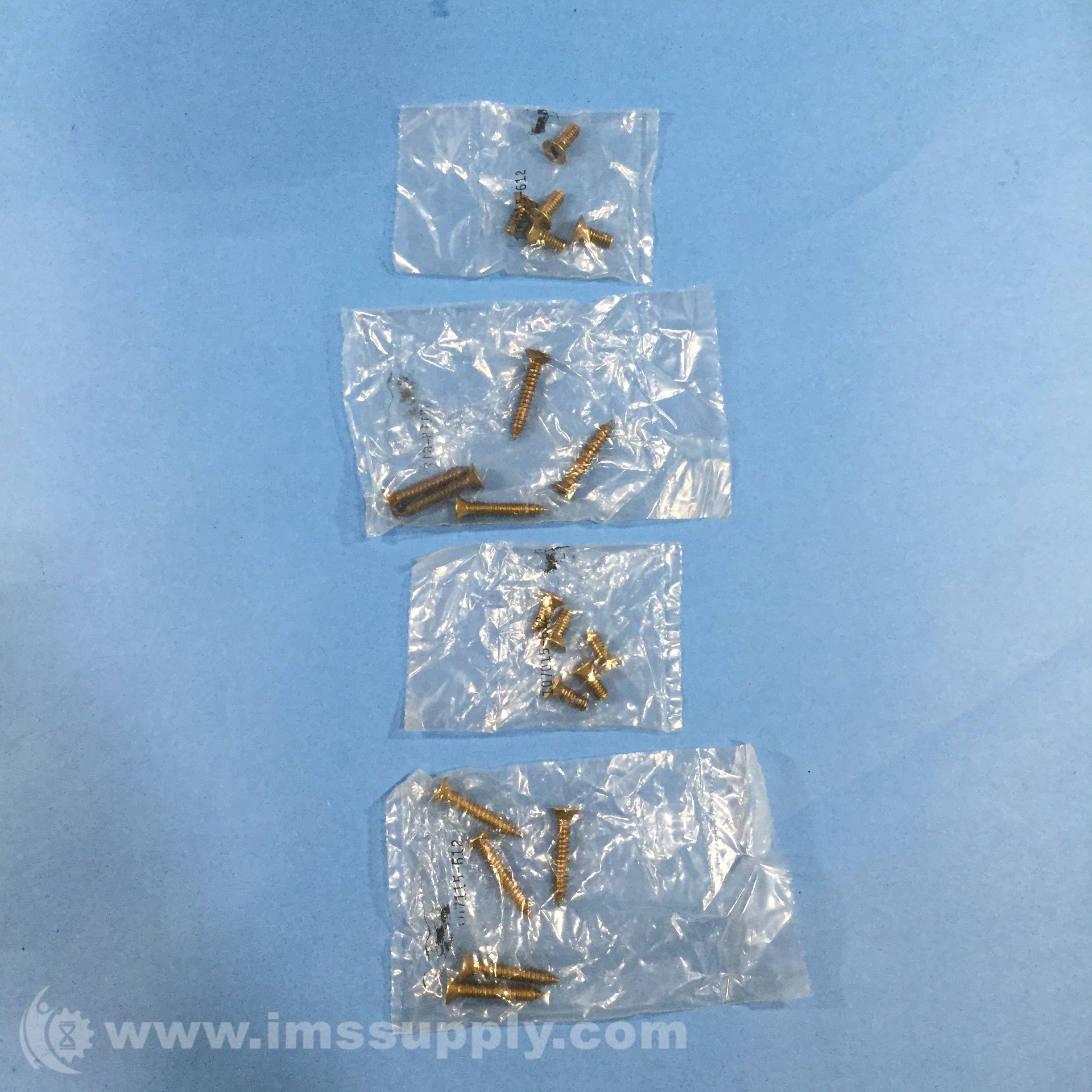

- Furnished With Wood And Machine Screws
