ROSS CONTROLS Y1523B4102 MANUAL LOCKOUT VALVE
Quick Overview
Manufactured By: ROSS CONTROLS
Manufacturer Part Number: Y1523B4102
IMS Product Code: 1800647
Packaging: Sold Individually
Description:

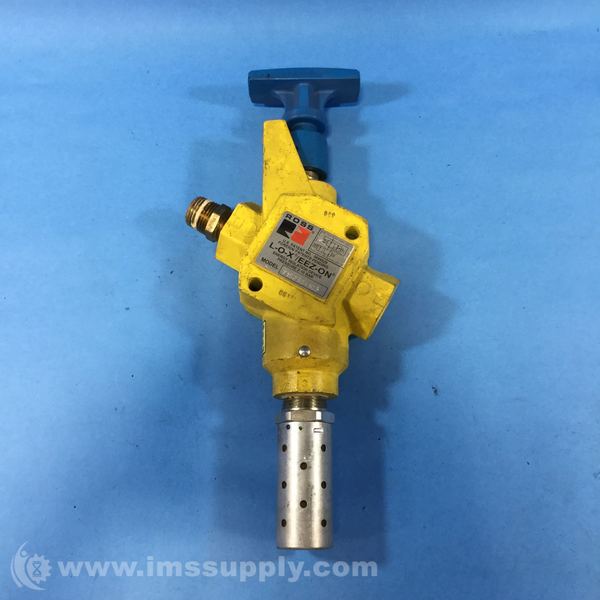

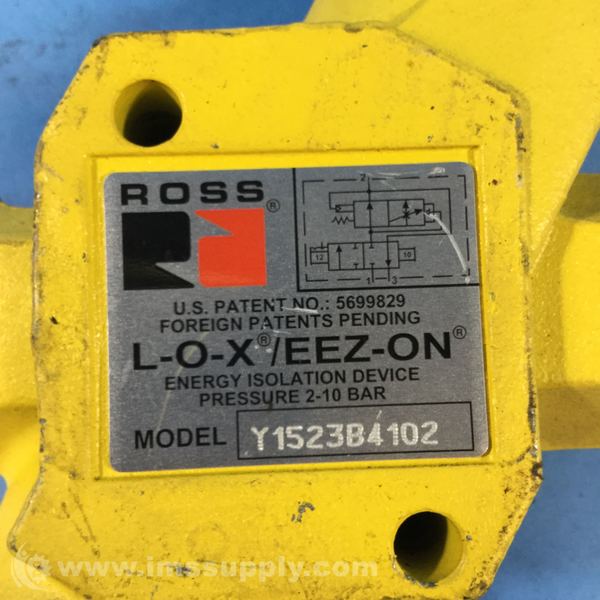

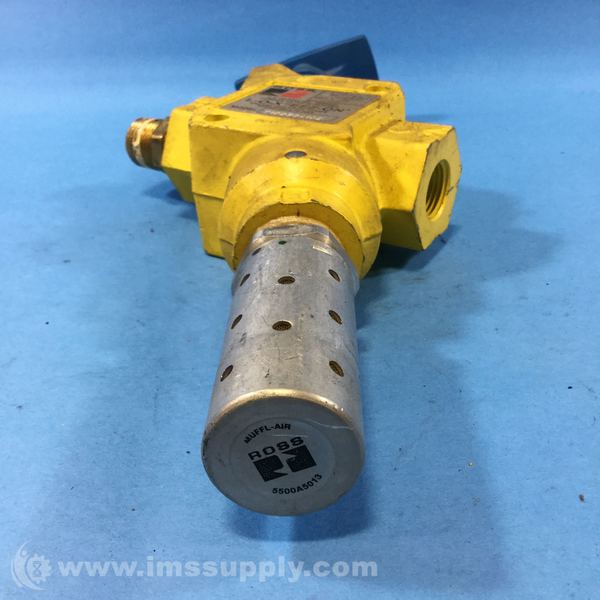

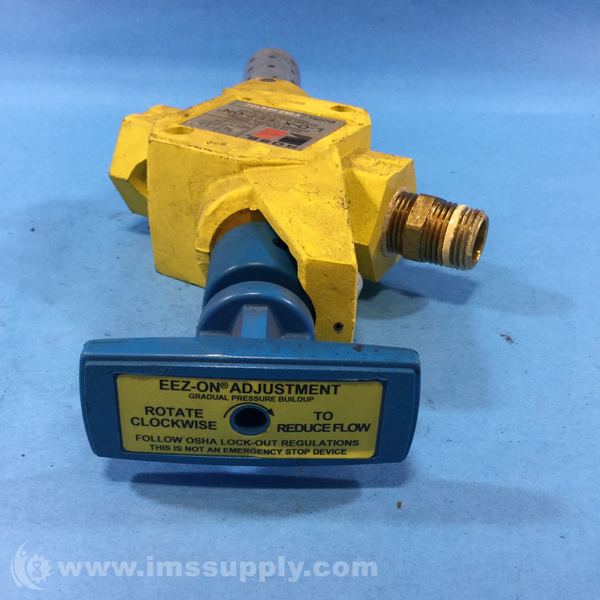

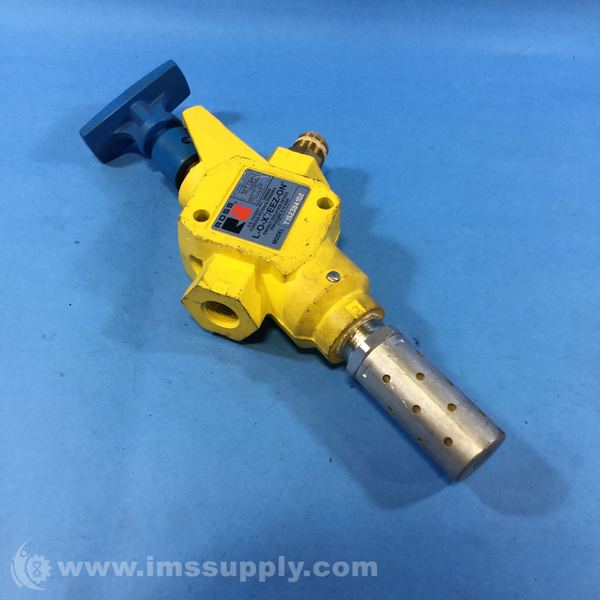

Ross Controls Y1523B4102 Manual Lockout Valve
Manual pneumatic lockout valve with soft start function, 1/2" NPT ports, cast aluminum body, stainless steel spool, and fluorocarbon seals. Gradual re-application of pneumatic pressure prevents rapid equipment movement at startup. Includes integrated sensing port for pressure verification.
Specifications
- Series: 15 Series Classic
- Actuation: Manual
- Function: 3/2
- Soft Start: Included
- Construction: Spool
- Mounting: In-line
- Thread Type: NPT
- Inlet Size: 1/2"
- Outlet Size: 1/2"
- Exhaust Size: 3/4"
- Body Size: 1/2"
- Length: 4.24 in (108 mm)
- Width: 2.0 in (51 mm)
- Height: 8.96 in (228 mm)
- Weight: 1.5 lbs (0.68 kg)
- Ambient Temperature: 40 to 175 F (4 to 80 C)
- Media Temperature: 40 to 175 F (4 to 80 C)
- Fluid Media: Filtered Air
- Operating Pressure: 0 to 150 psig (0 to 10 bar)
- Valve Body Material: Cast Aluminum
- Poppet/Spool Material: Stainless Steel
- Seal Material: Fluorocarbon
- Safety Category: Category 1
- PL Rating: PL c
- Ports 1-2 Flow: 4.9 Cv (4800 Nl/min)
- Ports 2-3 Flow: 3.5 Cv (3400 Nl/min)
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
