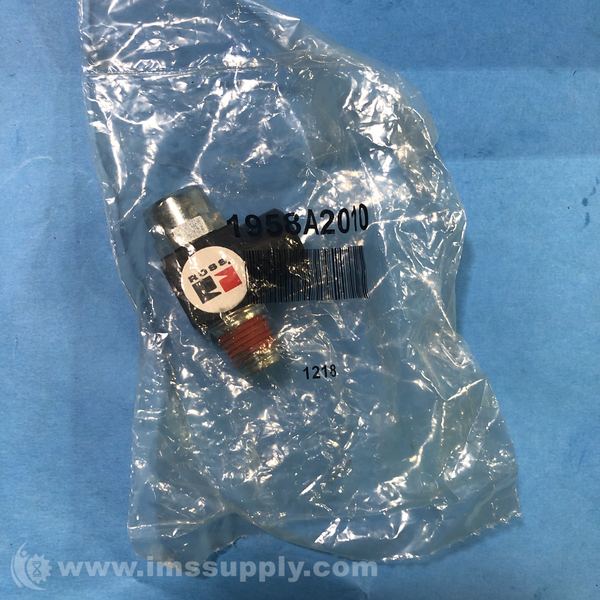

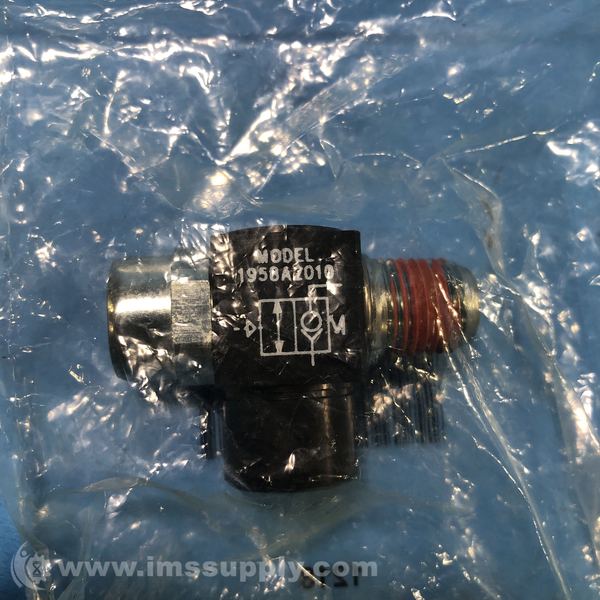

ROSS 1958A2010 2/2 PNEUMATIC PO CHECK VALVE
Quick Overview
Manufactured By: ROSS
Manufacturer Part Number: 1958A2010
IMS Product Code: 1912587
Packaging: Sold Individually
Description:
Ross 1958A2010 2/2 Pneumatic PO Check Valve
Right-angle design for easy positioning of pipe or tubing. With threaded banjo or push-to-connect fitting. Lube or non-lube operation.
Specifications
- Series: 19
- Construction: Poppet
- Ports 1-2 Flow: 0.8 Cv (787 Nl/min)
- Ports 2-1 Flow: 0.7 Cv (689 Nl/min)
- Length: 1.9 in (48 mm)
- Width: 0.7 in (17 mm)
- Valve Function: 2/2 Pneumatic PO Check
- Default: Normally Closed
- Actuation: Manual
- Pilot Type: Air
- Pressure Release Type: Manual
- Port 1 Size: 1/4"
- Port 2 Size: 1/4"
- Thread Type: NPT
- Mounting: Inline
- Ambient Temperature Range: 15 to 160 F (-10 to 70 C)
- Media Temperature Range: 15 to 160 F (-10 to 70 C)
- Flow Media: Filtered Air
- Operating Pressure: 5 to 150 psig (0.3 to 10 bar)
- Valve Body Material: Nickel Plated Brass and Anodized Aluminum
- Poppet Material: Acetal and Stainless Steel
- Seal Material: Buna-N & Fluorocarbon
