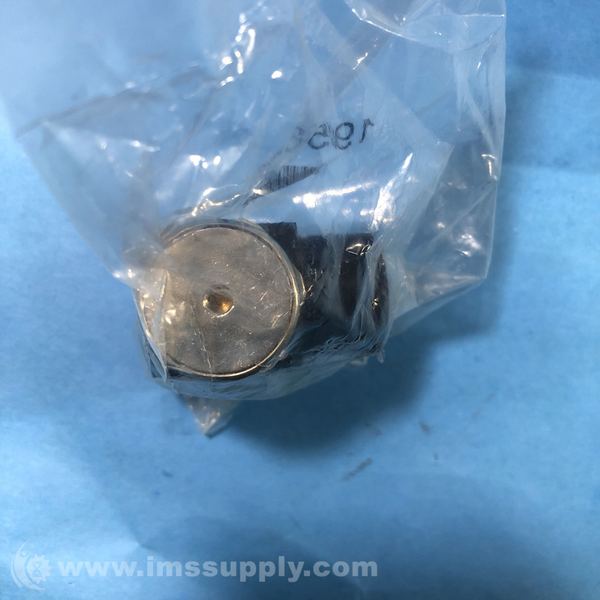

ROSS 1958A4010 2/2 PNEUMATIC PO CHECK VALVE
Quick Overview
Manufactured By: ROSS
Manufacturer Part Number: 1958A4010
IMS Product Code: 1912589
Packaging: Sold Individually
Description:
Ross 1958A4010 2/2 Pneumatic PO Check Valve
Poppet construction, 2/2 pneumatic pilot operated check valve with 1/2" NPT ports. Right-angle design for easy positioning of pipe or tubing.
Specifications
- Series: 19
- Construction: Poppet
- Ports 1-2 Flow: 2.3 Cv (2263 Nl/min)
- Ports 2-1 Flow: 2.2 Cv (2165 Nl/min)
- Length: 2.6 in (66 mm)
- Width: 1.1 in (27 mm)
- Valve Function: 2/2 Pneumatic PO Check
- Default: Normally Closed
- Actuation: Manual
- Pilot Type: Air
- Pressure Release Type: Manual
- Port 1 Size: 1/2"
- Port 2 Size: 1/2"
- Thread Type: NPT
- Mounting: Inline
- Ambient Temperature Range: 15 to 160 F (-10 to 70 C)
- Media Temperature Range: 15 to 160 F (-10 to 70 C)
- Flow Media: Filtered Air
- Operating Pressure: 5 to 150 psig (0.3 to 10 bar)
- Valve Body Material: Nickel Plated Brass and Anodized Aluminum
- Poppet Material: Acetal and Stainless Steel
- Seal Material: Buna-N & Fluorocarbon
- Safety Category: Category 1
- PL Rating: PL c
- Safety Integrity Level: SIL 2
- EAC Declaration: Yes
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 21 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 21 minutes.
