ROSS 1968B3007 FLOW CONTROL VALVE
Quick Overview
Manufactured By: ROSS
Manufacturer Part Number: 1968B3007
IMS Product Code: 2148748
Packaging: Sold Individually
Description:

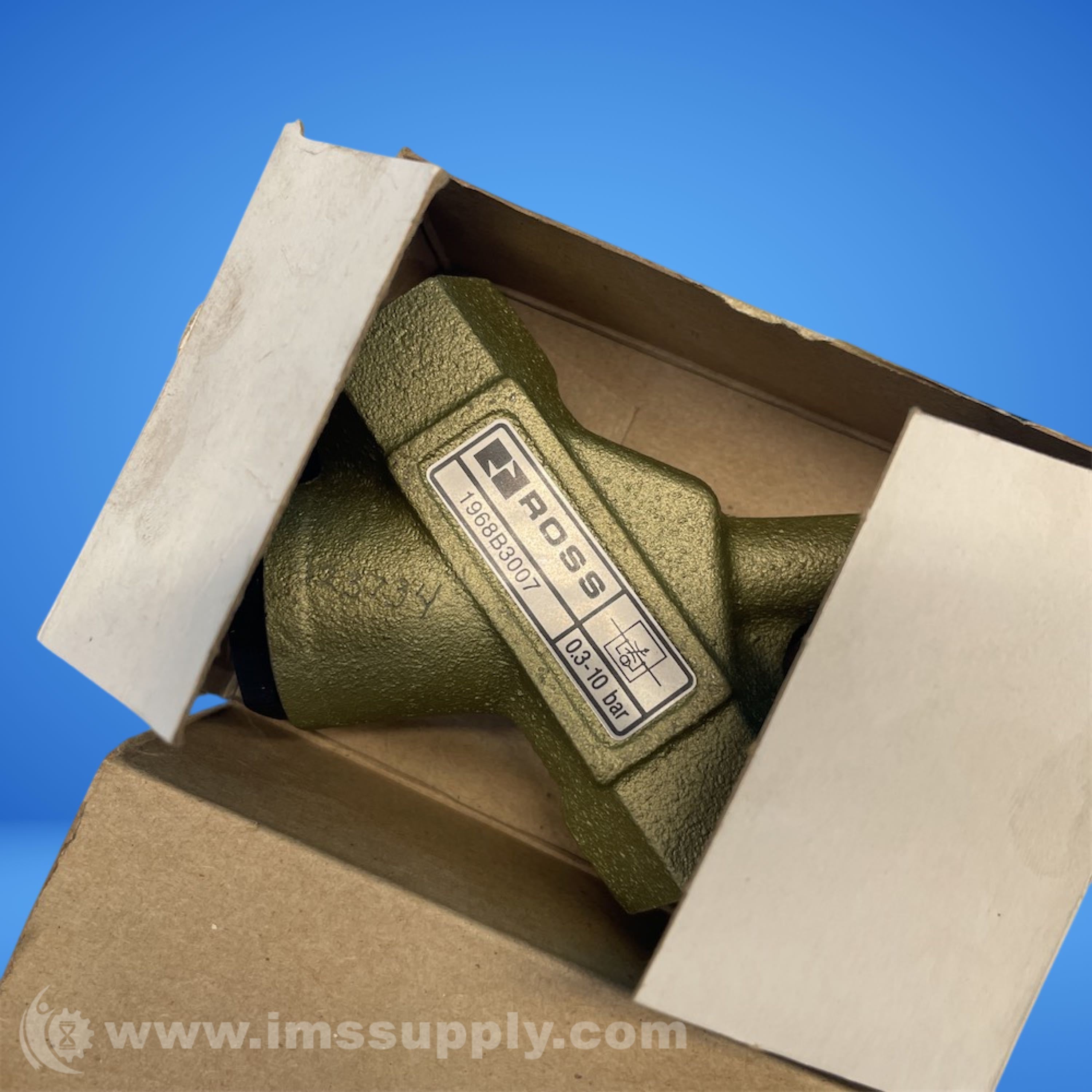

Ross 1968B3007 Flow Control Valve
Pneumatic flow control valve with 3/8" NPT ports, cast aluminum body, and knob adjustment.
Specifications
- Valve Type: Flow Control Valve
- Series: 19
- Application: High Capacity
- Actuation: Pneumatic
- Function: 2/2
- Thread Type: NPT
- Inlet Pipe Size: 3/8"
- Outlet Pipe Size: 3/8"
- Construction: Poppet
- Mounting: Inline
- Avg Cv: 2.6
- Ambient Temperature: -40 to 175 F (-40 to 80 C)
- Media Temperature: -40 to 175 F (-40 to 80 C)
- Fluid Media: Filtered Air
- Operating Pressure: 5 to 150 psig (0.3 to 10 bar)
- Length: 2.81 in (71 mm)
- Width: 1.31 in (33 mm)
- Height: 5.19 in (132 mm)
- Weight: 0.5 lb (0.2 kg)
- Valve Body Material: Cast Aluminum
- Adjustment: Knob
- Profile: Offset
