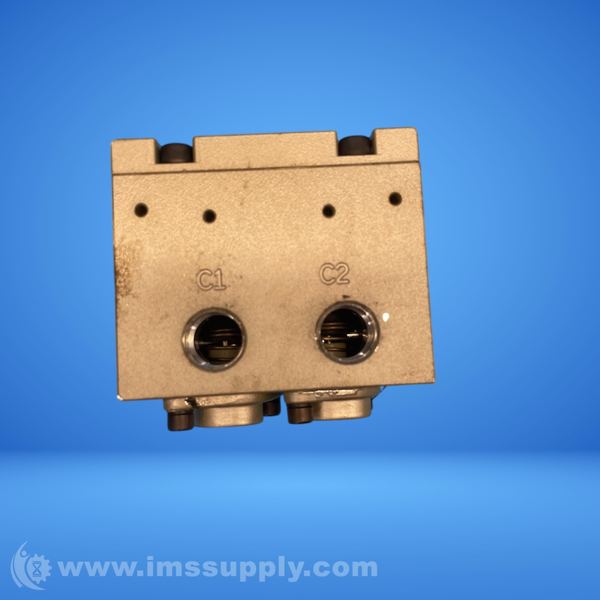

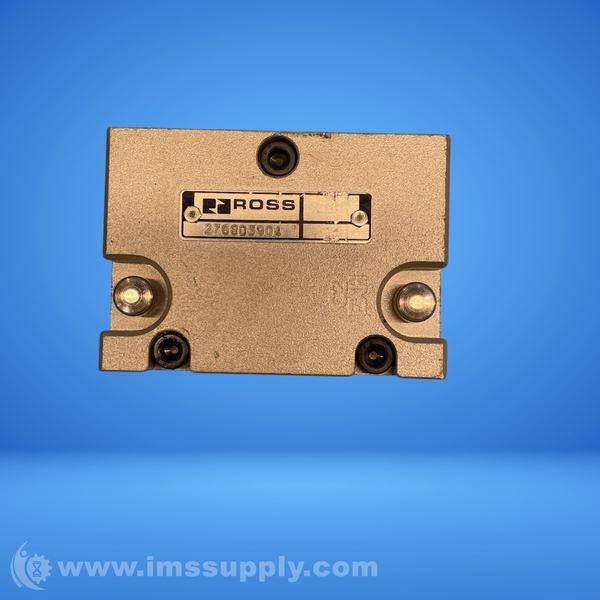

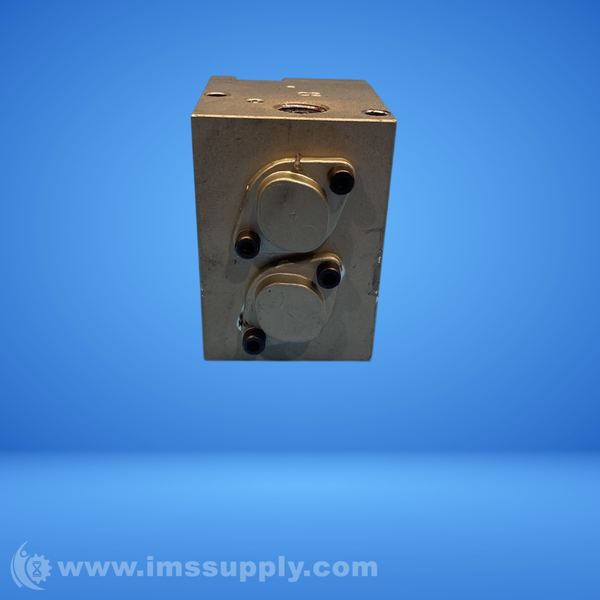

ROSS 2768D3904 PO CHECK VALVE
Quick Overview
Manufactured By: ROSS
Manufacturer Part Number: 2768D3904
IMS Product Code: 2173989
Packaging: Sold Individually
Description:
Ross 2768D3904 PO Check Valve
Poppet construction for near zero leakage. Manual or remote trapped pressure release when pressure is removed from the Blowdown Signal Port (BP). Inline mounting.
Specifications
- Series: 27
- Construction: Poppet
- Ports 1-2 Flow: 2.9 Cv (2854 Nl/min)
- Length: 3.38 in (85.9 mm)
- Width: 2.38 in (60.5 mm)
- Height: 3.11 in (78.9 mm)
- Weight: 2.3 lb (1.1 kg)
- Valve Function: 2/2 Pneumatic PO Check
- Default: Normally Closed
- Actuation: Pneumatic
- Pressure Release Type: Manual Pressure Relief
- Port 1 Size: 3/8"
- Port 2 Size: 3/8"
- Thread Type: NPT
- Mounting: Inline
- Ambient Temperature Range: 40 to 175 F (4 to 80 C)
- Media Temperature Range: 40 to 175 F (4 to 80 C)
- Flow Media: Filtered Air
- Operating Pressure: 30 to 150 psig (2 to 10 bar)
- Valve Body Material: Cast Aluminum
- Poppet Material: Acetal and Stainless Steel
- Seal Material: Buna-N
- Safety Category: Category 1
- PL Rating: PL c
- Safety Integrity Level: SIL 2

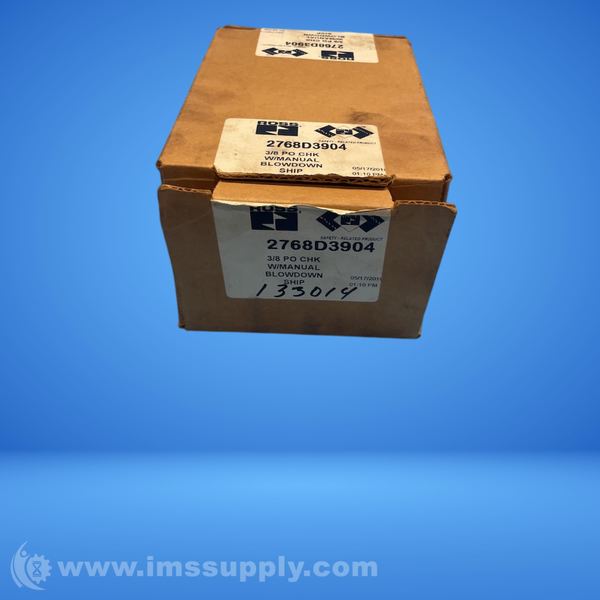

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
