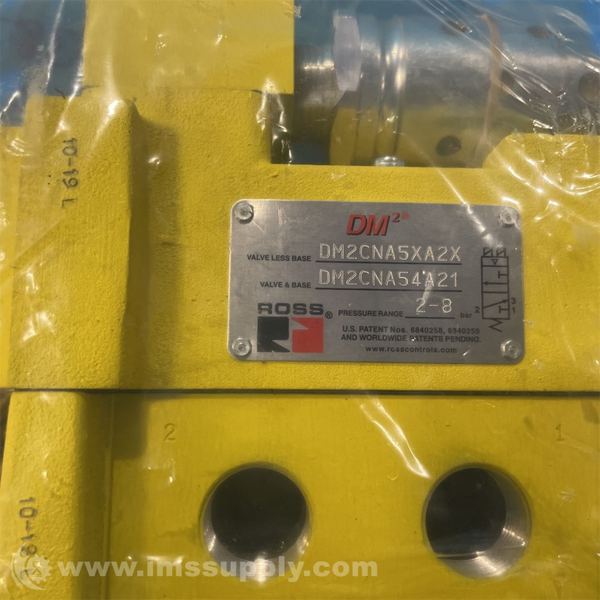

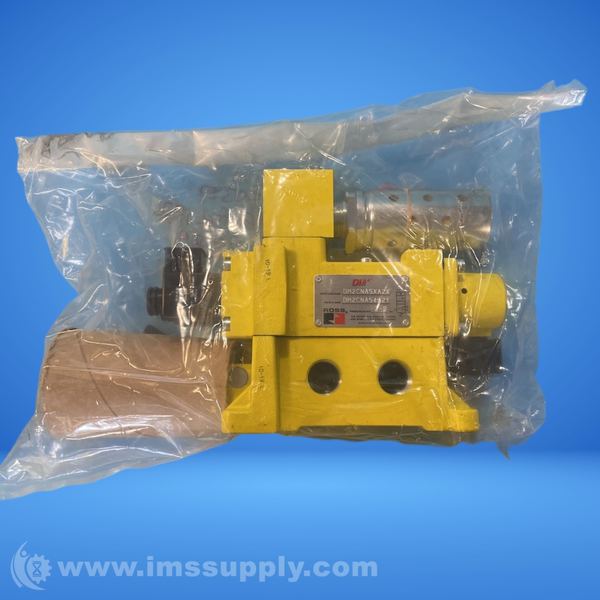

ROSS DM2CNA54A21 REDUNDANT 3/2 SINGLE SOLENOID VALVE
Quick Overview
Manufactured By: ROSS
Manufacturer Part Number: DM2CNA54A21
IMS Product Code: 2143337
Packaging: Sold Individually
Description:
Ross DM2CNA54A21 Redundant 3/2 Single Solenoid Valve
Redundant control can achieve Category 4, PL e, when used with proper safety controls. The valve features dynamic monitoring and air flow control functions integrated into two identical valve elements. It includes a pressure switch with both normally open (NO) and normally closed (NC) contacts for status feedback. The valve is base mounted with inlet and outlet ports on both sides.
Specifications
- Series: DM2C Series
- Valve Function: Redundant 3/2 Single Solenoid
- Construction: Dual Poppet
- Actuation: Electrical
- Voltage: 24 VDC
- Thread Type: NPT
- Inlet Size: 3/4"
- Outlet Size: 3/4"
- Exhaust Size: 3/4"
- Operating Pressure Max: 120 psig (8.3 bar)
- Pilot Supply: Internal
- Height: 12.73 in (323.3 mm)
- Length: 5.41 in (137.4 mm)
- Width: 7.48 in (190 mm)
- Weight: 8.4 lbs (3.7 kg)
- Mounting: Base Mount
- Ambient Temperature: 15 to 122 F (-10 to 50 C)
- Media Temperature: 40 to 175 F (4 to 80 C)
- Flow Media: Filtered, lubricated or unlubricated (mineral oils according to DIN 51519, viscosity classes 32-46)
- Valve Body Material: Cast Aluminum
- Poppet/Spool Material: Acetal and Stainless Steel
- Seal Material: Buna-N
- Safety Category: Category 4
- PL Rating: PL e
- Safety Integrity Level: SIL 3
