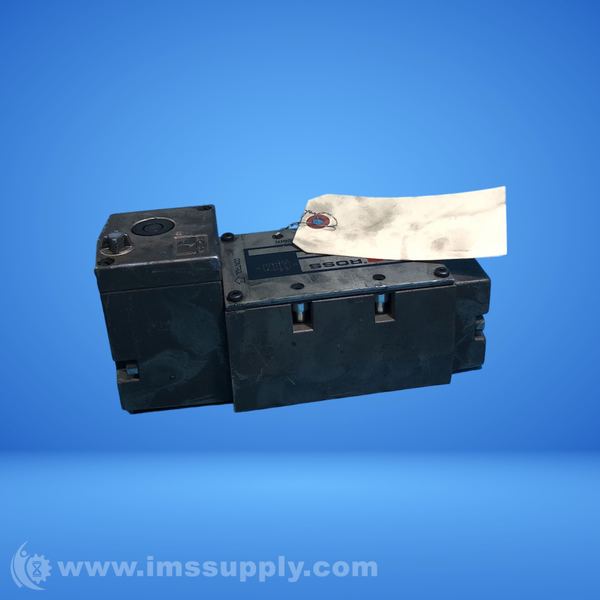

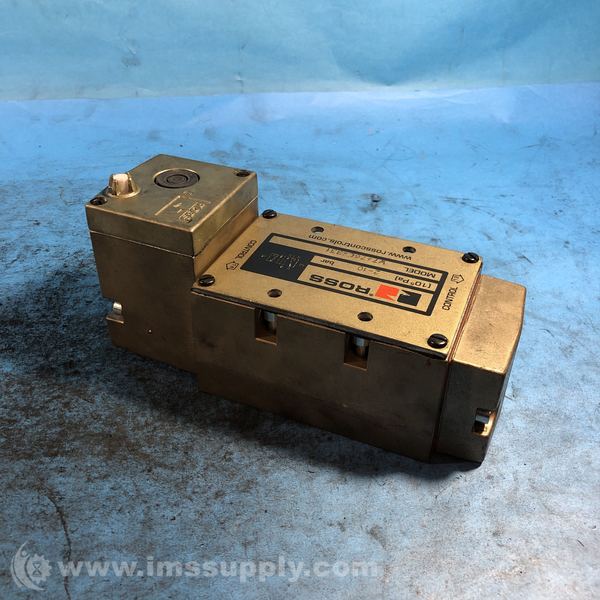

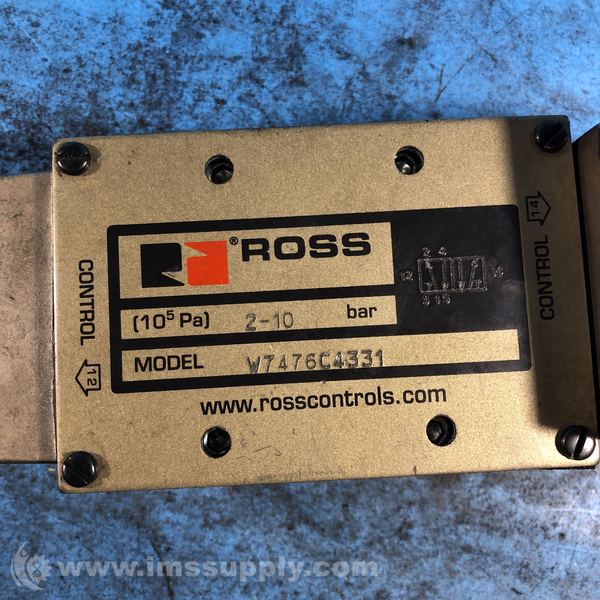

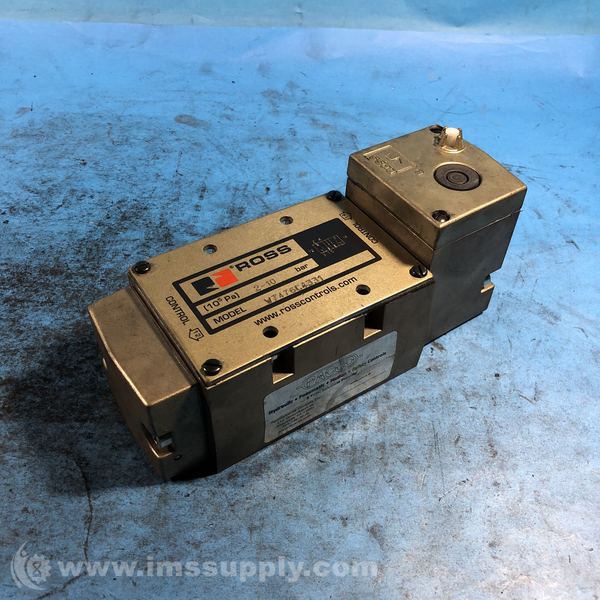

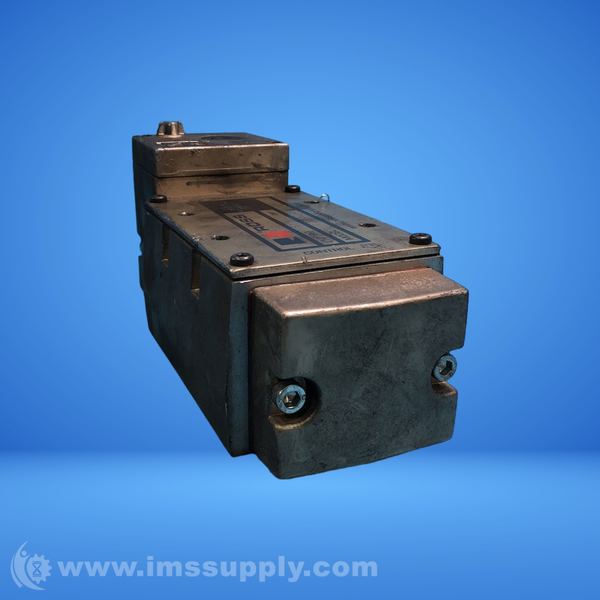

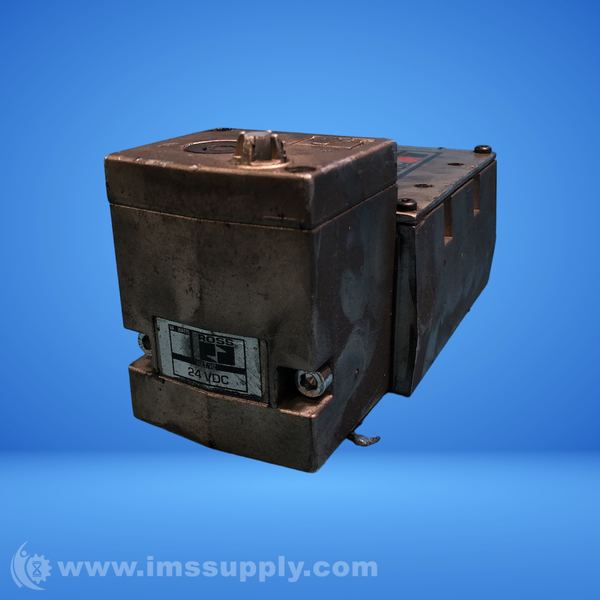

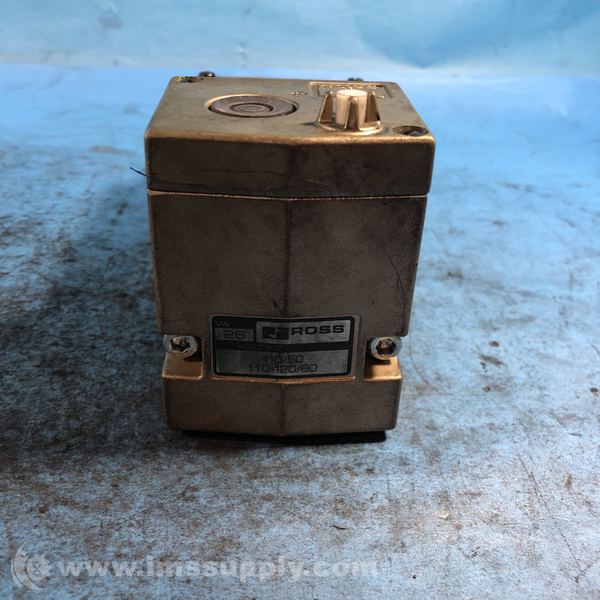

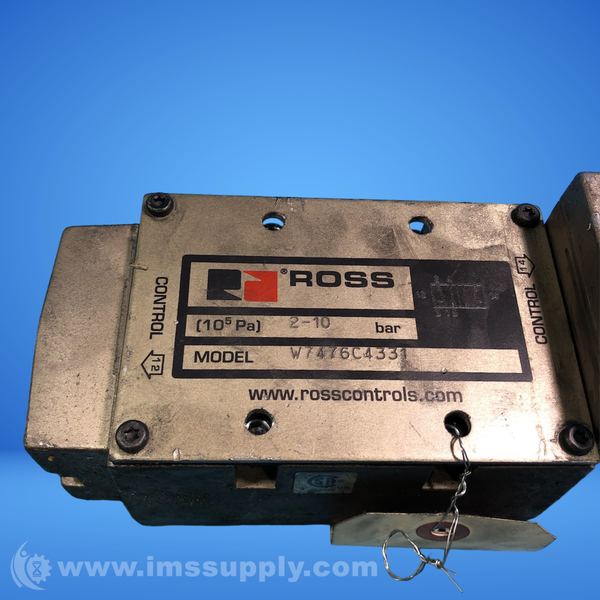

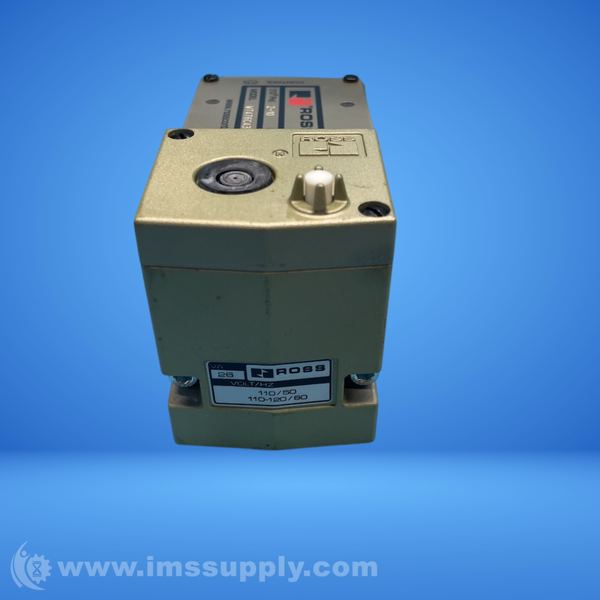

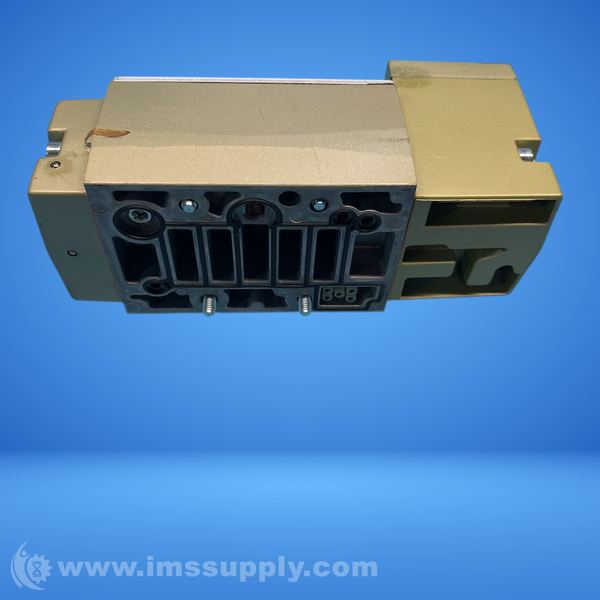

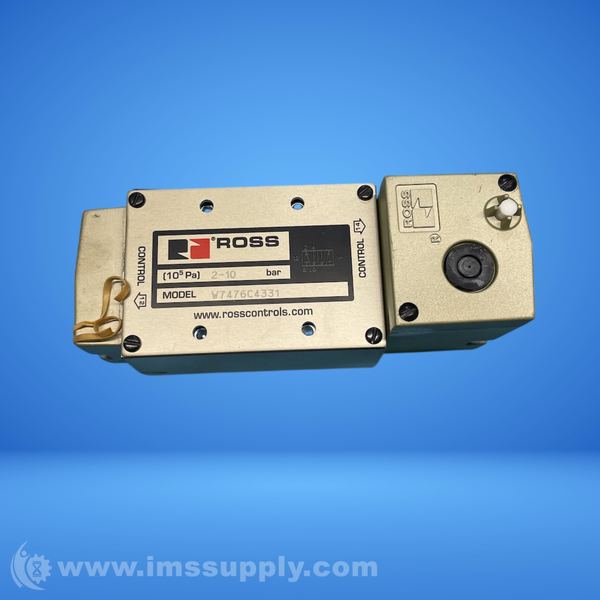

ROSS W7476C4331 5/2-WAY SOLENOID VALVE
Quick Overview
Manufactured By: ROSS
Manufacturer Part Number: W7476C4331
IMS Product Code: 2003925
Packaging: Sold Individually
Description:
Ross W7476C4331 5/2-Way Solenoid Valve
A 5/2-way directional control solenoid valve with electrical actuation and pneumatic return.
Specifications
- Valve Type: Directional Control
- Function: 5/2-Way, Single Solenoid
- Default Position: Normally Open
- Actuation: Electrical
- Return: Pneumatic
- Construction: Poppet
- Mounting: Base Mount
- Connection: Hardwired
- Pilot Type: Internal/External
- Manual Override: Non-locking
- Size: 4
- Avg Cv: 4.2
- Voltage: 24 VDC
- Duty Rating: Continuous Duty
- Power Consumption: 14 watts
- Ambient Temperature: 40 to 120 F (4 to 50 C)
- Media Temperature: 40 to 175 F (4 to 80 C)
- Fluid Media: Filtered air
- Operating Pressure: Vacuum to 150 psig (10 bar)
- Pilot Supply Minimum: Equal to or greater than inlet pressure
- Length: 3.46 in (88 mm)
- Width: 8.32 in (211 mm)
- Height: 3.96 in (101 mm)
- Weight: 5.0 lb (2.3 kg)
- Valve Body Material: Cast Aluminum
- Poppet/Spool Material: Rubber Coated Aluminum & Stainless Steel
- Seal Material: Buna-N
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
