ROSS Y1523B4102 MANUAL LOCKOUT VALVE
Quick Overview
Manufactured By: ROSS
Manufacturer Part Number: Y1523B4102
IMS Product Code: 2132160
Packaging: Sold Individually
Description:
Ross Y1523B4102 Manual Lockout Valve

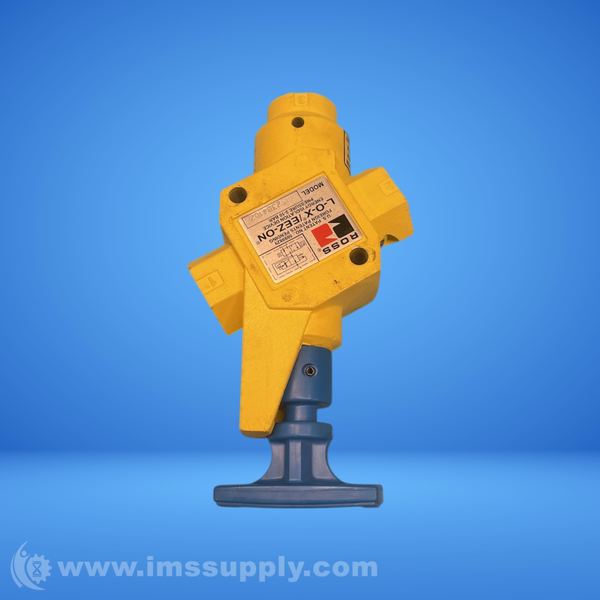

Manual pneumatic lockout valve with soft start function. Yellow body with blue handle for ON/OFF control. Prevents rapid equipment movement at startup. Threaded exhaust ports for silencers or remote exhaust lines. Lockable in OFF position only. Fluorocarbon slipper seals for easy shifting. Integrated sensing port for pressure verification.
Specifications
- Series: 15 Series Classic
- Actuation: Manual
- Function: 3/2
- Soft Start: Included
- Construction: Spool
- Mounting: In-line
- Thread Type: NPT
- Inlet Size: 1/2"
- Outlet Size: 1/2"
- Exhaust Size: 3/4"
- Body Size: 1/2"
- Length: 4.24 in (108 mm)
- Width: 2.0 in (51 mm)
- Height: 8.96 in (228 mm)
- Weight: 2.0
- Ambient Temperature: 40 to 175 F (4 to 80 C)
- Media Temperature: 40 to 175 F (4 to 80 C)
- Fluid Media: Filtered Air
- Operating Pressure: 0 to 150 psig (0 to 10 bar)
- Valve Body Material: Cast Aluminum
- Poppet/Spool Material: Stainless Steel
- Seal Material: Fluorocarbon
- Safety Category: Category 1
- PL Rating: PL c
- Ports 1-2 Flow: 4.9 Cv (4800 Nl/min)
- Ports 2-3 Flow: 3.5 Cv (3400 Nl/min)
- EAC Declaration: Yes
- CSA/UL Certification: No
- CE Certification: No
- DGUV Certification: No

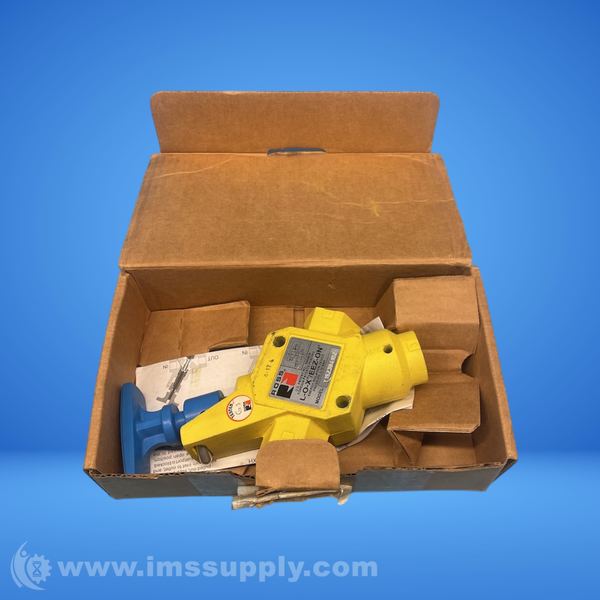

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
