RULAND MTCL-12-1.75-F SHAFT COLLAR
Quick Overview
Manufactured By: RULAND
Manufacturer Part Number: MTCL-12-1.75-F
IMS Product Code: 1800859
Packaging: Sold Individually
Description:

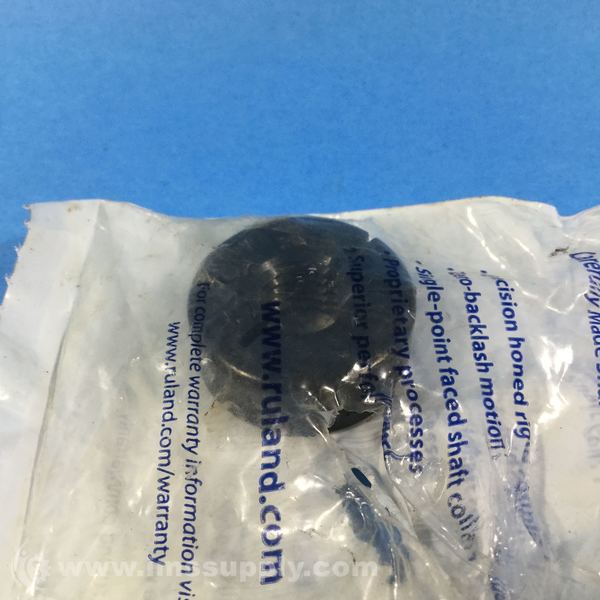

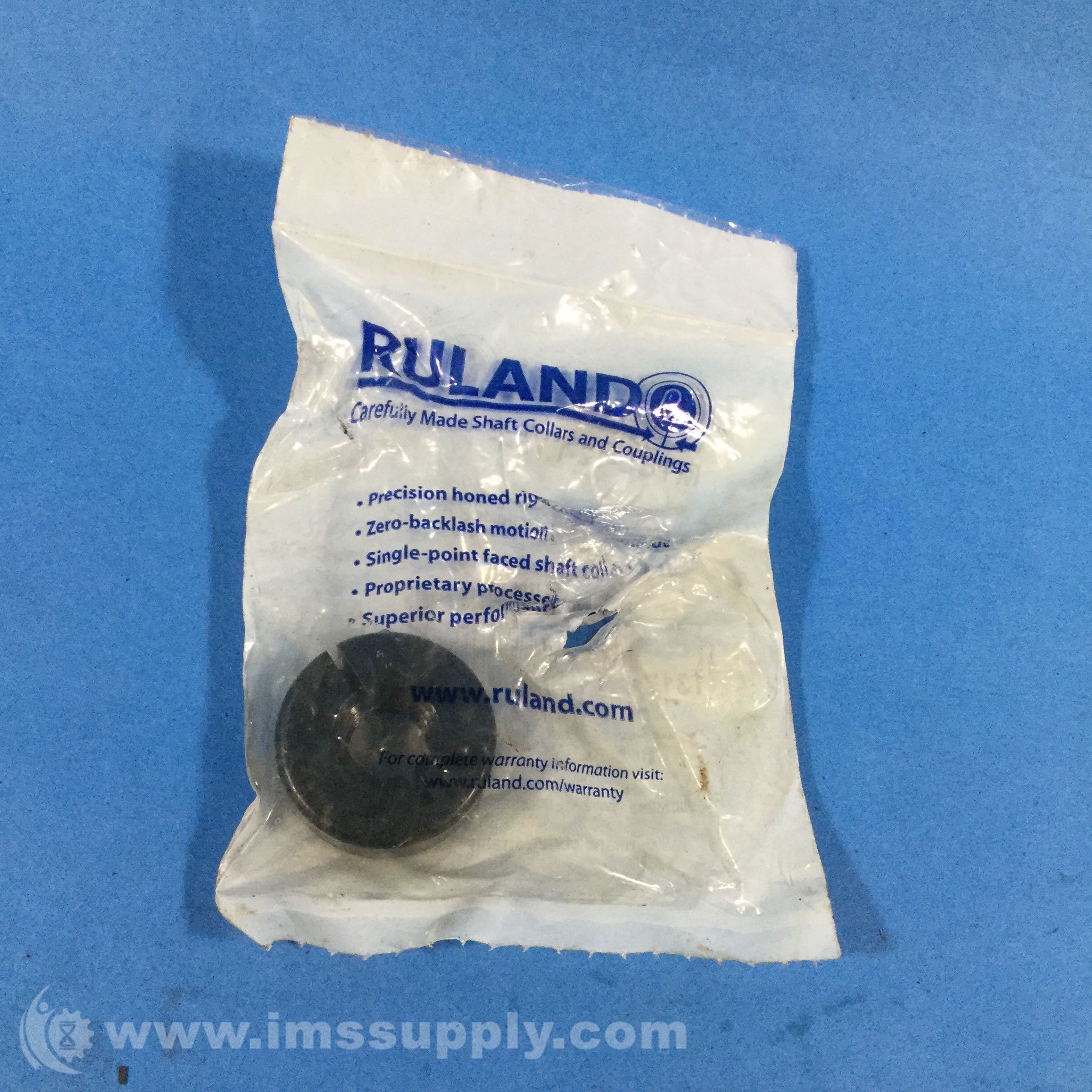

Ruland MTCL-12-1.75-F Shaft Collar
One-piece clamp collar with M12 x 1.75 threaded bore, 28mm OD, 11mm width, made of 1215 carbon steel with black oxide finish
Specifications
- Threaded Bore (B1): M12 x 1.75
- Thread Class: 6H
- Outer Diameter (OD): 28 mm
- Width (W): 11 mm
- Clearance Diameter (C) MAX: 32.0 mm
- Width Tolerance: +0.076 mm / -0.254 mm
- Recommended Shaft Tolerance: +0.000 mm / -0.013 mm
- Fastening Hardware: Forged Clamp Screw
- Screw Material: Alloy Steel
- Hex Wrench Size: 3.0 mm
- Screw Finish: Black Oxide
- Seating Torque: 4.6 Nm
- Screw Location (R): 10.00 mm
- Number of Screws: 1 ea
- Material Specification: 1215 Carbon Steel Bar
- Temperature: -40°F to 350°F (-40°C to 176°C)
- Finish Specification: Hot Process Black Oxide, Impregnated with Naphthenic Oil, Centrifugally Dried
- Construction: One-Piece
- Bore Thread: M12X1.75
- Finish Coating: Black Oxide
- Outside Diameter: 1.1000 in
- Locking Device: Clamp
- Material: 1215 Carbon Steel
- Thread Direction: Right Hand
- Series: MTCL
