RULAND TCL-8-13-F THREADED SHAFT COLLAR
Quick Overview
Manufactured By: RULAND
Manufacturer Part Number: TCL-8-13-F
IMS Product Code: 1792590
Packaging: Sold Individually
Description:

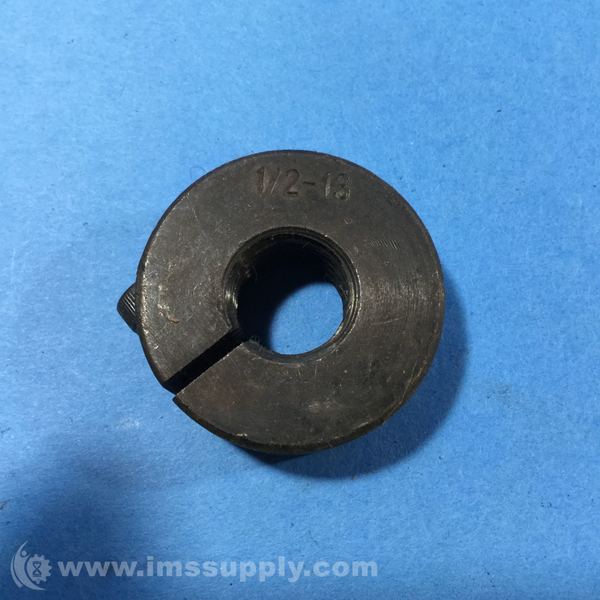

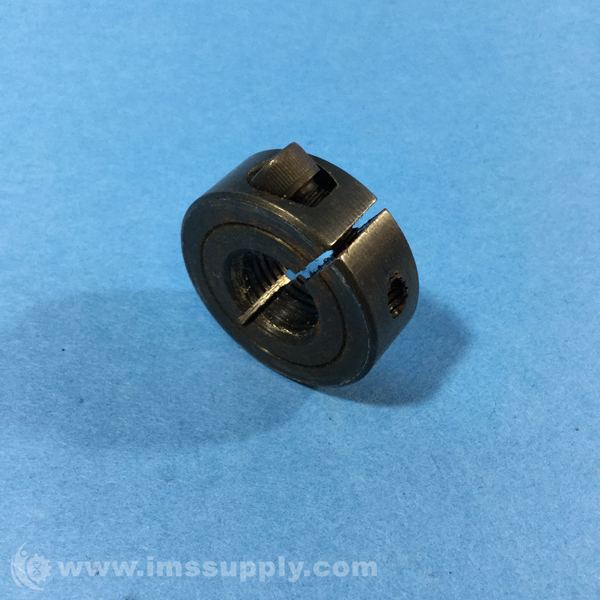

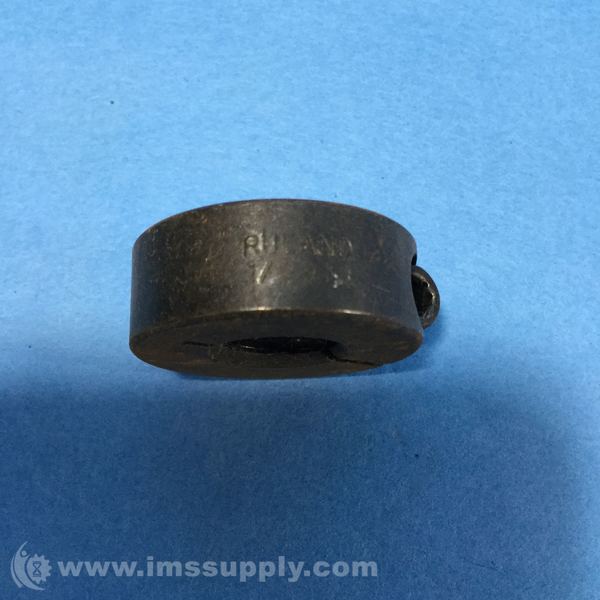

Ruland TCL-8-13-F Threaded Shaft Collar
One-piece clamp style shaft collar with 1/2" - 13 TPI threaded bore, 1 1/8" OD, and 0.406" width, made from black oxide steel.
Specifications
- Threaded Bore (B1): 1/2 in - 13 TPI
- Thread Class: 3B
- Outer Diameter (OD): 1 1/8 in
- Width (W): 0.406 in
- Clearance Diameter (C) MAX: 1.281 in
- Width Tolerance: +0.003 in / -0.010 in
- Recommended Shaft Tolerance: +0.0000 in / -0.0005 in
- Fastening Hardware: Forged Clamp Screw
- Screw Material: Alloy Steel
- Hex Wrench Size: 9/64 in
- Screw Finish: Black Oxide
- Seating Torque: 49 lb-in
- Screw Location (R): 0.406 in
- Number of Screws: 1 ea
- Material Specification: 1215 Carbon Steel Bar
- Temperature: -40°F to 350°F (-40°C to 176°C)
- Finish Specification: Hot Process Black Oxide, Impregnated with Naphthenic Oil, Centrifugally Dried
- Construction: One-Piece
- Bore Thread: 0.5000-13
- Locking Device: Clamp
- Series: TCL
- Shaft Locking Type: 1 Piece Clamp
- Bore Type: Threaded Bore
- Screw Size: #8-32
- Operating Temp. Range: -40 Degrees to 350 Degrees F
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 16 In Stock
