SAB BROCKSKES SD 200 C TP FLEXIBLE DATA CABLE
Quick Overview
Manufactured By: SAB BROCKSKES
Manufacturer Part Number: SD 200 C TP
IMS Product Code: 2163190
Packaging: Sold Individually
Description:

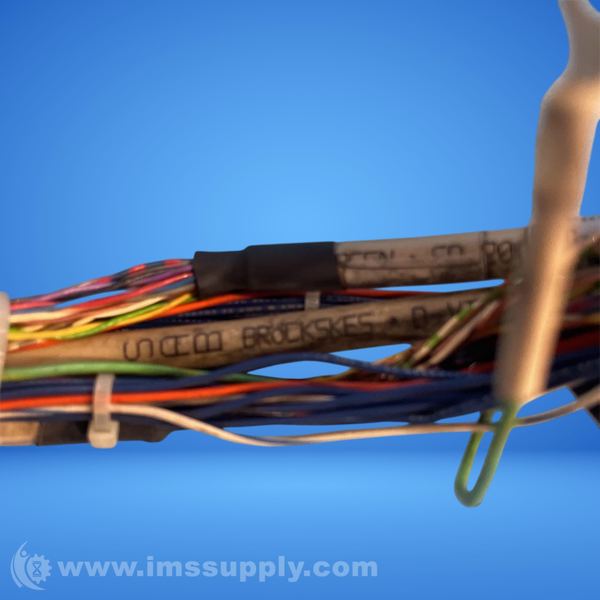

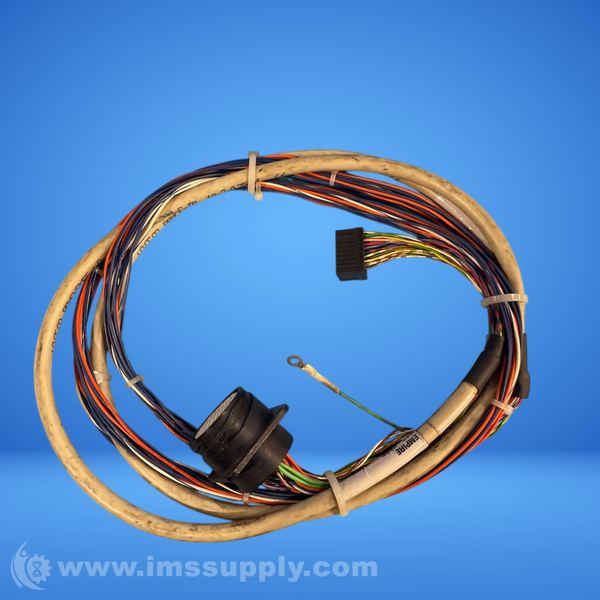

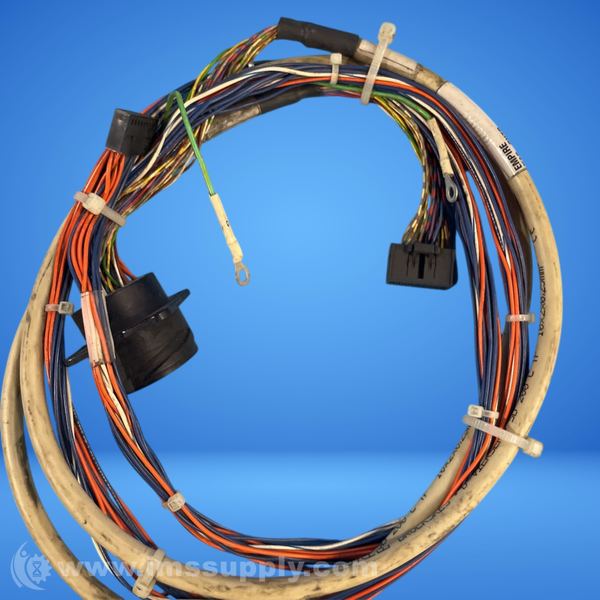

SAB Brockskes SD 200 C TP Flexible Data Cable
Continuously flexible paired TPE/PUR data cable with coloured cores and overall copper screen
Specifications
- Conductor: bare copper strands, extra fine wires
- Insulation: TPE
- Colour code: with reference to DIN 47100
- Stranding: cores twisted to pairs, pairs twisted in specially adjusted layering with non-woven tape over each layer
- Screen: tinned copper braiding
- Sheath material: PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface
- Sheath colour: grey (RAL 7032)
- Peak operating voltage: max. 350 V acc. to VDE 0812
- Testing voltage: core/core 1500 V, core/screen 1200 V
- Min. bending radius: continuously flexible: 7.5 x d
- Temperature range: fixed laying: -50/+90 degrees C, flexible application: -40/+90 degrees C
- Type: data
- Format: DIN
- Configuration: twisted pair, paired
- Core material: copper
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
