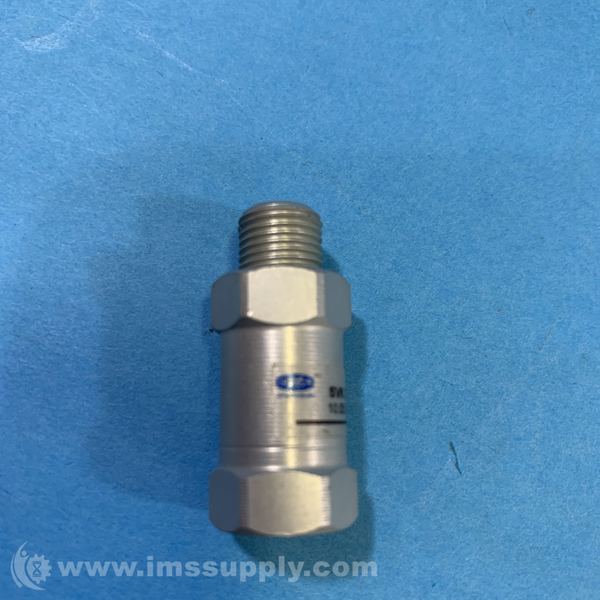

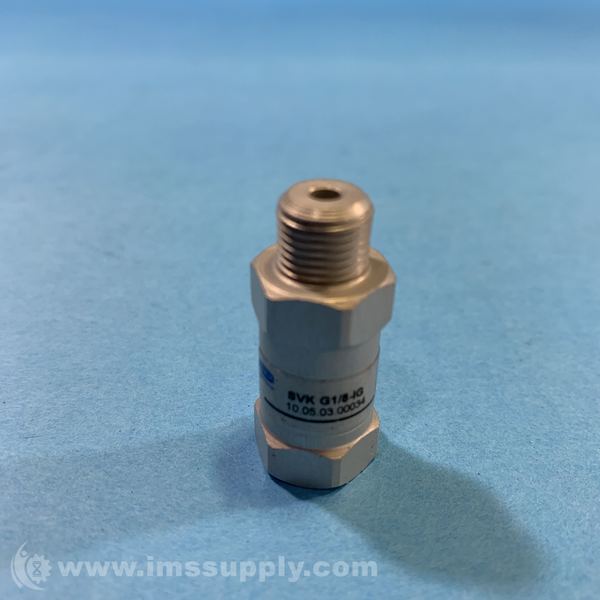

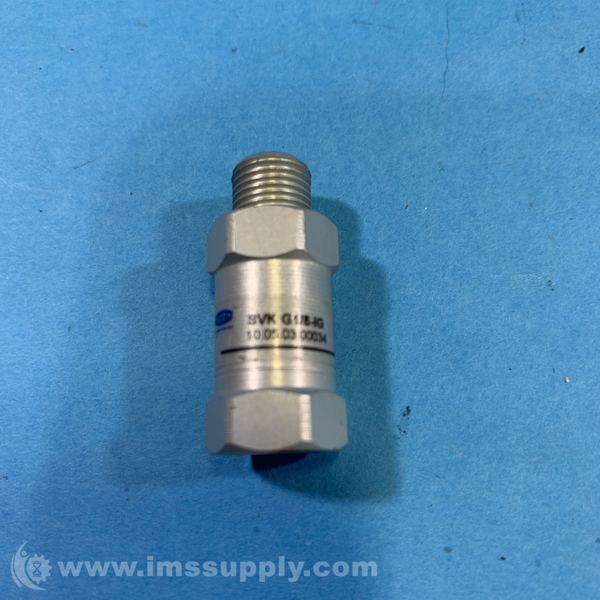

SCHMALZ 10.05.03.00034 CHECK VALVE
Quick Overview
Manufactured By: SCHMALZ
Manufacturer Part Number: 10.05.03.00034
IMS Product Code: 1866994
Packaging: Sold Individually
Description:
Schmalz 10.05.03.00034 Check Valve
Check valve for deactivation of unused suction cups
Specifications
- Series: SVK
- Nominal Size: G1/8"-F
- Port Size: G1/8"-F
- Flow Rate: 310 lpm
- Inlet to Outlet Length: 34 mm
- Body Material: Aluminum
- Weight: 11.2 g
- Type: Male Thread on Top
- G1: G1/8"-M
- G2: G1/8"-F
- L: 26 mm
- LG1: 8 mm
- LG2: 8.5 mm
- SW1: 14 mm
- Required suction capacity for pu = -0.3 bar: 0.14 m³/h / 2.3 l/min
- Required suction capacity for pu = -0.6 bar: 0.15 m³/h / 2.5 l/min
- Flow rate max.: 18.6 m³/h / 310 l/min
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 26 In Stock
