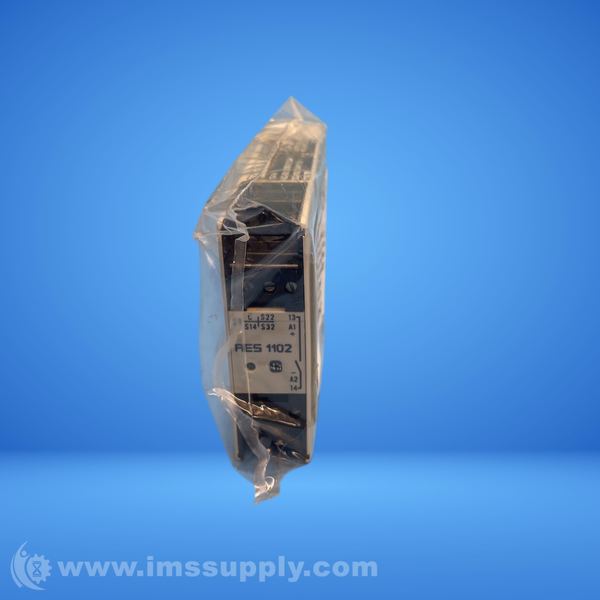

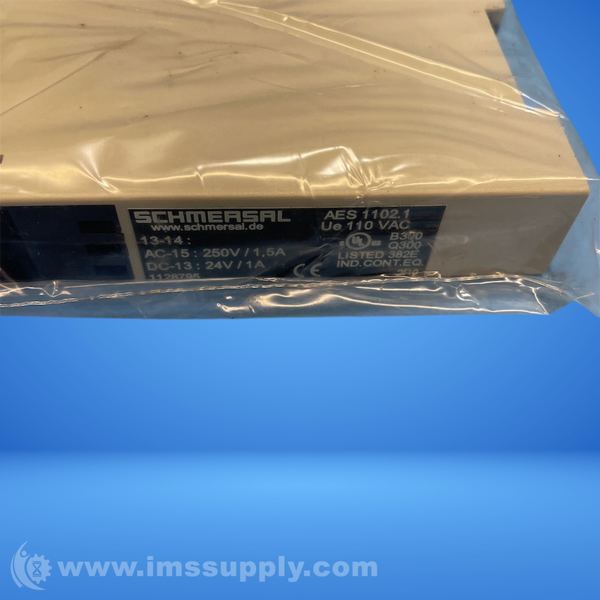

SCHMERSAL AES 1102.1 SAFETY MONITORING MODULE
Quick Overview
Manufactured By: SCHMERSAL
Manufacturer Part Number: AES 1102.1 110 VAC
IMS Product Code: 2153415
Packaging: Sold Individually
Description:
Schmersal AES 1102.1 Safety Monitoring Module
Safety-monitoring module for non-contact safety switches and safety relay combination in connection with the BNS series magnetic safety switches
Specifications
- Standards: BG-GS-ET-14, BG-GS-ET-20, EN IEC 62061, EN ISO 13849-1, EN IEC 60947-5-1, EN IEC 60947-5-3, EN IEC 60947-5-5, EN IEC 60204-1, EN IEC 60947-1
- Climatic stress: EN 60068-2-3
- Housing material: Glass-fibre reinforced thermoplastic, ventilated
- Gross weight: 164 g
- Wire breakage detection: Yes
- Automatic reset function: Yes
- Reset after disconnection of supply voltage: Yes
- Integral system diagnostics, status: Yes
- Number of LEDs: 1
- Number of normally closed (NC): 4
- Number of normally open (NO): 2
- Number of safety contacts: 1
- Stop-Category: 0
- Performance Level, up to: c
- Category: 1
- PFH value: 1.14 x 10?6 /h
- Safety Integrity Level (SIL), suitable for applications in: 1
- Mission time: 20 Year(s)
- Mechanical lifetime, minimum: 3,000,000 Operations
- Mounting: Snaps onto standard DIN rail to EN 60715
- Cable section, maximum: 2.5 mm²
- Tightening torque of Clips: 0.6 Nm
- Allowed type of cable: solid single-wire, flexible
- Terminal (mechanical): Schraubklemmen
- Width: 22.5 mm
- Height: 75 mm
- Depth: 110 mm
- Degree of protection of the enclosure: IP40
- Degree of protection of the installation space: IP54
- Degree of protection of clips or terminals: IP20
- Ambient temperature: +0 ... +55 °C
- Storage and transport temperature: -25 ... +70 °C
- Resistance to vibrations: 10...55 Hz, Amplitude 0.35 mm, ± 15 %
- Restistance to shock: 30 g / 11 ms
- Rated impulse withstand voltage Uimp: 4 kV
- Overvoltage category: III
- Degree of pollution: 2
- Frequency range: 50 Hz, 60 Hz
- Thermal test current: 4 A
- Rated operating voltage: 110 VAC
- Rated AC voltage for controls, 50 Hz, minimum: 93.5 VAC
- Rated control voltage at AC 50 Hz, maximum: 121 VAC
- Rated AC voltage for controls, 60 Hz, minimum: 93.5 VAC
- Rated control voltage at AC 60 Hz, maximum: 121 VAC
- Electrical power consumption: 2.4 W
- Contact resistance, maximum: 0.1 O
- Drop-out delay in case of power failure, typically: 80 ms
- Drop-out delay in case of emergency, typically: 20 ms
- Pull-in delay at automatic start, maximum, typically: 100 ms
- Pull-in delay at RESET, typically: 20 ms
- Material of the contacts, electrical: AgCdO
- Voltage, Utilisation category AC-15: 250 VAC
- Current, Utilisation category AC-15: 1.5 A
- Voltage, Utilisation category DC-13: 24 VDC
- Current, Utilisation category DC-13: 1 A
- Switching capacity, minimum: 10 VDC, 10 mA
- Switching capacity, maximum: 250 VAC, 8 A
- Conduction resistance, maximum: 40 O
- Voltage, Utilisation category DC-12: 24 VDC
- Current, Utilisation category DC-12: 0.1 A
- EMC rating: EMC-Directive
- Country of Origin: Germany
