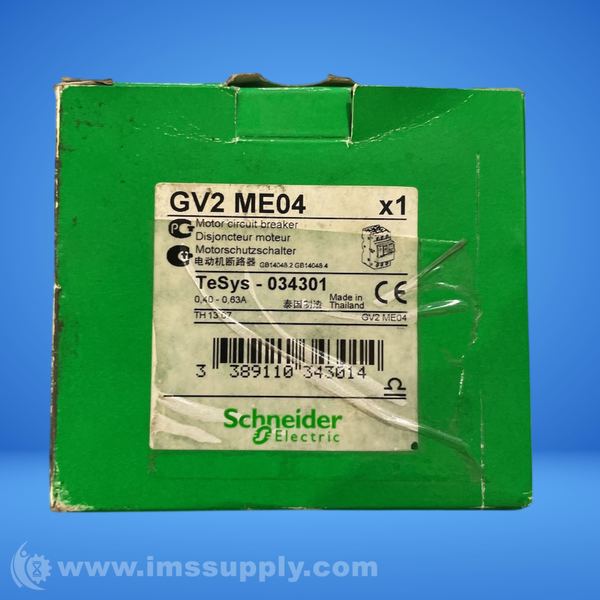

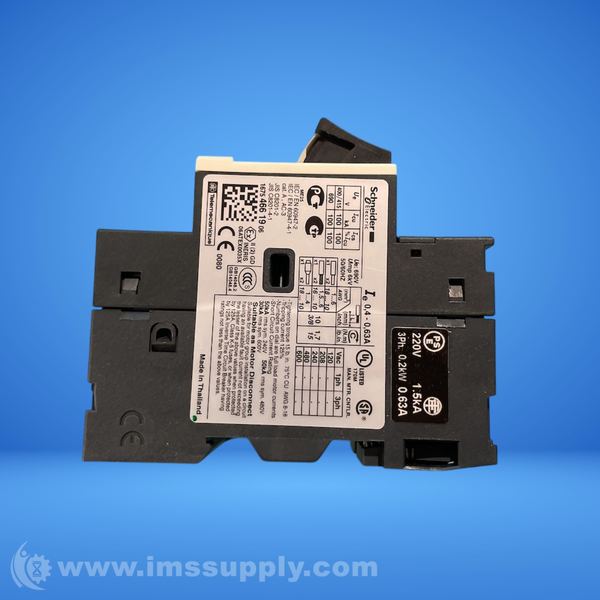

SCHNEIDER GV2ME04 MOTOR CIRCUIT BREAKER
Quick Overview
Manufactured By: SCHNEIDER AUTOMATION INC
Manufacturer Part Number: GV2 ME04
IMS Product Code: 2176636
Packaging: Sold Individually
Description:

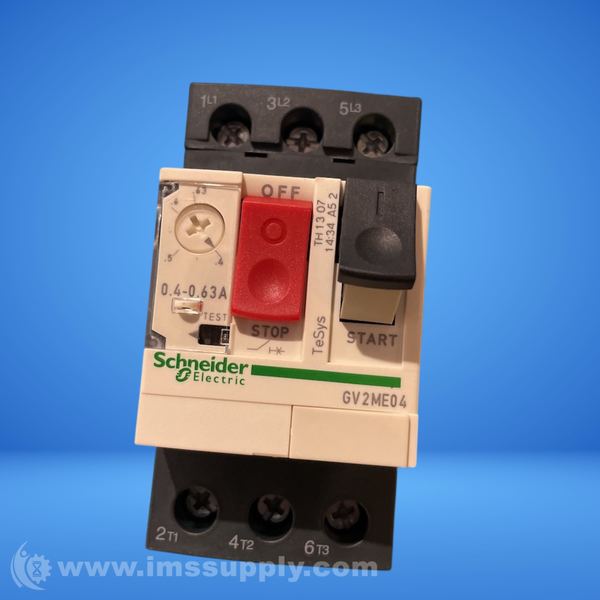

Schneider GV2ME04 Motor Circuit Breaker
Motor Protection Circuit Breaker (MPCB) with thermal-magnetic motor protection and manual motor starting. Features ON/OFF push button design and adjustable thermal trip setting from 0.4A-0.63A.
Specifications
- Amp Range: 0.4 to 0.63A
- Operator: On/Off Push Button
- Tripping Class: Class 10
- Terminals: Screw

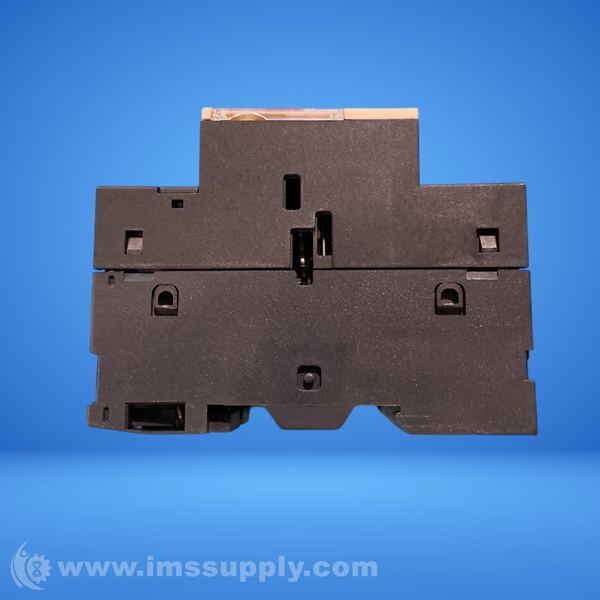

- Mounting: 35MM DIN Rail
- Rated Duty: Continuous IEC 60947-4-1
- Line Rated Current: 0.63 A
- Electrical Durability: 100000 cycles AC-3 440 V
- Net Weight: 0.57 lb (0.26 kg)
- Network Type: AC
- Device Application: Motor
- Thermal Protection Adjustment Range: 0.4�0.63 A
- Magnetic Tripping Current: 8 A
- Poles Description: 3P
- Rated Impulse Withstand Voltage: 6 kV IEC 60947-2
- Phase Failure Sensitivity: Yes IEC 60947-4-1
- Rated Operational Voltage: 690 V AC 50/60 Hz conforming to IEC 60947-2
- Height: 3.50 in (89 mm)
- Network Frequency: 50/60 Hz IEC 60947-4-1
- Mechanical Durability: 100000 cycles
- Depth: 3.09 in (78.5 mm)
- Tightening Torque: 15.05 lbf.in (1.7 N.m) screw clamp terminals
- Rated Insulation Voltage: 690 V AC 50/60 Hz IEC 60947-2
- Suitability For Isolation: Yes conforming to IEC 60947-1
- Control Type: Push-button
- Power Dissipation Per Pole: 2.5 W
- Width: 1.77 in (45 mm)

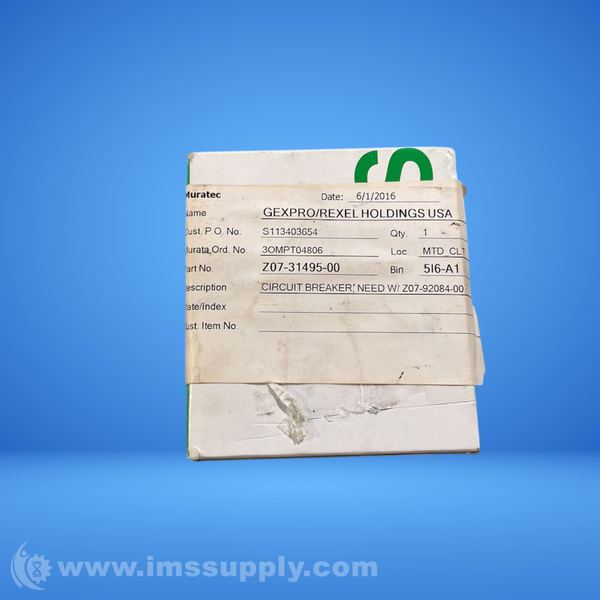

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
