SCHNEIDER ELECTRIC 60110 MINIATURE CIRCUIT BREAKER
Quick Overview
Manufactured By: SCHNEIDER ELECTRIC
Manufacturer Part Number: 60110
IMS Product Code: 2114203
Packaging: Sold Individually
Description:

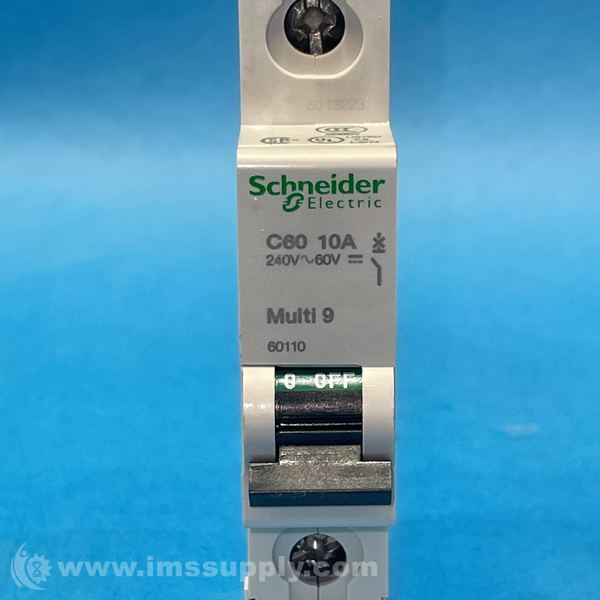

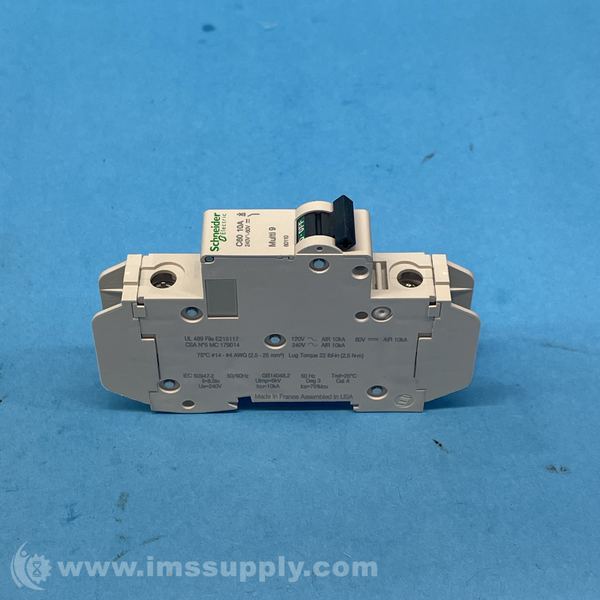

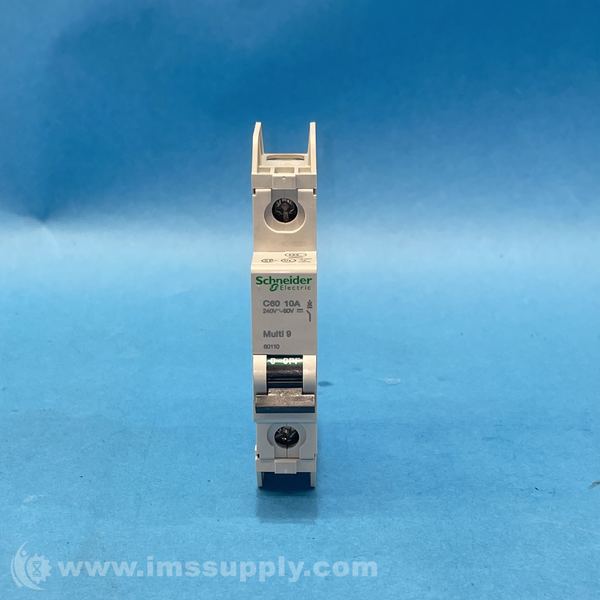

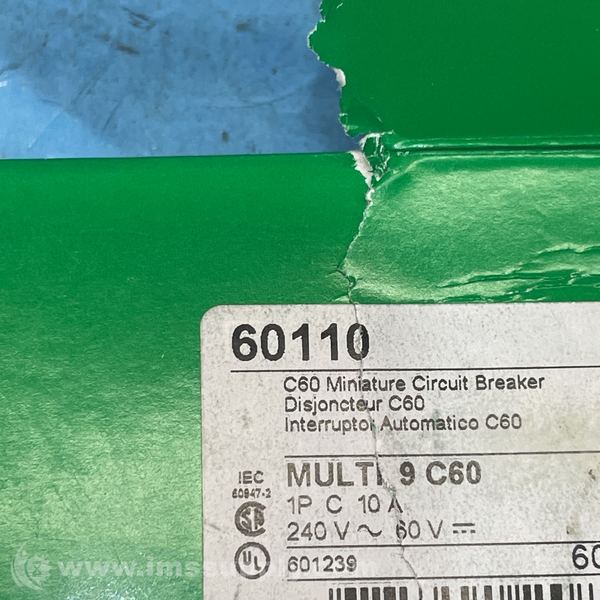

Schneider Electric 60110 Miniature Circuit Breaker
1-pole miniature circuit breaker with C-trip curve and box lug connection, rated 10A, 120/240V AC, 60V DC, 10kA breaking capacity. Part of the Multi 9 series.
Specifications
- Series: Multi 9
- Number of Poles: 1
- Current Rating: 10 A
- Curve Type: C
- AC Voltage Rating: 120/240V AC
- DC Voltage Rating: 60V DC
- Breaking Capacity: 10 kA
- Mounting Type: DIN-Rail
- Terminal Connection: Lug
- Trip Type: Thermal Magnetic
- Min. Wire Size: 18 AWG
- Max. Wire Size: 4 AWG
- Length: 3.19 in
- Width: 0.71 in
- Depth: 2.87 in
- Standards: CSA C22.2 No. 5-02; UL 489 Listed
- Country of Origin: France
New - Open Box:

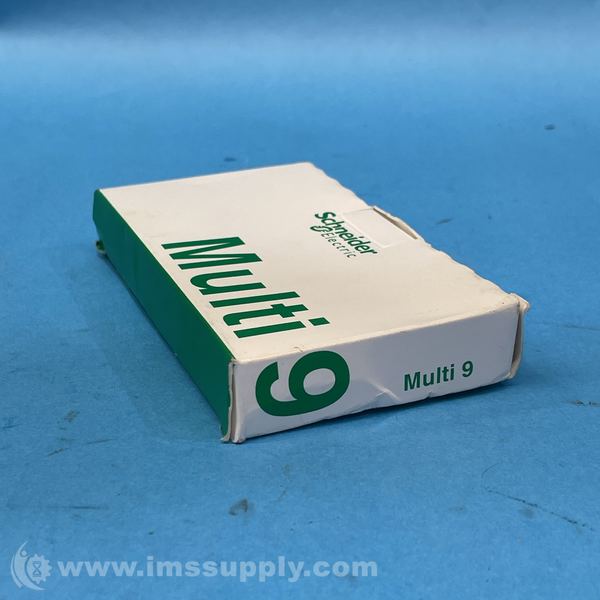

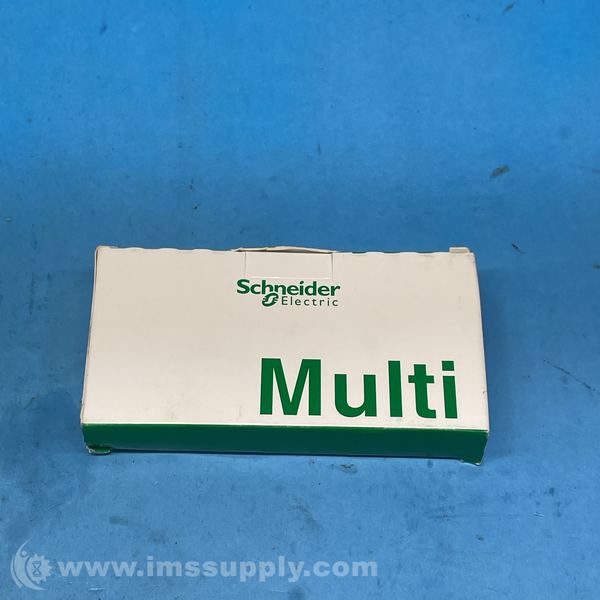

A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
