SCHNEIDER ELECTRIC 60127 MINIATURE CIRCUIT BREAKER
Quick Overview
Manufactured By: SCHNEIDER ELECTRIC
Manufacturer Part Number: 60127
IMS Product Code: 1825084
Packaging: Sold Individually
Description:

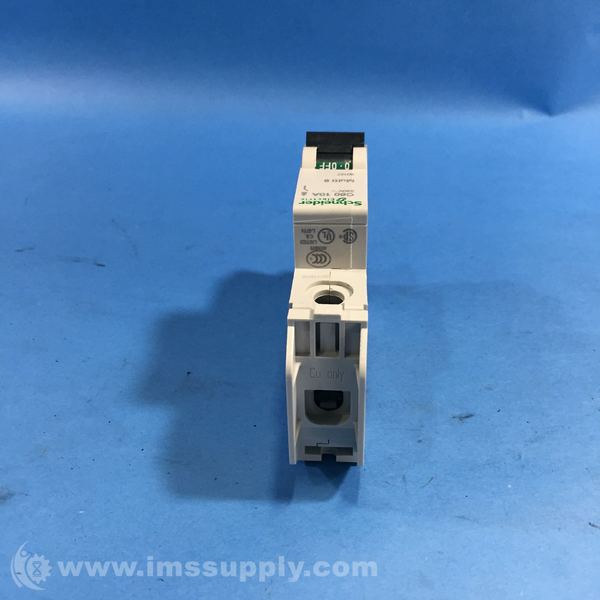

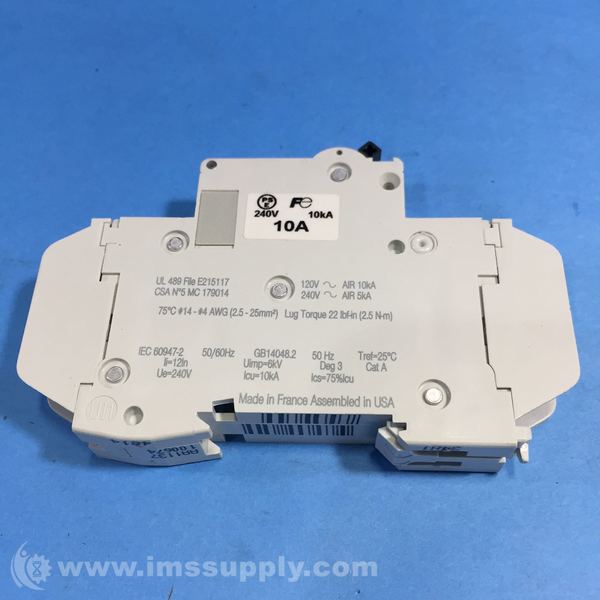

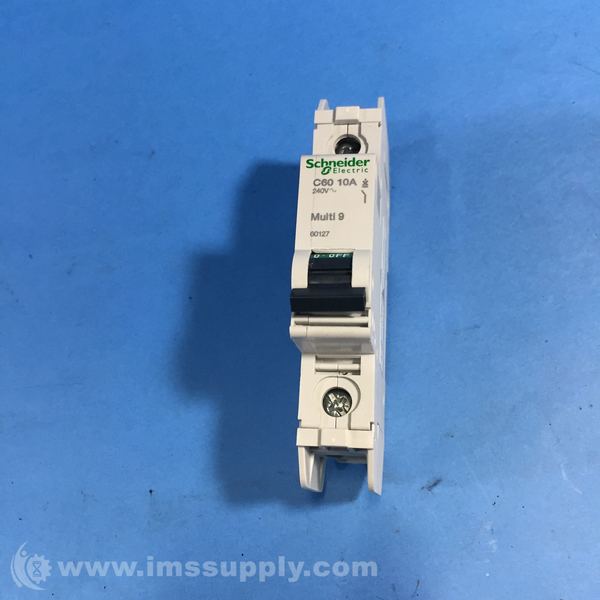

Schneider Electric 60127 Miniature Circuit Breaker
1-pole miniature circuit breaker with 10A current rating, D curve, 240V AC/DC voltage rating, and 10kA breaking capacity at 120/240V AC. Thermal-magnetic trip mechanism, DIN rail mounting, and lug terminals.
Specifications
- Amps: 10 A
- Number of Poles: 1
- Curve Type: D
- AC Voltage Rating: 120/240V AC
- DC Voltage Rating: 60V DC
- Max. AIR Rating: 10kA at 120/240V AC
- Trip Type: Thermal Magnetic
- Circuit Breaker Mounting Style: DIN Rail
- Terminal Connection: Lug
- Min. Wire Size: 14 AWG
- Max. Wire Size: 4 AWG
- Length: 4.21 in
- Width: 0.71 in
- Depth: 2.87 in
- Min. Operating Temp.: -22°F
- Max. Operating Temp.: 158°F
- Standards: CCC; CSA; CSA C22.2 No 5; EN/IEC 60947-2; GB 14048.2; IEC; UL; UL 489
- Series: C60N
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
