SCHNEIDER ELECTRIC GV2ME06 MOTOR CIRCUIT BREAKER
Quick Overview
Manufactured By: SCHNEIDER ELECTRIC
Manufacturer Part Number: GV2ME06
IMS Product Code: 1939843
Packaging: Sold Individually
Description:

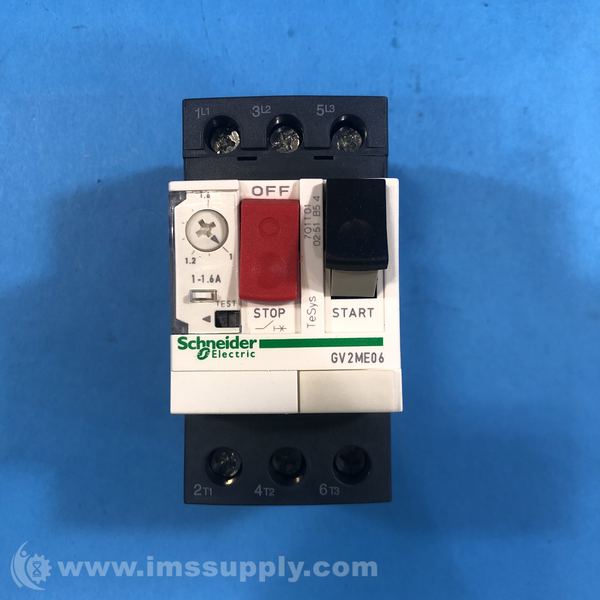

Schneider Electric GV2ME06 Motor Circuit Breaker
3-pole manual motor starter with adjustable thermal trip setting from 1A to 1.6A, screw clamp terminals, and DIN rail mounting.
Specifications
- AMP range: 1 to 1.6A
- Operator: On/Off push button
- Tripping: Class 10
- Terminals: Screw
- Mounting: 35MM DIN rail
- Type: Circuit Breaker
- Series: GV2
- Amperage Rating: 1 to 1.6 A
- Dimensions: 45 mm W x 78.5 mm D x 89 mm H
- Enclosure Type: IP20/IK04
- Motor Power: 0.01 hp, 3/4 hp, 1 hp
- Overload Relay: Ambient Compensated Bimetal
- Voltage Rating: 690 V
- Number of Poles: 3
- Supply Voltage Min: 240VAC
- Supply Voltage Max: 600VAC
- No. of Phases: Three
- Power Rating: 1hp
- Tightening torque: 15 lb. in.
- Short Circuit Current Rating: 50kA rms sym. 240V, 50kA rms sym. 480V, 30kA rms sym. 600V
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 13 hours and 15 minutes.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 15 minutes.
