SCHNEIDER ELECTRIC GV2ME10 MANUAL MOTOR STARTER
Quick Overview
Manufactured By: SCHNEIDER ELECTRIC
Manufacturer Part Number: GV2ME10
IMS Product Code: 1904044
Packaging: Sold Individually
Description:

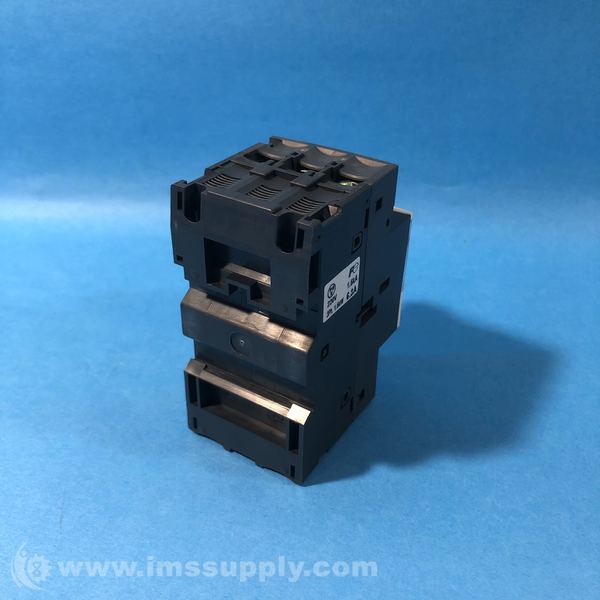

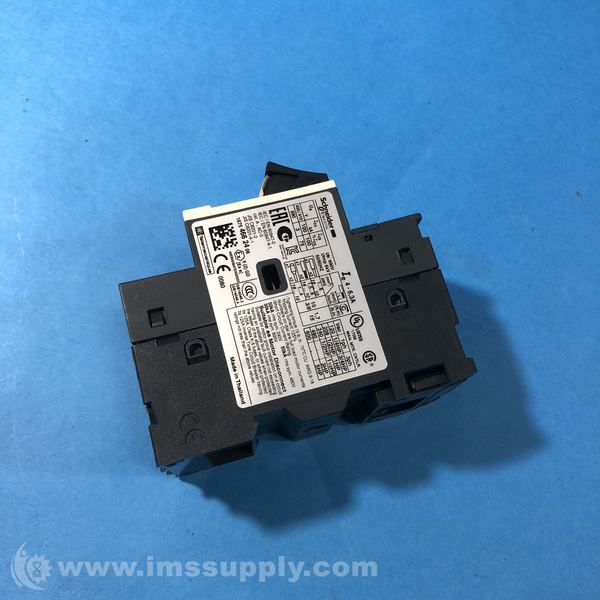

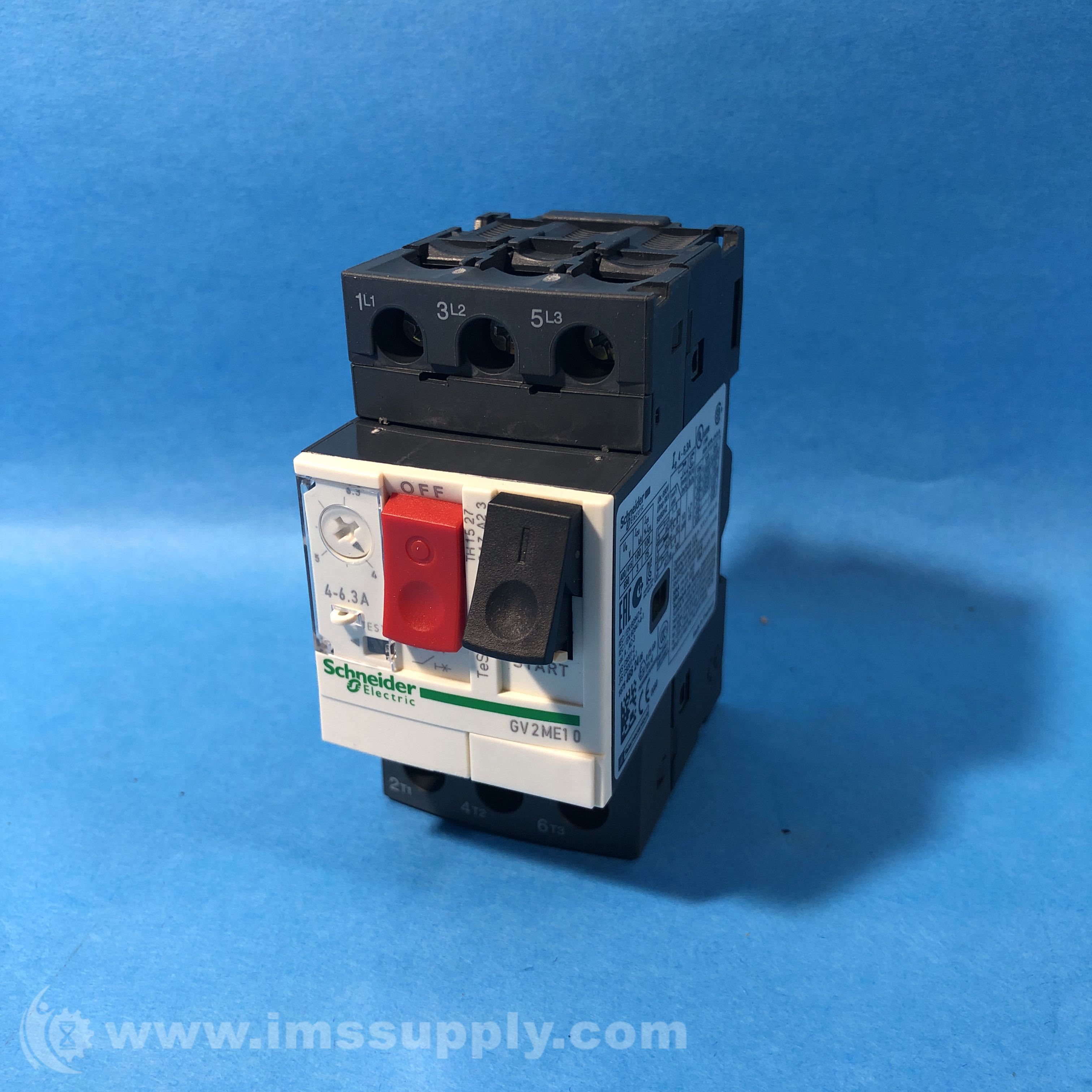

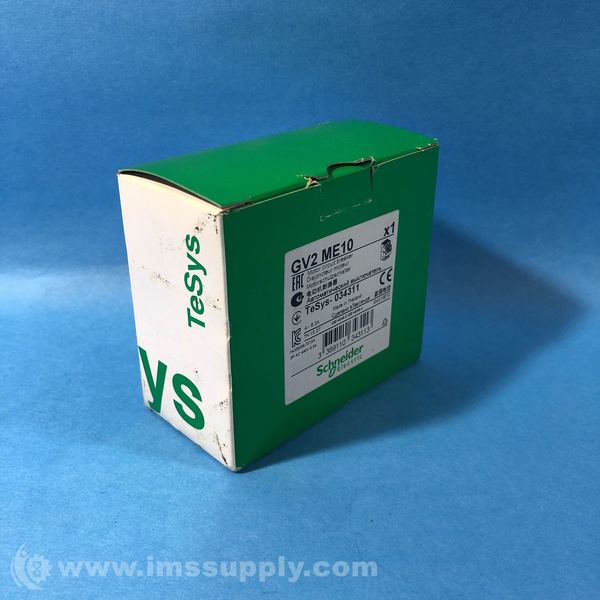

Schneider Electric GV2ME10 Manual Motor Starter
Manual Motor Starter adjustable from 4-6.3 AMPS, 3-Pole, 690VAC, Screw Clamp Terminals
Specifications
- Amperage: 4-6.3
- Approval: EN/IEC, UL, CSA, CCC, EAC, ATEX, LROS, BV, RINA, DNV-GL, UKCA
- Brand: Schneider Electric
- Color: Dark Gray
- Country of Origin: France
- Degree of protection: IP55
- Depth: 78.2066 mm
- Electrical life (close-open operations): 100,000
- For Use With: LC1D Motor Control Systems
- Height: 78.5 mm
- Length: 89 mm
- Mechanical life (close-open operations): 100,000
- Min Operating Temperature: -20 C
- Mounting Type: Din Rail
- Number of Poles: 3
- Phase: 3
- Protection: Thermal
- Rated impulse withstand voltage (U imp): 6 kV
- Rated operational voltage (Ue): 690v
- Series: GV2M
- Temperature Rating: -4 to 140 F
- Terminal Connection: Screw Clamp
- Termination: Screw
- Voltage Rating: 690 V
- Weight: 0.277 kg / 0.611 lb
- Width: 1.77 in
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 3 In Stock
Ships today if ordered in the next 6 hours and 18 minutes.
