SCHNEIDER ELECTRIC HJL36080 CIRCUIT BREAKER
Quick Overview
Manufactured By: SCHNEIDER ELECTRIC
Manufacturer Part Number: HJL36080
IMS Product Code: 2140815
Packaging: Sold Individually
Description:

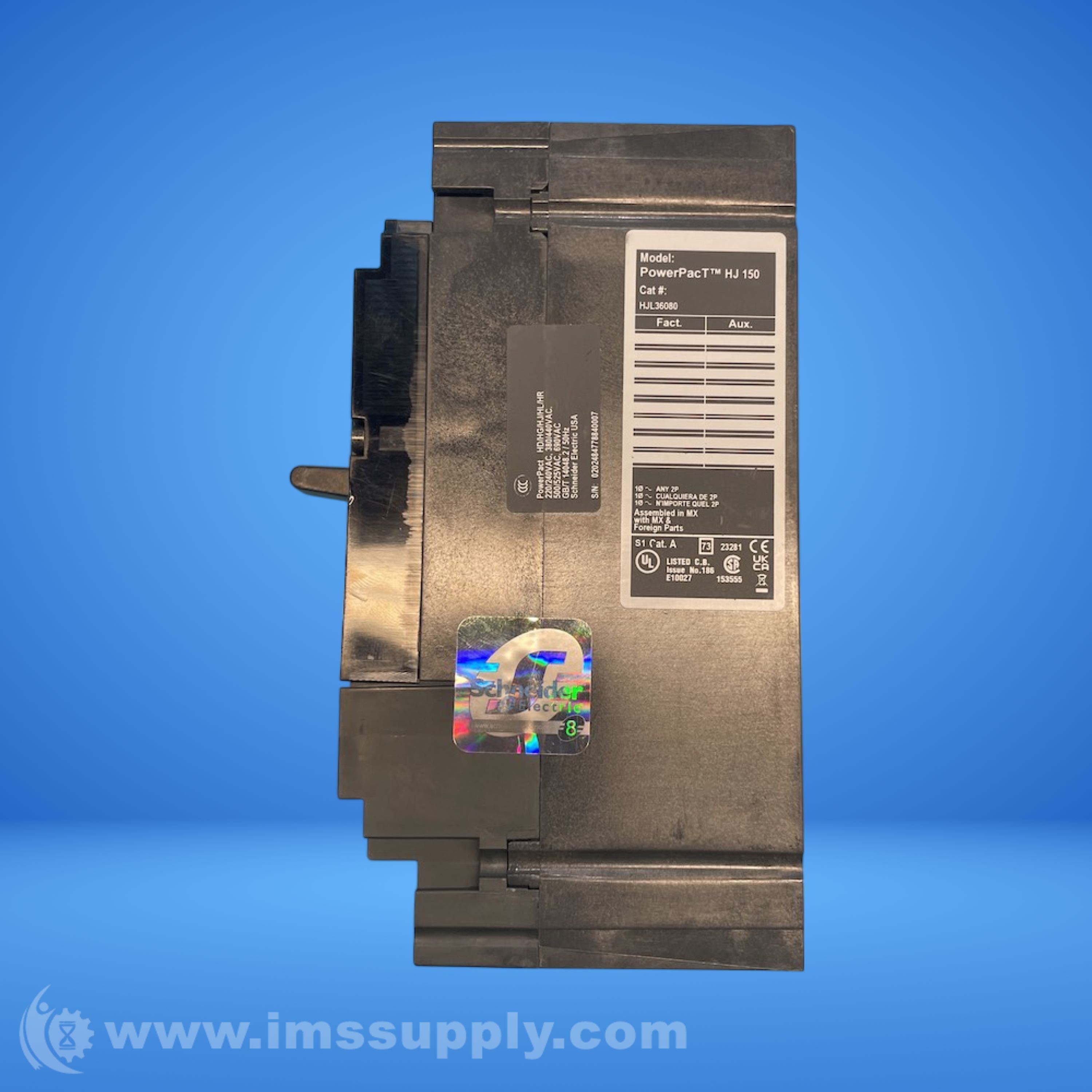

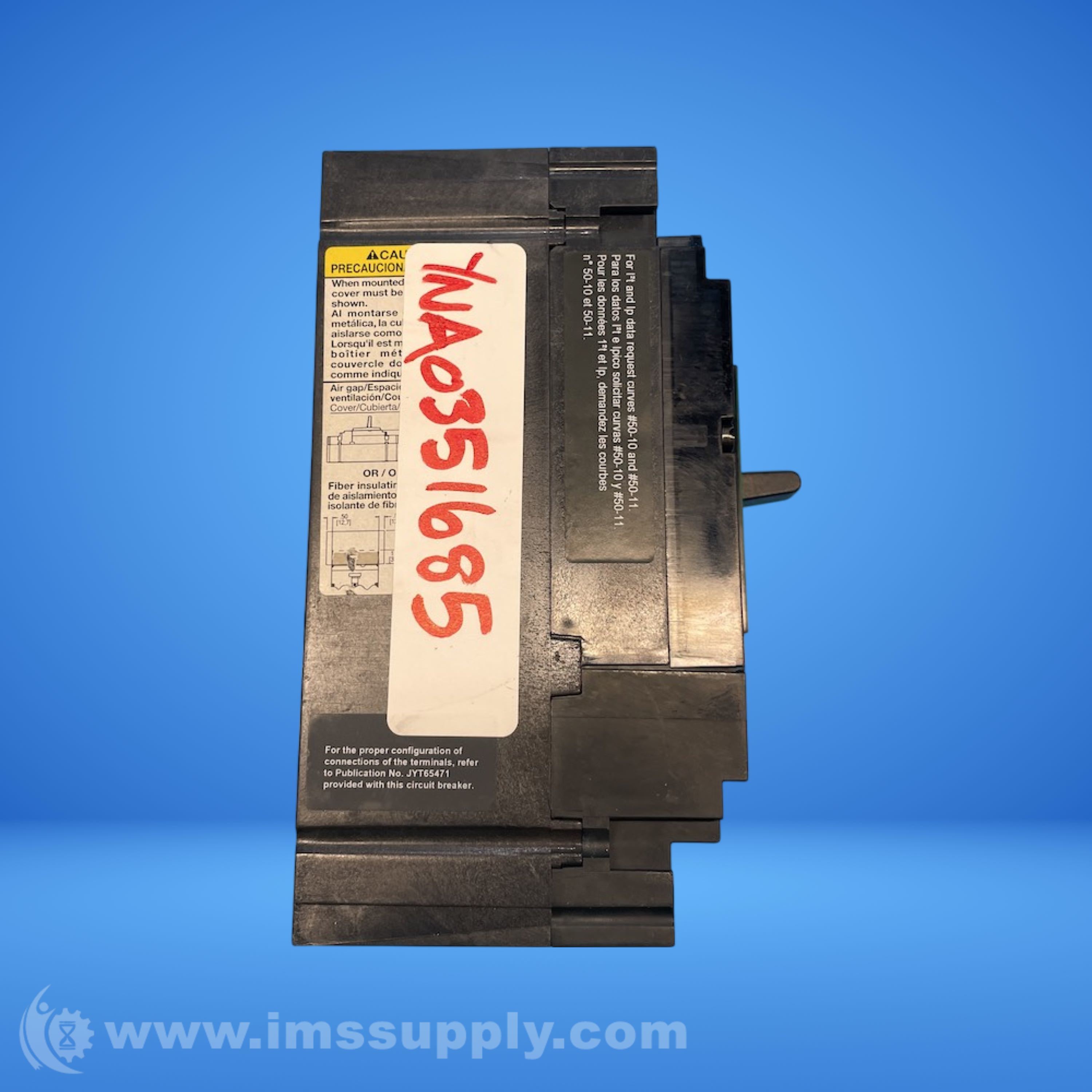

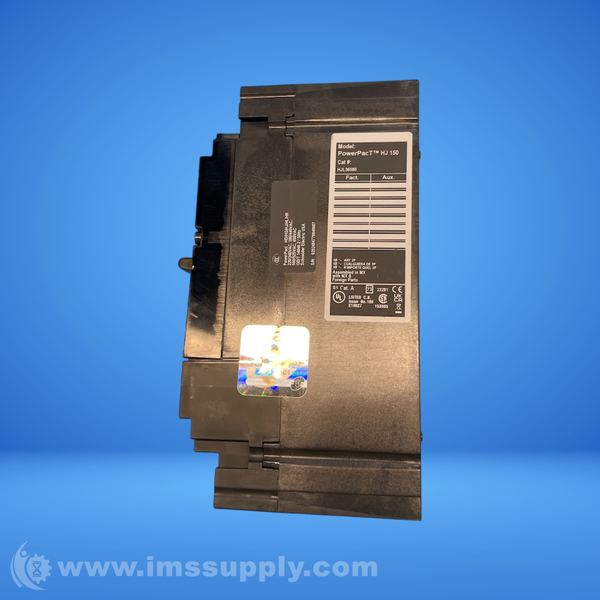

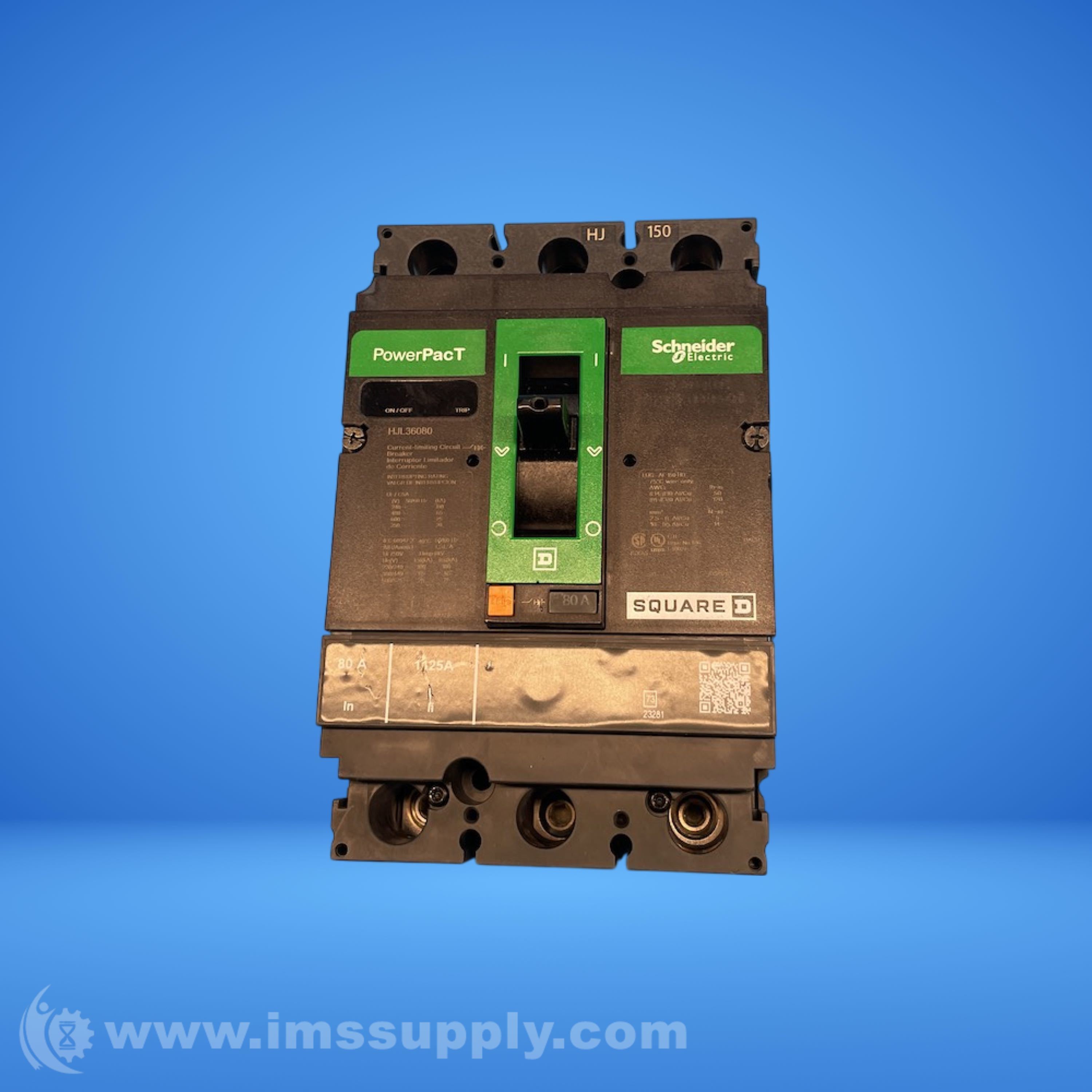

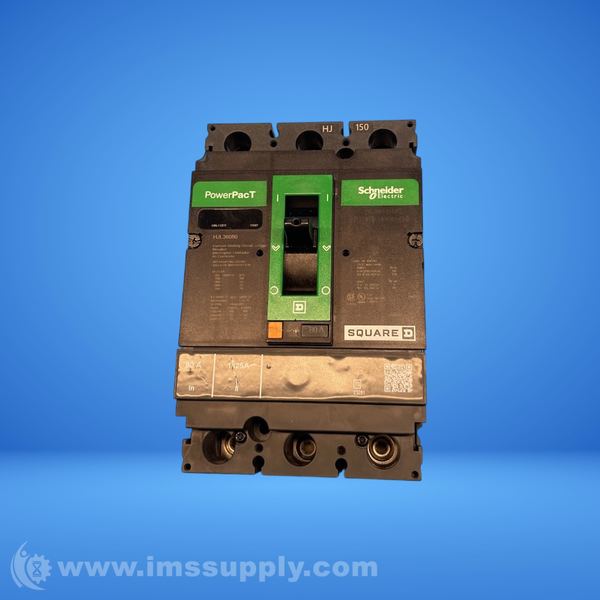

Schneider Electric HJL36080 Circuit Breaker
Molded case circuit breaker with thermal-magnetic trip unit, H-frame, 3-pole, 80A, 600VAC/250VDC, unit mount, lugs line/lugs load connections.
Specifications
- Amps: 80 Amp
- Breaker Interrupt Rating 1: 100KA @ 240VAC
- Breaker Interrupt Rating 2: 65KA @ 480VAC
- Breaker Interrupt Rating 3: 25KA @ 600VAC
- Breaker Interrupt Rating 4: 20KA @ 250VDC
- Breaker Line Side Term Method: Lugs
- Breaker Load Side Term Method: Lugs
- Circuit Breaker Type: MCCB
- Frame: H
- Trip Type: Thermal Magnetic
- Volts: 600V
- Number of Poles: 3 Pole
- Height: 3.44
- Length: 6.4
- Width: 4.12
- AIC Ratings: 65kA@480V
- Dimensions (HxWxD): 6.4" x 4.12" x 4.36"
- Weight: 4.85 lbs
- Frame Type: H-Frame
- Trip Unit Technology: Thermal-magnetic
- Line Rated Current: 80 A
- Mounting Mode: Unit mount lug
- Electrical Connection: Lugs line / Lugs load
- Continuous Current Rating: 80%
- Control Type: Toggle
- AWG Gauge: AWG 14...AWG 3/0 aluminium/copper terminal
- Series: PowerPacT H
- Mounting Type: Unit
- Interrupting Rating: 100kAIC at 240VAC, 65kAIC at 480VAC
- Connection Type: Feed-Thru
- Protection: Thermal Magnetic
- Functions: LI - Long-Time and Instantaneous Trip
- Terminal Connection: Line and Load Side Lug
- Wire Gauge: AWG 14 to AWG 3/0, Aluminum/Copper
- Temperature Rating: -25 to 70 degrees C
- Max Wire Size: AWG 3/0, Cu/Al
- Min Wire Size: AWG 14, Cu/Al
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
