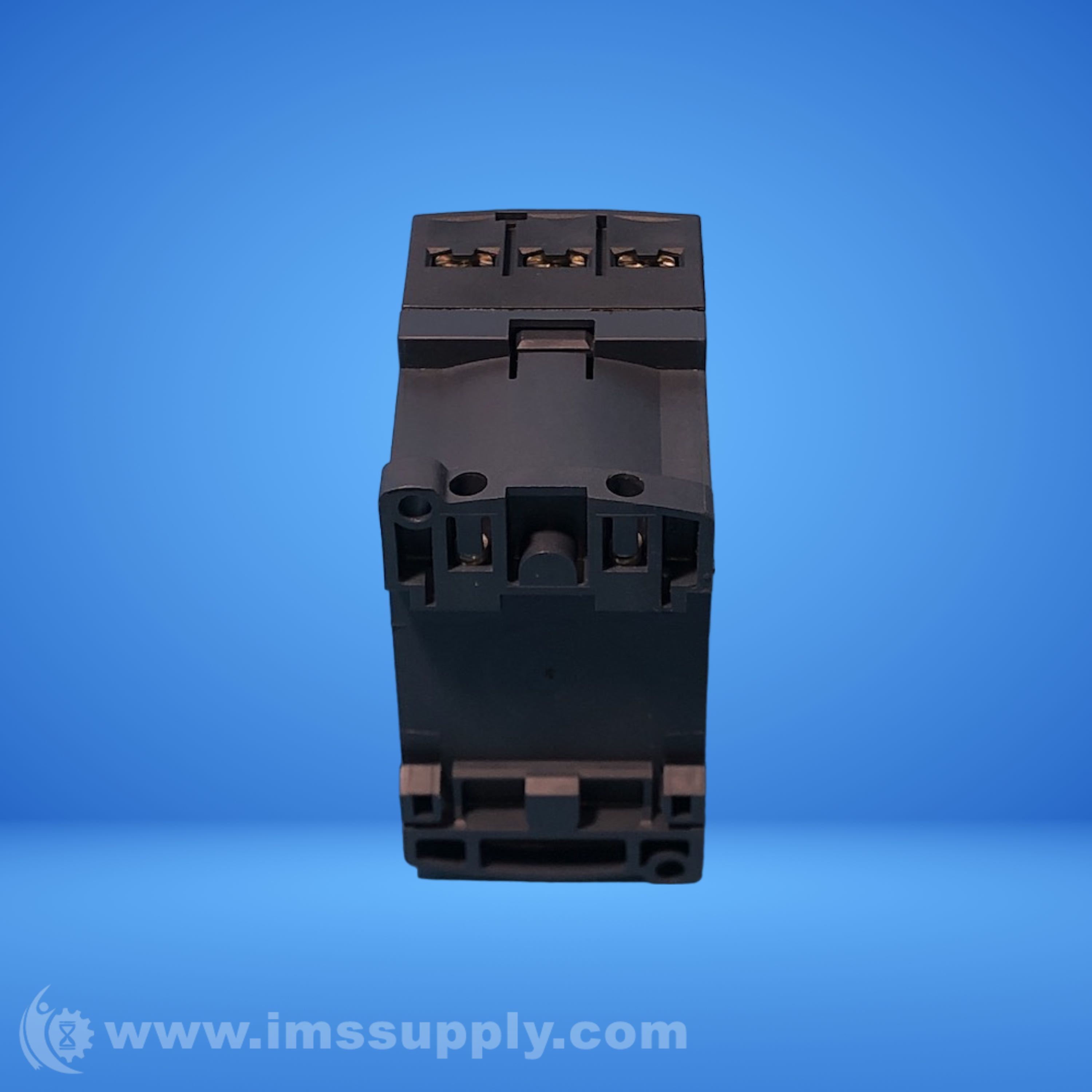

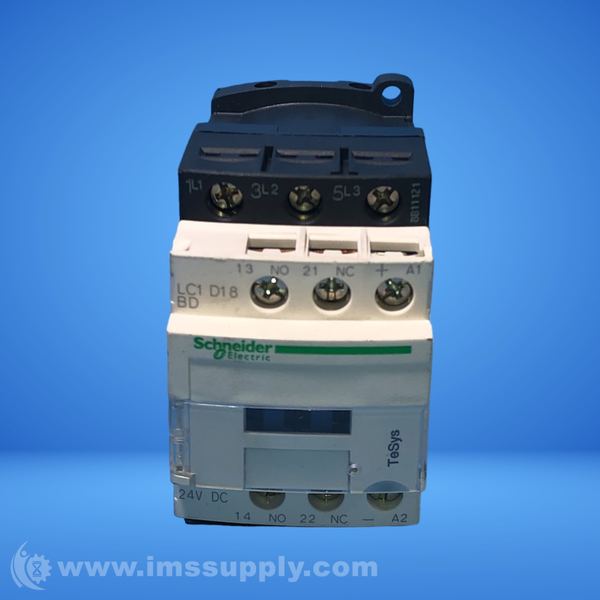

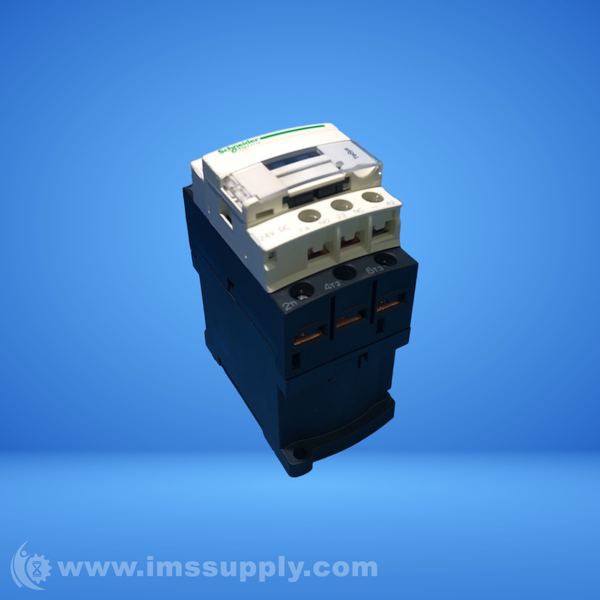

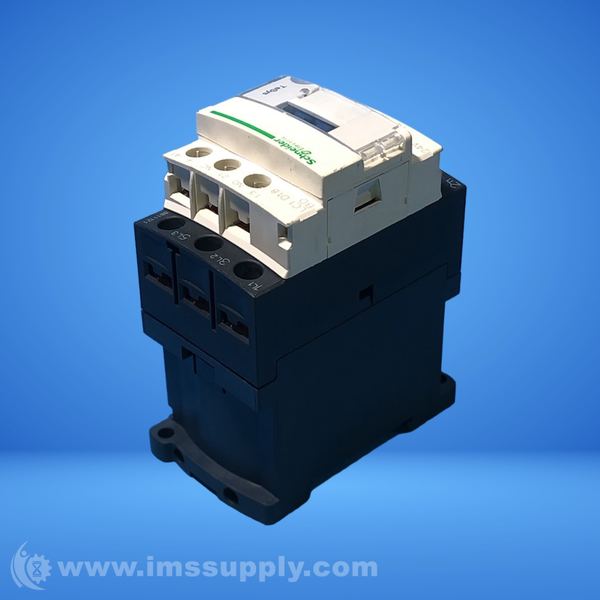

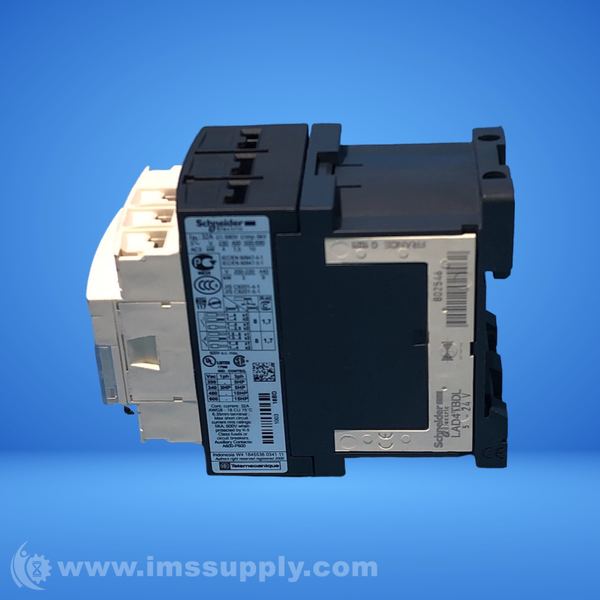

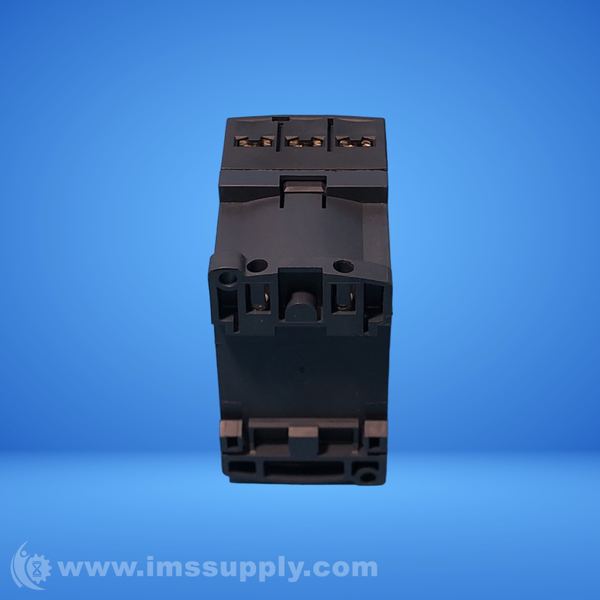

SCHNEIDER ELECTRIC LC1D18BD 3-POLE CONTACTOR
Quick Overview
Manufactured By: SCHNEIDER ELECTRIC
Manufacturer Part Number: LC1D18BD
IMS Product Code: 2020363
Packaging: Sold Individually
Description:
Schneider Electric LC1D18BD 3-Pole Contactor
3-pole contactor with 18A rated operational current, 24V DC coil, and screw clamp terminals. Used for motor control in LC1-D series systems.
Specifications
- Brand: Schneider Electric
- Series: LC1
- Amperage: 18 A
- Voltage: 600/690V AC, 300V DC
- Poles: 3
- Phase: 3
- Mounting Type: Din Rail
- Terminal Connection: Screw Clamp
- Length: 3.74 in
- Width: 1.77 in
- Height: 3.03 in
- DC Coil Voltage: 24V DC
- AC3 Amp Rating: 18
- AC1 Amp Rating: 32
- 230V HP Rating: 5
- 460V HP Rating: 10
- NO Auxiliary Contacts: 1
- NC Auxiliary Contacts: 1
- Contact Configuration: 1NO, 1NC
- Coil Volts: 24V DC at 50/60Hz
- Maximum Horsepower Three Phase: 10
- Maximum Current Inductive AC-3: 18 A
- Maximum Current Resistive AC-1: 32 A
- Rated insulation voltage (Vi): 600V UL/CSA
- Rated impulse withstand voltage (Vimp): 6 kV
- Degree of protection: IP 2X
- Mechanical durability: 15 million operating cycles

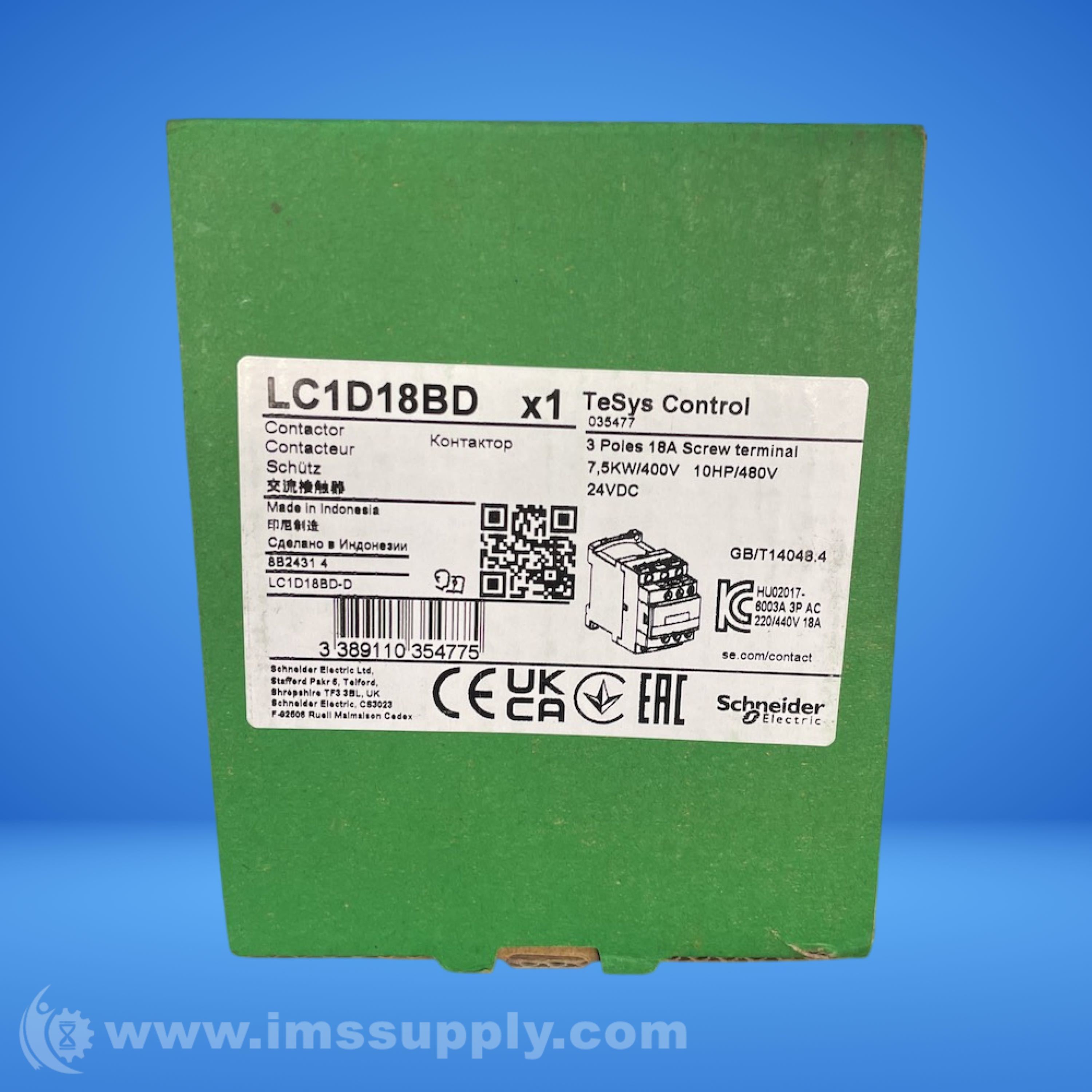

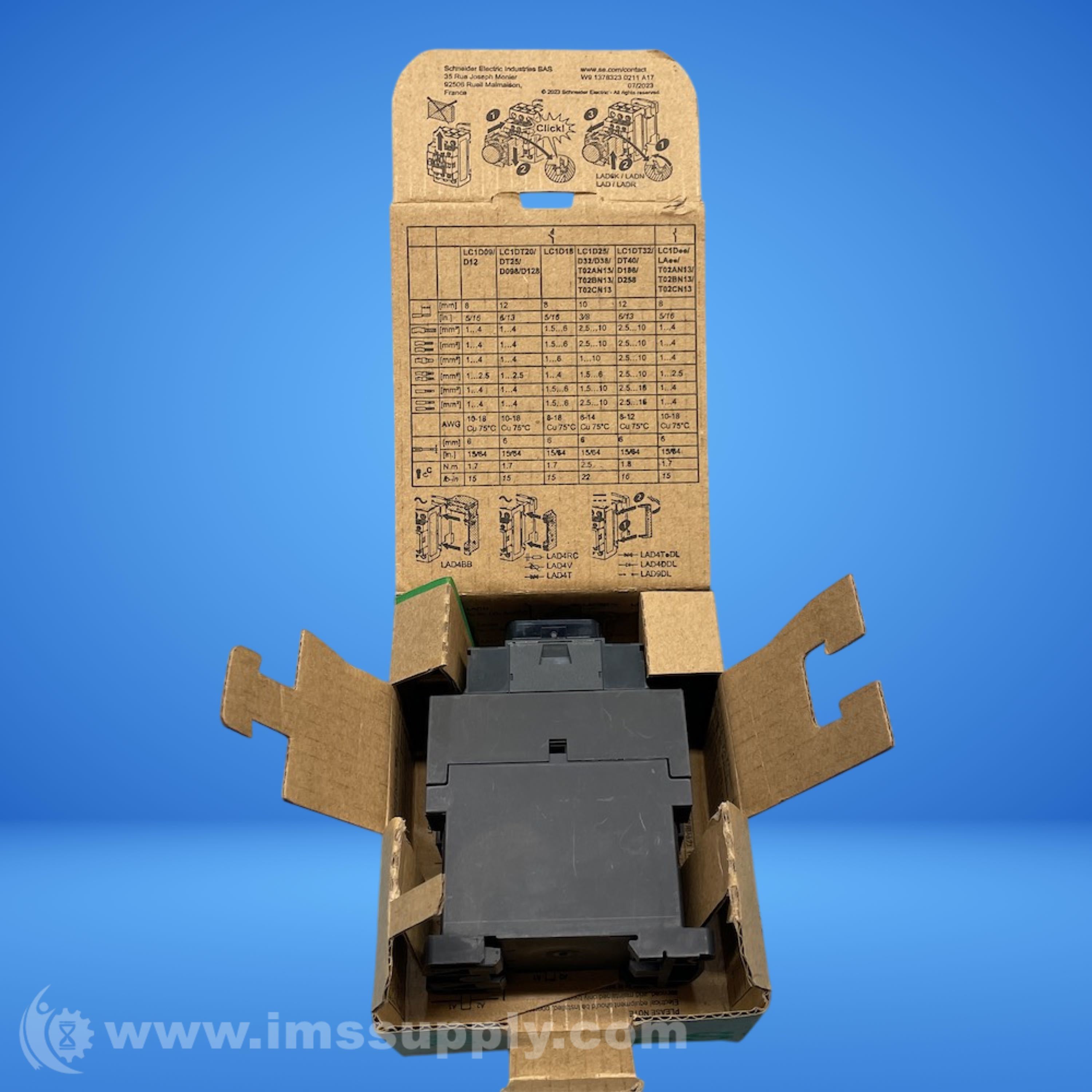

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 4 hours and 19 minutes.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 4 hours and 19 minutes.
