SCHNEIDER ELECTRIC LC1F330 CONTACTOR
Quick Overview
Manufactured By: SCHNEIDER ELECTRIC
Manufacturer Part Number: LC1F330
IMS Product Code: 2165325
Packaging: Sold Individually
Description:

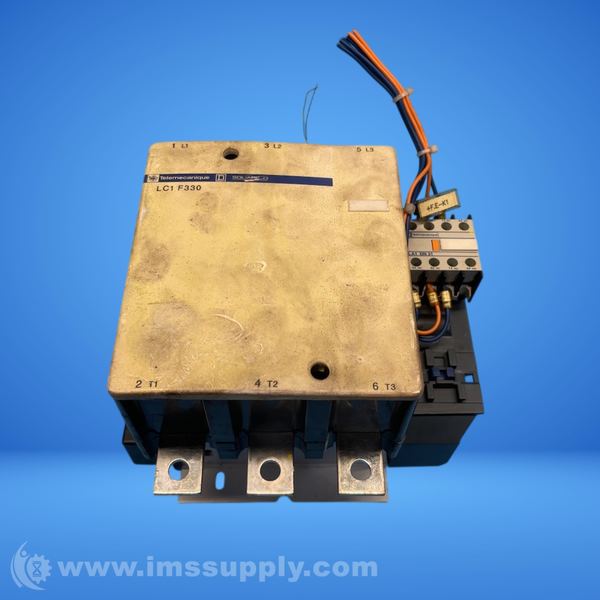

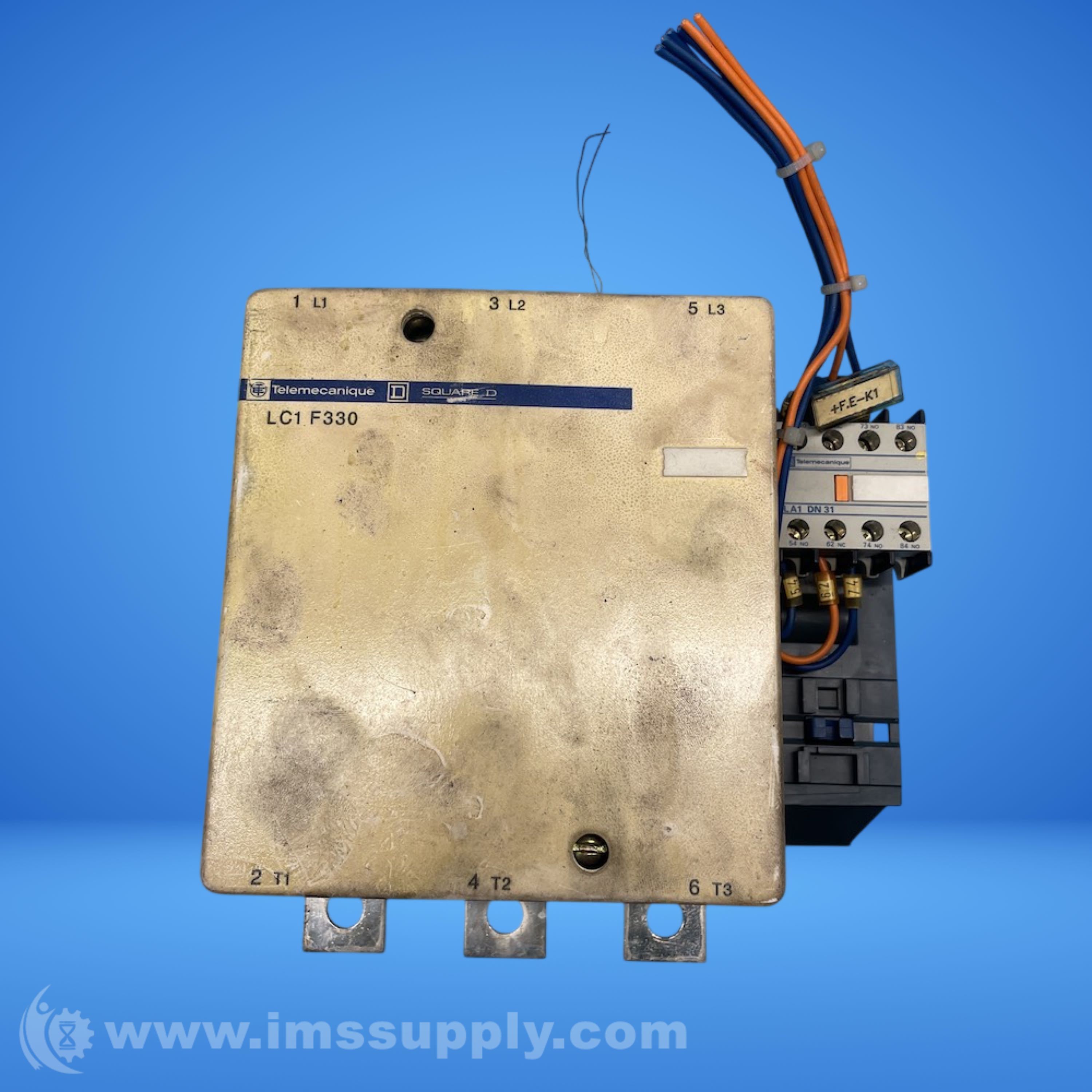

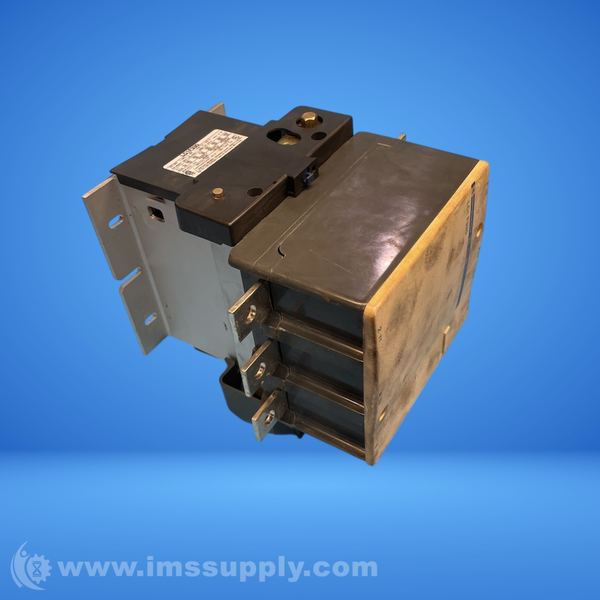

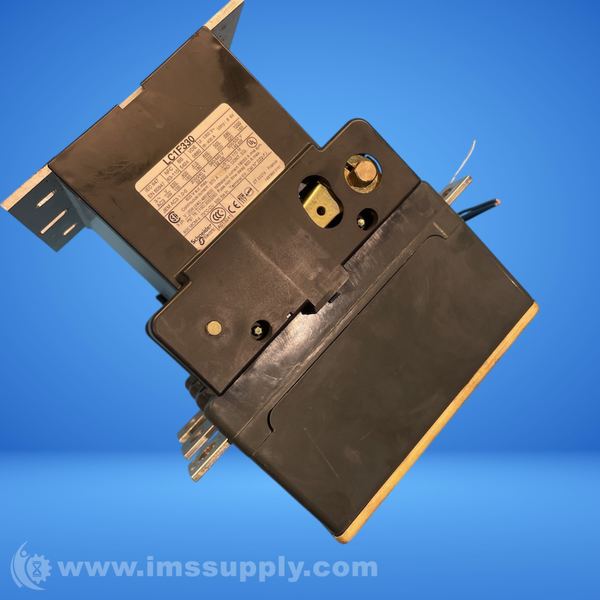

Schneider Electric LC1F330 Contactor
3-pole contactor with 330A current rating, suitable for motor control applications up to 200kW power rating. Features bolt terminals and coil-less design.
Specifications
- Manufacturer: Schneider Electric
- Part Number: LC1F330
- Product Type: Contactor
- Poles: 3
- Contact Configuration: 3 Normally Open (NO)
- Rated Operational Voltage (Ue): = 1000 V AC, 50/60 Hz
- Rated Insulation Voltage (Ui): 1000 V
- Rated Impulse Withstand Voltage (Uimp): 8 kV
- Thermal Current (Ith): 400 A at 40 degrees C
- Rated Making Capacity (Irms): 3300 A AC
- Rated Breaking Capacity: 2640 A AC
- Maximum Operating Rate: 2400 cycles/hour at 55 degrees C
- Power Dissipation per Pole: 44 W AC-1
- Operating Temperature: -5…55 degrees C
- Storage Temperature: -60…80 degrees C
- Operating Altitude: Up to 3000 m without derating
- Width: 213 mm
- Depth: 219 mm
- Net Weight: 9.5 kg
- Contact Current Rating: 330 A
- Power Rating: 200 kW
- Termination: Screw
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
