SCHNEIDER ELECTRIC M9F42110 MINIATURE CIRCUIT BREAKER
Quick Overview
Manufactured By: SCHNEIDER ELECTRIC
Manufacturer Part Number: M9F42110
IMS Product Code: 2166229
Packaging: Sold Individually
Description:

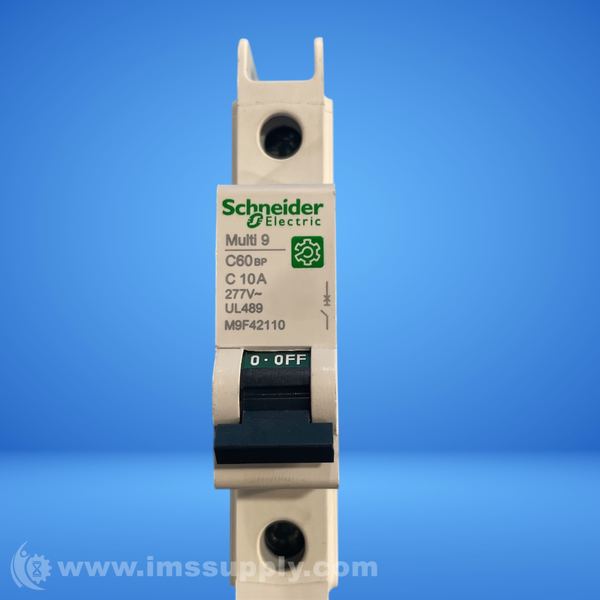

Schneider Electric M9F42110 Miniature Circuit Breaker
1-pole miniature circuit breaker with 10A rated current and C tripping curve, rated for 240/277/415 VAC and 60 VDC, with 10kA interrupt capacity.
Specifications
- Rated Current: 10 A
- Number of Poles: 1
- Trip Curve: C
- Rated Voltage: 240/277/415 VAC, 60 VDC
- Interrupt Capacity: 10 kA
- Standards: EN/IEC 60898-1, EN/IEC 60947-2
- Dimensions: 18mm x 103mm x 72mm
- Degree of Protection: IP20
- Operating Temperature: -30�C to 70�C
- Connection Type: Tunnel Terminal
- Mounting Type: Clip-On/DIN Rail
- Trip Type: Thermal Magnetic
- Wire Size: 18 to 8 AWG
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
