SCHNEIDER ELECTRIC M9F42363 MINIATURE CIRCUIT BREAKER
Quick Overview
Manufactured By: SCHNEIDER ELECTRIC
Manufacturer Part Number: M9F42363
IMS Product Code: 1945939
Packaging: Box of 4
Description:

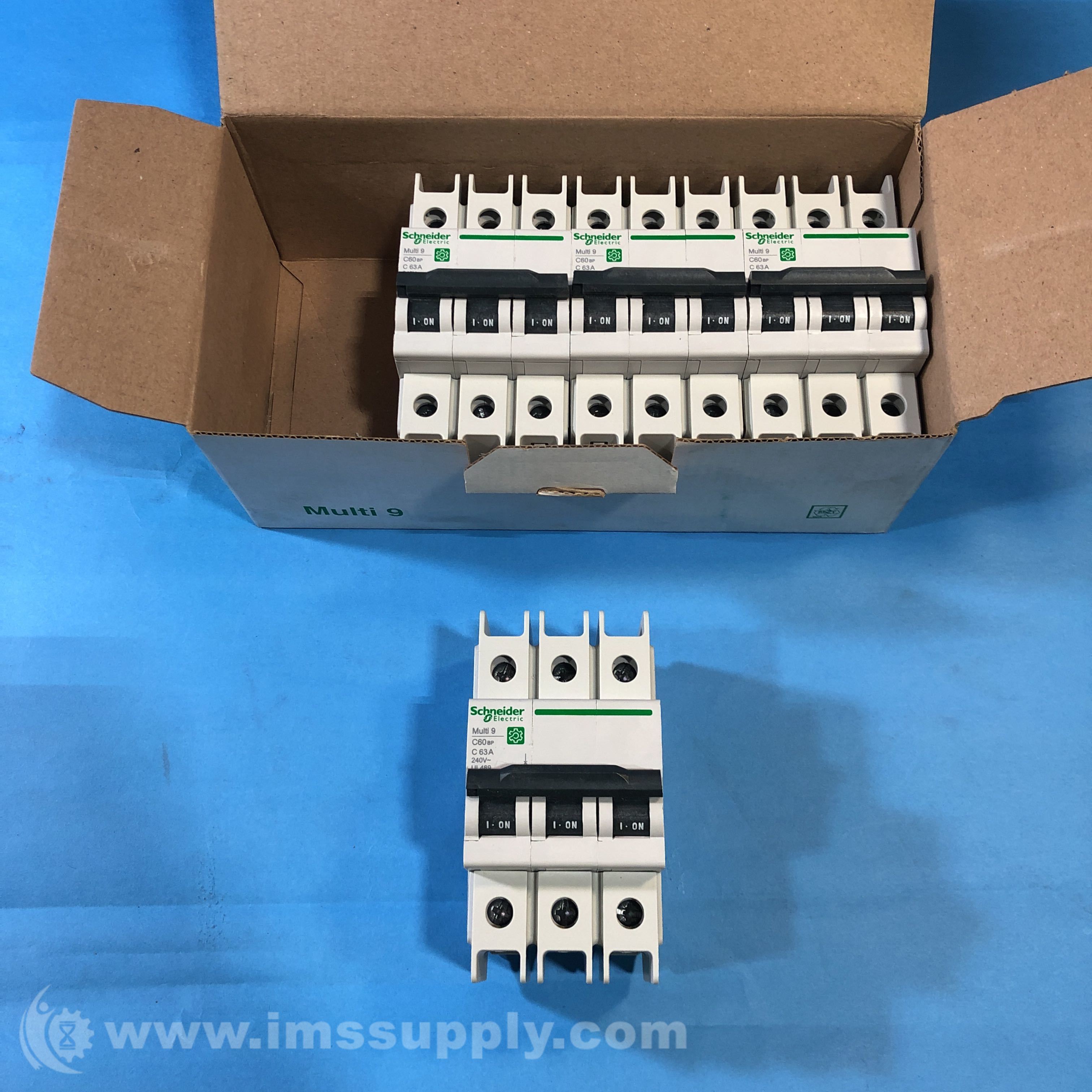

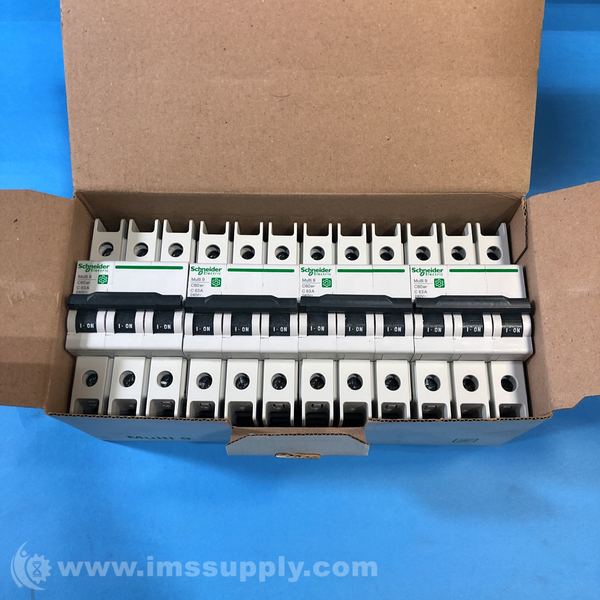

Schneider Electric M9F42363 Miniature Circuit Breaker
Schneider Electric Multi 9 C60BP miniature circuit breaker with 3 poles, 63A rated current, and C tripping curve. Made in France with IP20 protection and DIN rail mounting.
Specifications
- manufacturer: Schneider Electric
- part_number: M9F42363
- series: C60BP
- number_of_poles: 3
- rated_current: 63A
- tripping_curve: C
- rated_short_circuit_breaking_capacity: 10kA
- ue_operational_voltage: 240VAC
- ui_rated_insulation_voltage: 500VAC
- uimp_rated_impulse_withstand_voltage: 6kV
- dimensions: (W) 54mm x (H) 103mm x (D) 72mm
- degree_of_protection: IP20
- operating_temperature: -30C to 70C
- storage_temperature: -40C to 80C
- mounting_type: DIN Rail
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 3 In Stock
Ships today if ordered in the next 11 hours and 23 minutes.
