SCHNEIDER ELECTRIC M9U21103 MINIATURE CIRCUIT BREAKER
Quick Overview
Manufactured By: SCHNEIDER ELECTRIC
Manufacturer Part Number: M9U21103
IMS Product Code: 2173990

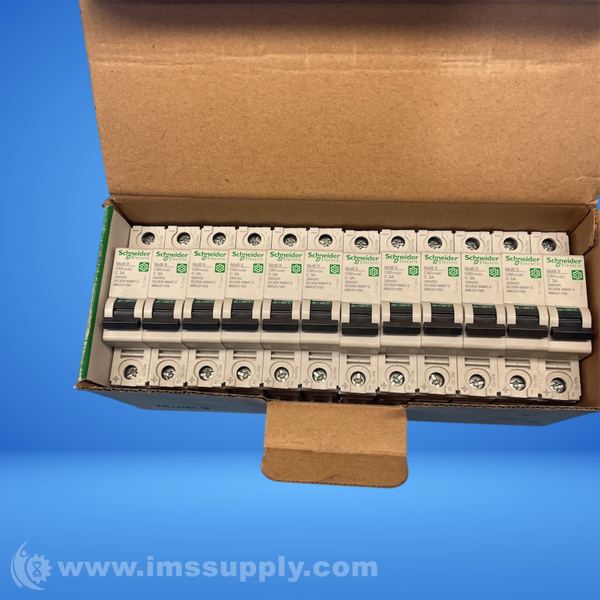

Packaging: Box of 12
Description:

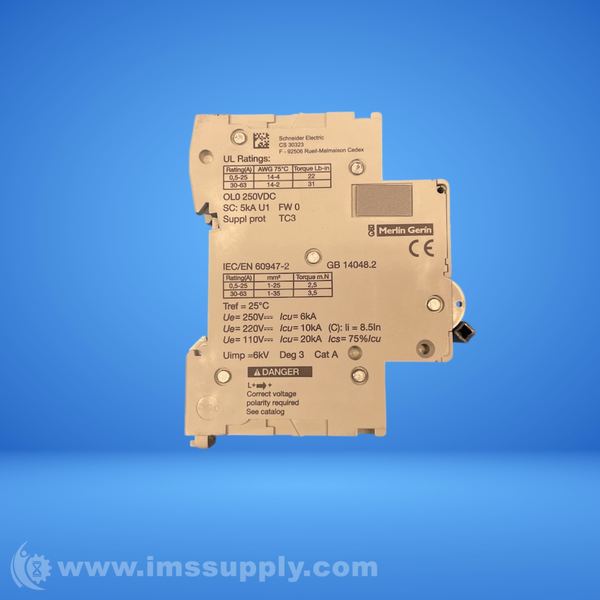

Schneider Electric M9U21103 Miniature Circuit Breaker
Low voltage miniature circuit breaker dedicated to direct current, 1P with 1 protected pole, 3A rated current and C tripping curve.
Specifications
- Mounting Type: DIN Rail
- Rated Current: 3A
- Rated Voltage: 250V DC
- Breaking Capacity: 10 kA Icu at 220 V DC EN/ IEC 60947-2, 5kA (UL 1077), 6kA (IEC/EN 60947-2)
- No. of Poles: 1
- Curve Code/Type: C
- Tightening Torque: 2.5 N.m
- Ambient Temperature: -25 to 70 degrees C
- Width: 18 mm
- Height: 81 mm
- Depth: 73 mm
- Weight: 0.128 kg
- IP Rating: IP20
- Rated Impulse Withstand Voltage: 6 kV
- Ui Rated Insulation Voltage: 500 V DC
- Ue Rated Operational Voltage: 250 V DC
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships on Monday, October 5, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
