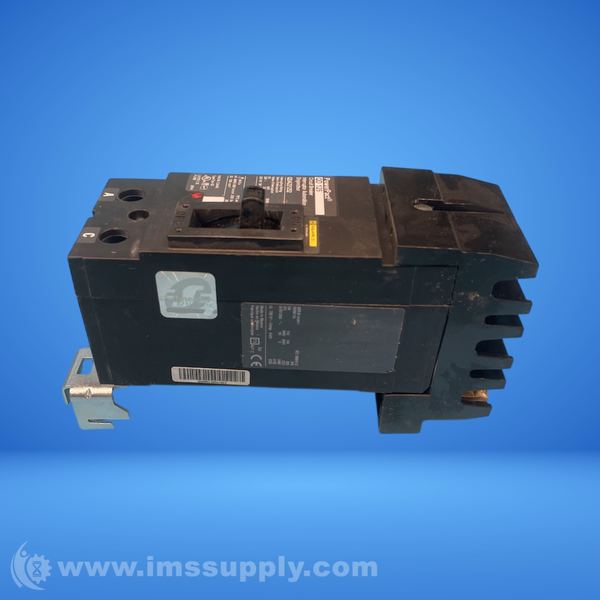

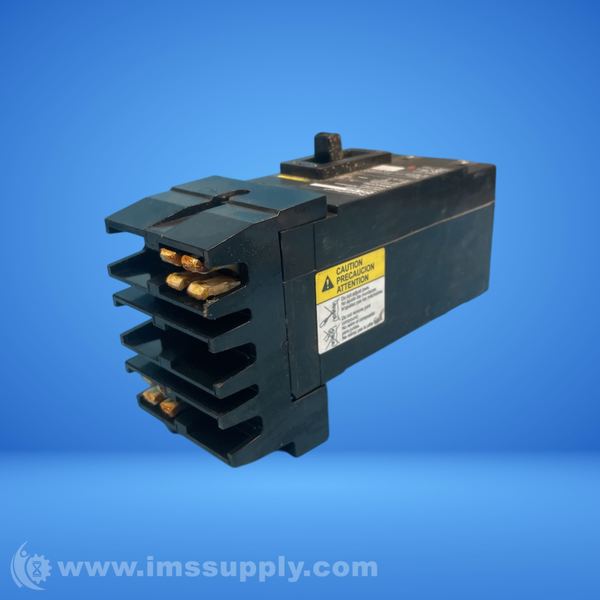

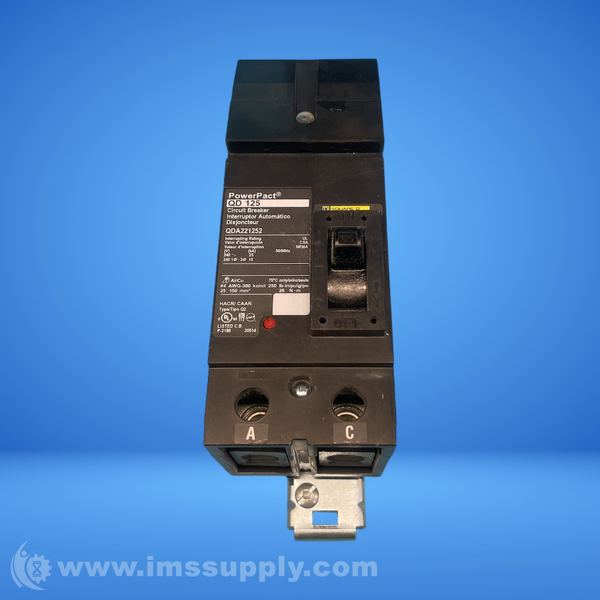

SCHNEIDER ELECTRIC QDA221252 MOLDED CASE CIRCUIT BREAKER
Quick Overview
Manufactured By: SCHNEIDER ELECTRIC
Manufacturer Part Number: QDA221252
IMS Product Code: 2133473
Packaging: Sold Individually
Description:
Schneider Electric QDA221252 Molded Case Circuit Breaker
Schneider Electric QDA221252 is a molded case circuit breaker featuring a current rating of 125 A, designed with two poles, and rated for 240VAC operational voltage. It provides thermal magnetic trip protection and has an interrupting rating of 25kA at 240VAC.
Specifications
- Amp: 125
- Application: Power Distribution
- Approval: UL, CSA
- Breaking Capacity: 25 kA
- Breaking Capacity Code: D
- Category: Molded Case Circuit Breakers
- Color: Black
- Connection: I-Line Style Plug-In
- Control Style: Switch, Analog/Mechanical
- Control Type: Operating Handle
- Current Rating: 125 Ampere
- Current Type: AC
- Depth: 3.93 in
- Electrical Connection: I-Line connection, line lugs, load
- Features: Trip Indicator
- Frame Type: Q
- Functions: LI - Long-Time and Instantaneous
- Height: 6.47 in
- Interrupting Rating: 25 Kiloampere at 240 VAC (UL/CSA), 10 Kiloampere at 240 VAC (IEC)
- Interruption Type: Thermal Circuit Breaker
- Item Height: 6.47 in
- Length: 6.47
- Line Rated Current: 125 A
- Local Signalling: 1 trip indicator (green)
- Material: Plastic, ABS/Plastic
- Maximum Amperage: 125 A
- Mechanical Durability: 1000 cycles loaded, 5000 cycles no load
- Minimum Operating Frequency: 50 Hz
- Mounting Mode: I-Line bracket
- Mounting Style: Bolt-On, I-Line
- Mounting Type: Plug-On
- Number in Pack: 1
- Number of Phases: 2
- Number of Poles: 2
- Number of Ports: 2
- Number of Positions: 2
- Operation Method: On/Off
- Phase: 1
- Pole: 2
- Product Line: PowerPact
- Product Type: Circuit Breaker
- Protection: Thermal Magnetic
- Protection Properties: Short Circuit Protection
- Rated Operational Voltage: 240 V
- Size: 3 Inch W x 3.93 Inch D x 6.47 Inch H
- Standards: UL, CSA, NEMA, NOM-003-SCFI-2000
- Terminal Wire Size: 4 AWG to 300 KCMIL (Aluminum/Copper)
- Tightening Torque: 28-28 N.m 25-150 mm (AWG 4...300 kcmil)
- Trip Setting: 1200 to 2400 Ampere
- Tripping Characteristics: Type D
- Tripping Method: Thermal Magnetic
- Type: QDA
- Ue Rated Operational Voltage: 240 V AC 50/60 Hz UL
- Uimp Rated Impulse Withstand Voltage: 8 kV UL
- Volt: 240
- Voltage Rating: 240 VAC at 50/60 Hz (UL/CSA/NOM/IEC)
- Width: 3.00 in
Used (Special):
Bracket attached.
