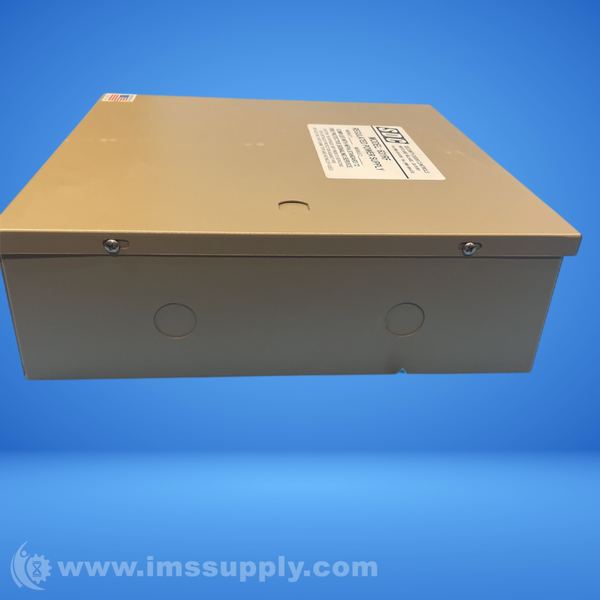

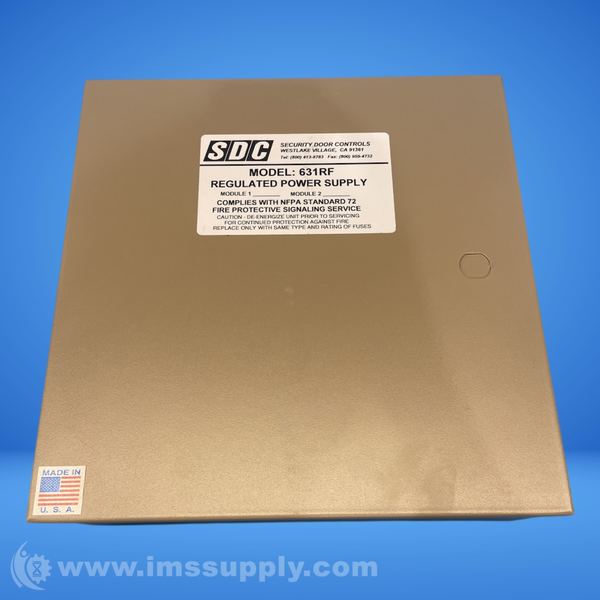

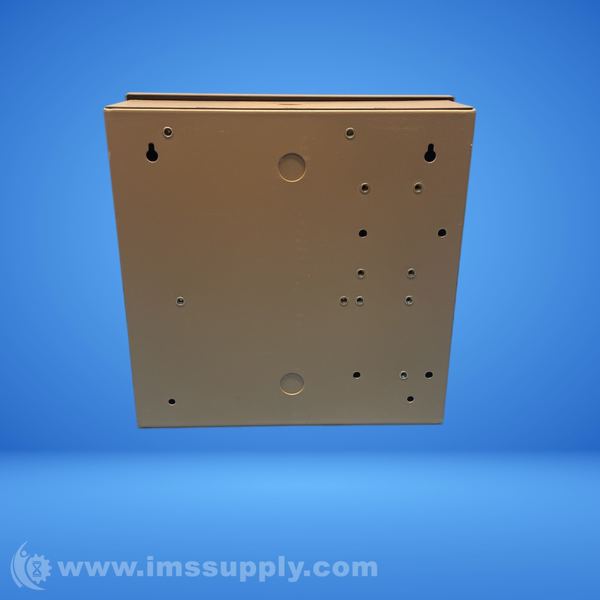

SDC 631RF 1.5 AMP POWER SUPPLY
Quick Overview
Manufactured By: SDC
Manufacturer Part Number: 631RF
IMS Product Code: 2165403
Packaging: Sold Individually
Description:
SDC 631RF 1.5 Amp Power Supply
A regulated and filtered linear DC power supply for access controls and electric locks, with field selectable dual voltage and Class 2 output.
Specifications
- Output: 1.5 Amp DC Power
- Voltage: 12/24 VDC
- Output Type: Regulated and filtered linear DC power
- Class: Class 2
- Voltage Selection: Field selectable dual voltage
- Fire/Emergency Release Input: Yes
- Battery Charging Circuit: Isolated
- Low Battery Disconnect: Yes
- Surge Protection: Input and output surge protection
- Status Indicator: Visual status indicator (LED)
- Input: 115VAC, 800 mA, 50/60Hz direct wire
- Dimensions: 12 inches L x 12 inches W x 4 inches D, 20 GA
- Material: Steel, 20 Ga., (.912mm)
