SEAL MASTER 2-111 BEARING INSERT
Quick Overview
Manufactured By: SEAL MASTER
Manufacturer Part Number: 2-111
IMS Product Code: 1836049
Packaging: Sold Individually
Description:

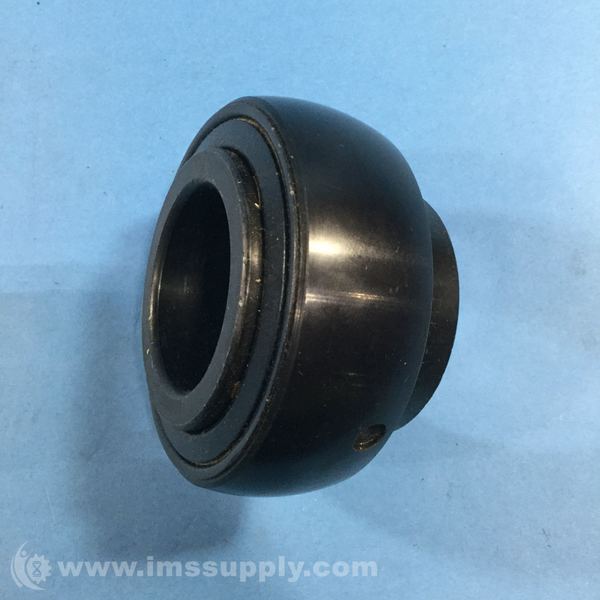

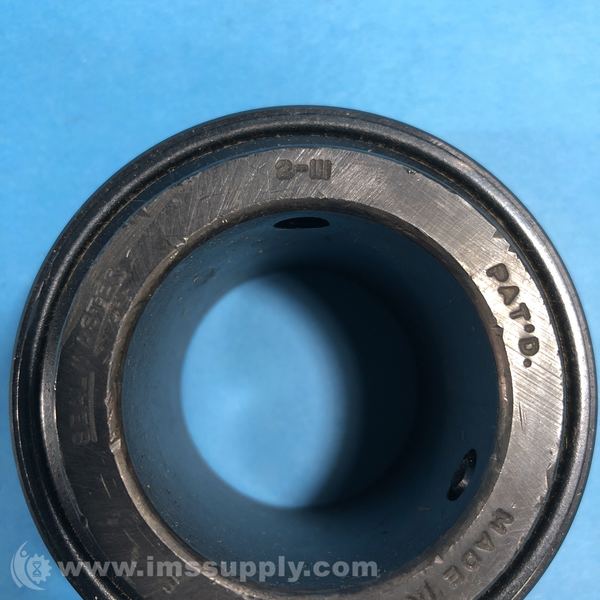

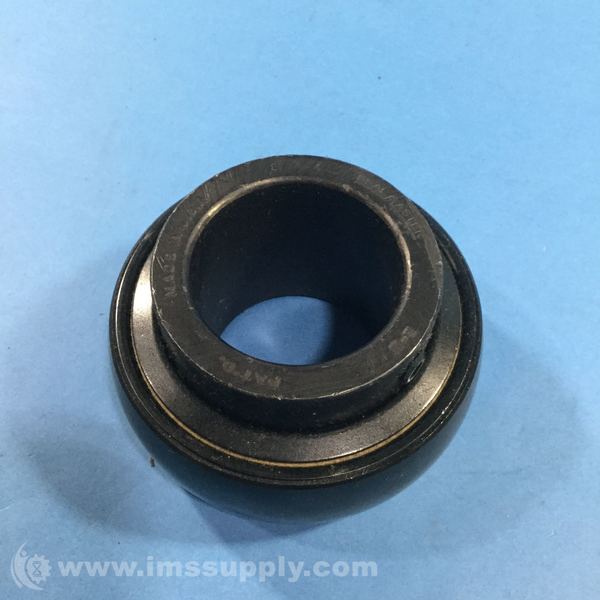

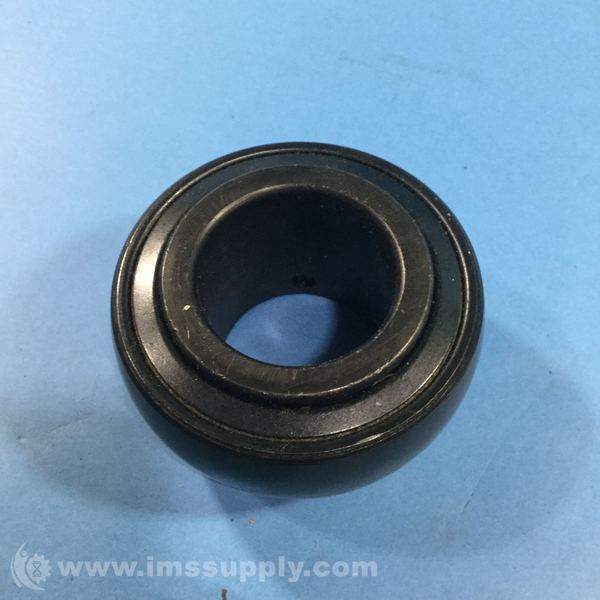

Seal Master 2-111 Bearing Insert
Bearing insert with 6.9375" bore, single set screw lock, and felt seal.
Specifications
- Ability to Relubricate: Yes
- Bearing Insert Coating: Black Oxide Coated
- Bore Shape: Straight
- Cage Material: PPS
- Centerline to Front Face (in): 1.188
- Duty: Standard
- I.D.: 1.6875
- Inner Race Heat Treat Method: Zone-Hardened
- Inner Race Length (in): 1.938
- Inner Race Profile: Wide Inner Ring
- Insert Material: 52100 Bearing Steel, Black Oxided
- Internal Clearance: Standard
- Locking: Set Screw
- Lubrication Type: Lithium Complex NLGI 2 Grease
- Max Operating Temperature (F): 220
- Maximum Speed (RPM): 3800
- Misalignment Capability: �2.0� Misalignment - Static Only
- Misalignment Type: Static Only
- Outer Race OD (in): 3.347
- Outer Race Profile: Spherical
- Overall Width (in): 1.938
- Precision Rating: ABEC 1
- Radial Dynamic Load Capacity (lb): 7901
- Radial Static Load Capacity (lb): 5139
- Retainer Type: Land Riding Retainer
- Rolling element: Ball Bearing
- Seal: Felt Labyrinth Seal
- Set Screw Thread: 5/16-24
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
