SEALMASTER MP-31 PILLOW BLOCK BEARING
Quick Overview
Brand: SEALMASTER
Part Number: MP-31
IMS Product Code: 2148939
Packaging: Sold Individually
Description:

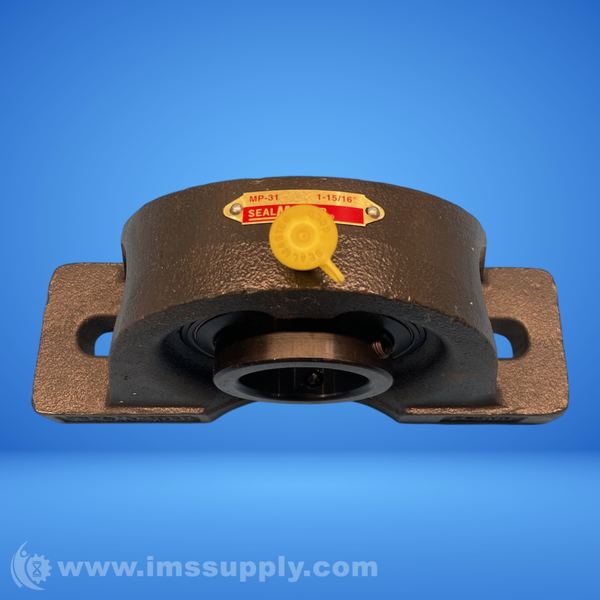

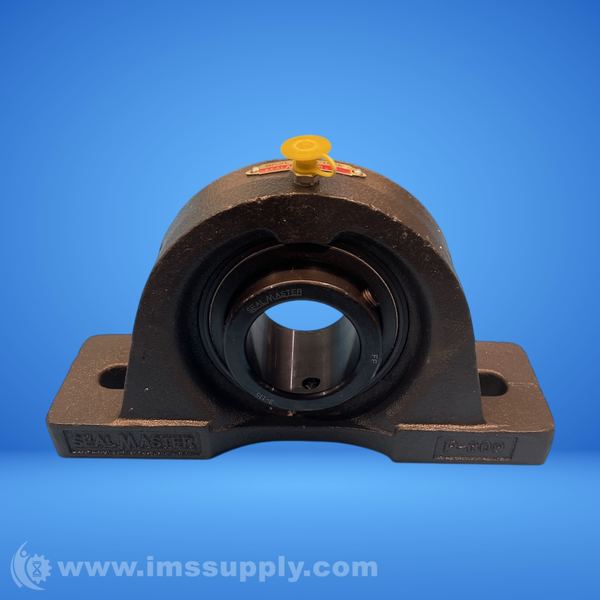

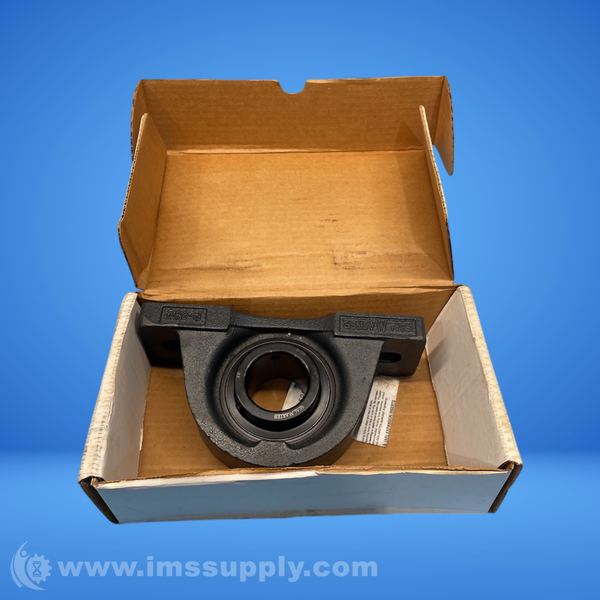

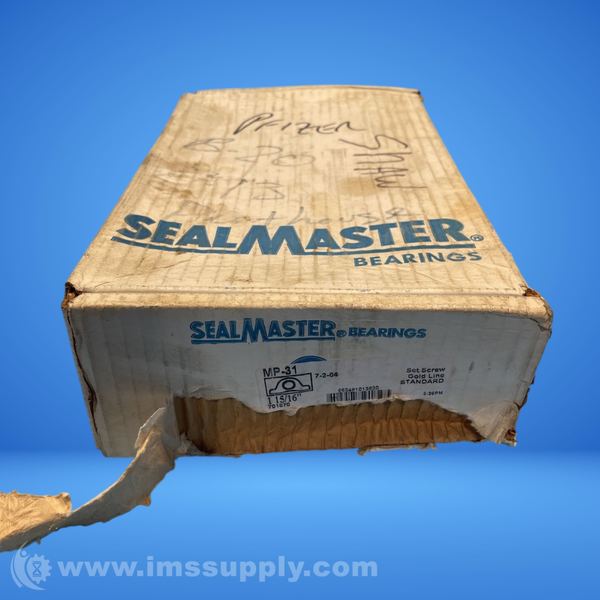

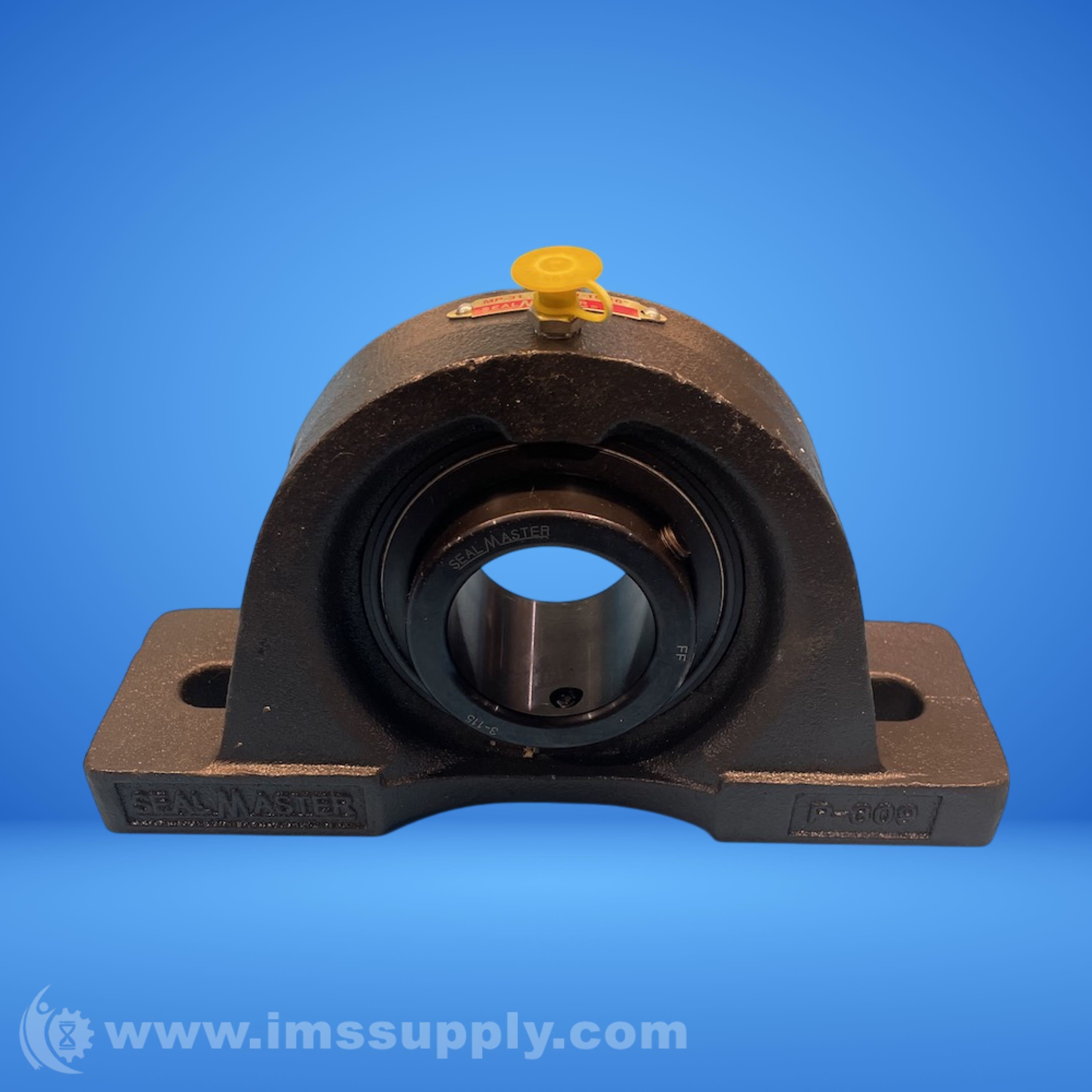

Sealmaster MP-31 Pillow Block Bearing
Pillow block ball bearing unit with 2-bolt base, 1-15/16 in bore, cast iron housing, and felt labyrinth seal.
Specifications
- Mounting Type: 2-Bolt Base
- Bore Diameter: 1-15/16 in
- Bolt Center To Center Length: 5.9380 to 7.5630 in
- Base To Bore Centerline: 2.5000 in
- Duty Type: Medium Duty
- Locking Device: Set Screw
- Seal Type: Felt Labyrinth Seal
- Housing Material: Cast Iron
- Expansion Type: Non-Expansion Bearing (Fixed)
- Overall Height: 5.0940 in
- Overall Length: 9.5000 in
- Base Width: 2.8750 in
- Overall Width: 1.2188 in
- Insert Material: 52100 Bearing Steel, Black Oxided
- Bolt Size: 0.6250 in
- Max Operating Temperature: 220 °F
- Radial Dynamic Load Capacity: 9752 lbf
- Radial Static Load Capacity: 6601 lbf
- Max Rpm: 3250 rpm
- Lubrication Type: Lithium Complex NLGI 2 Grease
- Series: MP
- Misalignment Angle: ±2.0° Misalignment - Static Only
- Type Of Bearing: Ball Bearing
- Weight: 11.6 lbs
- Number Of Mounting Holes: 2
- Ability to Relubricate: Yes
- Cage Material: PPS - Polyphenylene Sulfide
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 11 hours and 21 minutes.
