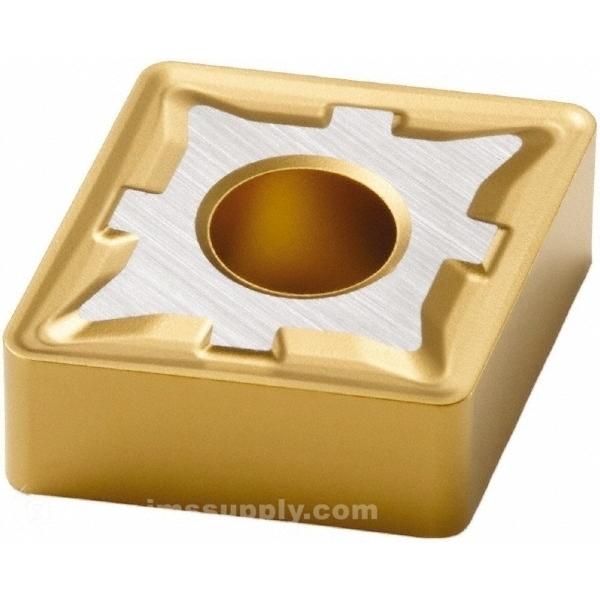

SECO TOOLS 38256 INSERT TURNING SIZE 643 CARBIDE GRADE TP200 CNMG
Quick Overview
Manufactured By: SECO TOOLS
Manufacturer Part Number: 38256
IMS Product Code: 1790550
Packaging: Sold Individually
Description:
Seco Tools 38256 Insert Turning Size 643 Carbide Grade Tp200 Cnmg Style Diamond Shape Ticn Ai203 Tin Coated 80 Degree 3/4 In Inscribed Circle 3/64 In Corner Radius Chipbreaker M5
Specifications:
| Insert Style | CNMG |
| Insert Size | 643 |
| Material | Carbide |
| Inscribed Circle | 19.05 |
| Inscribed Circle | 0.7500 |
| Inscribed Circle | 3/4 |
| Thickness | 1/4 |
| Thickness | 0.2500 |
| Corner Radius | 3/64 |
| Corner Radius | 0.0469 |
| Manufacturer's Grade | TP200 |
| Coating | TiCN/Al2O3/TiN |
| Material Grade | C6 |
| Chip breaker | M5 |
| Hole Diameter (Decimal Inch) | 0.3130 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M; K |
| Included Angle | 80 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
