SECO 49981, CNMG432 M3 GRADE TP3500 CARBIDE TURNING INSERT
Quick Overview
Manufactured By: SECO TOOLS
Manufacturer Part Number: 49981
IMS Product Code: 1791195
Packaging: Sold Individually
Description:

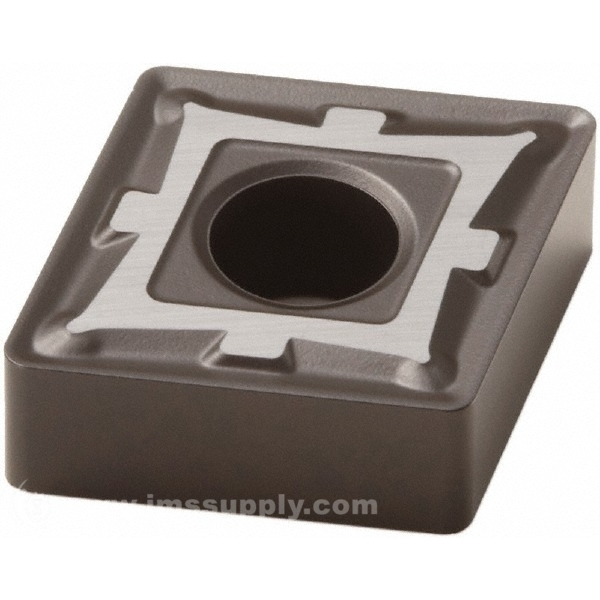

Seco 49981, CNMG432 M3 Grade TP3500 Carbide Turning Insert
Specifications:
- Insert Style CNMG
- Insert Size 432
- Material Carbide
- Inscribed Circle 12.70
- Inscribed Circle 0.5000
- Inscribed Circle 1/2
- Thickness 3/16
- Thickness 0.1875
- Corner Radius 1/32
- Corner Radius 0.0312
- Manufacturer's Grade TP3500
- Coating TiCN/Al2O3
- Material Grade C5
- Chip breaker M3
- Hole Diameter (Decimal Inch) 0.2030
- Relief Angle 0
- Coating Process Duratomic
- Primary Workpiece Material P
- Secondary Workpiece Material M
- Included Angle 80
- Insert Hand Neutral
- Insert Holding Method Pin & Clamp
- Shape Diamond
