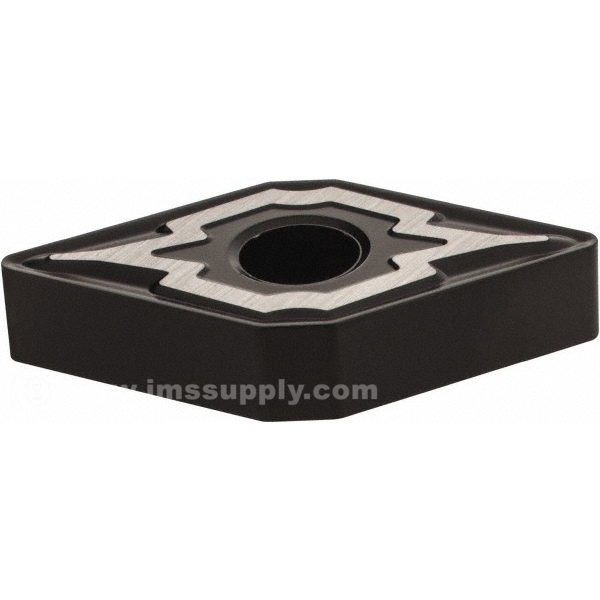

SECO 50350, DNMG433 M3 GRADE TP3500 CARBIDE TURNING INSERT
Quick Overview
Manufactured By: SECO TOOLS
Manufacturer Part Number: 50350
IMS Product Code: 1790992
Packaging: Sold Individually
Description:
Seco 50350, DNMG433 M3 Grade TP3500 Carbide Turning Insert
TiCN/Al2O3 Finish, 55° Diamond, 1/2" Inscr Circle, 3/16" Thick, 3/64" Corner Radius
Specifications:
- Insert Style: DNMG
- Insert Size: 433
- Material: Carbide
- Inscribed Circle (mm): 12.70
- Inscribed Circle (Decimal Inch): 0.5000
- Inscribed Circle (Inch): 1/2
- Thickness (Inch): 3/16
- Thickness (Decimal Inch): 0.1875
- Corner Radius (Inch): 3/64
- Corner Radius (Decimal Inch): 0.0469
- Manufacturer's Grade: TP3500
- Coating: TiCN/Al2O3
- Material Grade: C5
- Chip breaker: M3
- Hole Diameter (Decimal Inch): 0.2030
- Relief Angle: 0
- Coating Process: Duratomic
- Included Angle: 55
- Insert Hand: Neutral
- Insert Holding Method: Pin & Clamp
- Shape: Diamond
