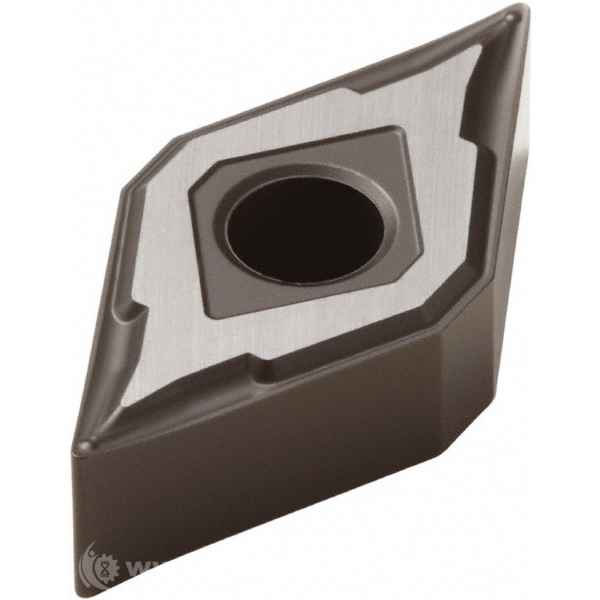

SECO 71066, DNMG432 MF2 TP0500 GRADE CARBIDE TURNING INSERT
Quick Overview
Manufactured By: SECO TOOLS
Manufacturer Part Number: 71066
IMS Product Code: 1791018
Packaging: Sold Individually
Description:
Seco 71066, DNMG432 MF2 TP0500 Grade Carbide Turning Insert
Specifications:
| Insert Style | DNMG |
| Insert Size | 432 |
| Material | Carbide |
| Inscribed Circle | 0.5000 |
| Inscribed Circle | 1/2 |
| Thickness | 3/16 |
| Thickness | 0.1875 |
| Corner Radius | 1/32 |
| Corner Radius | 0.0313 |
| Manufacturer's Grade | TP0500 |
| Coating | TiCN/Al2O3 |
| Chip breaker | MF2 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Included Angle | 55 |
| Maximum Depth of Cut (Decimal Inch) | 0.1400 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
