SECO 77373,SPGX0903 C1 T400D GRADE CARBIDE INDEXABLE INSERT DRILL
Quick Overview
Manufactured By: SECO TOOLS
Manufacturer Part Number: 77373
IMS Product Code: 1791108
Packaging: Sold Individually
Description:

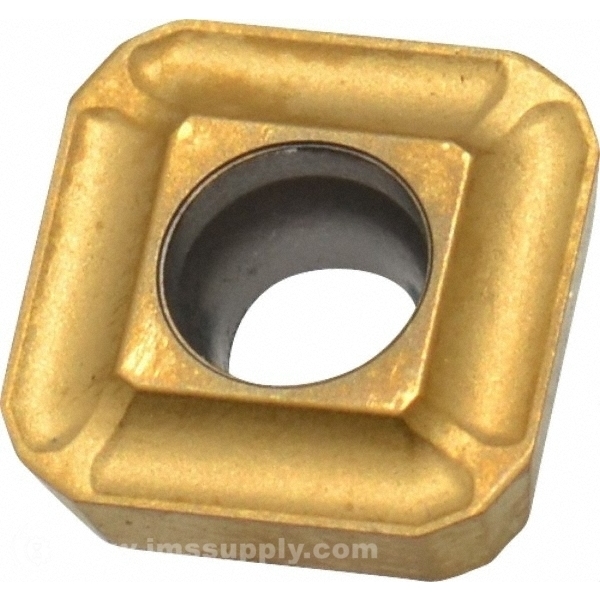

Seco 77373, SPGX0903 C1 T400D Grade Carbide Indexable Insert Drill
TiAlN/TiN Coated, Square, 3/8" Inscr Circle, 3.18mm Thick, 11° Relief Angle
Specifications:
| Insert Style | SPGX |
| Insert Size | 0903 |
| Material | Carbide |
| Material Grade | C1 |
| Manufacturer's Grade | T400D |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Thickness (mm) | 3.18 |
| Hole Diameter (Decimal Inch) | 0.1380 |
| Relief Angle | 11 |
| Included Angle | 90 |
| Coating | TiAlN/TiN |
| Coating Process | PVD |
| Shape | Square |
| Chipbreaker | C1 |
