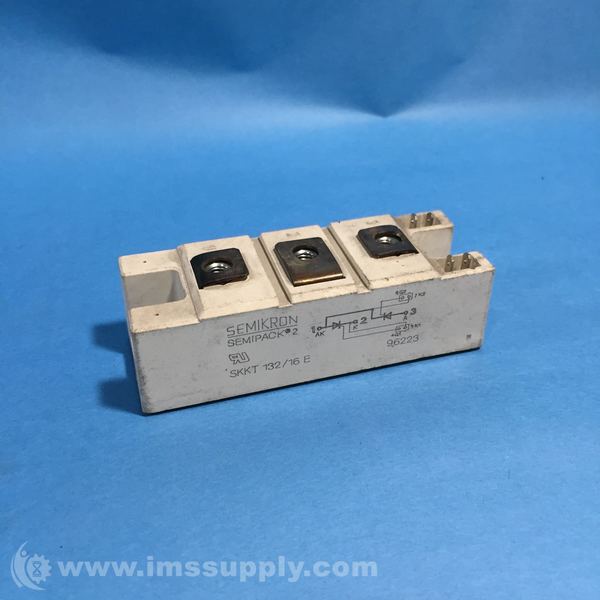

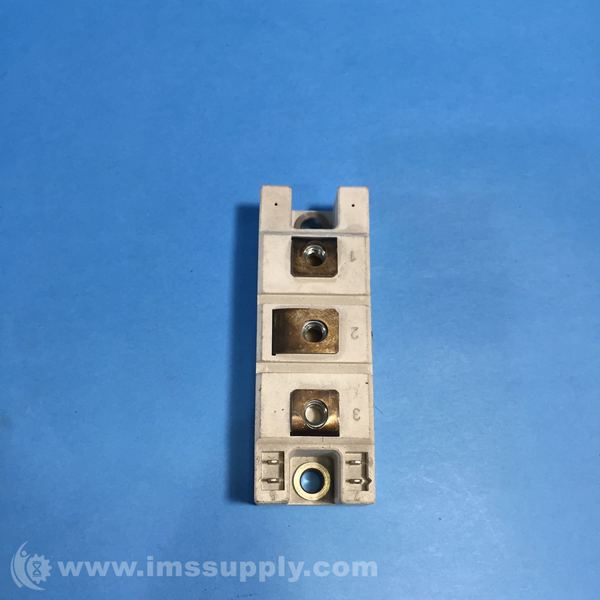

SEMIKRON SKKT 132/16 E THYRISTOR MODULE
Quick Overview
Manufactured By: SEMIKRON
Manufacturer Part Number: SKKT-132/16E
IMS Product Code: 1201725
Packaging: Sold Individually
Description:
Semikron SKKT 132/16 E Thyristor Module
Thyristor/Diode Module, SEMIPACK 2, 1600V, 130A
Specifications
- Dimensions (LxWxH): 94x34x30
- Current (A): 137 A
- Surge current (A): 4000 A
- Voltage (V): 1600 V
- Technology: Thyristor / Diode
- Topology: Rectifier
- Type: SEMIPACK 2
- Max. off-state voltage: 1.6kV
- Load current: 130A
- Max. forward voltage: 1.8V
- Max. forward impulse current: 4.7kA
- Gate current: 150mA
- Gate Trigger Voltage Max: 2V
- Holding Current Max: 400mA
- On State RMS Current: 220A
- Peak Non Repetitive Surge Current: 4.7kA
- Repetitive Peak Reverse Voltage: 1.6kV
- Operating Temperature Max: 125 degrees C
- Weight: 0.165 Kilogram
