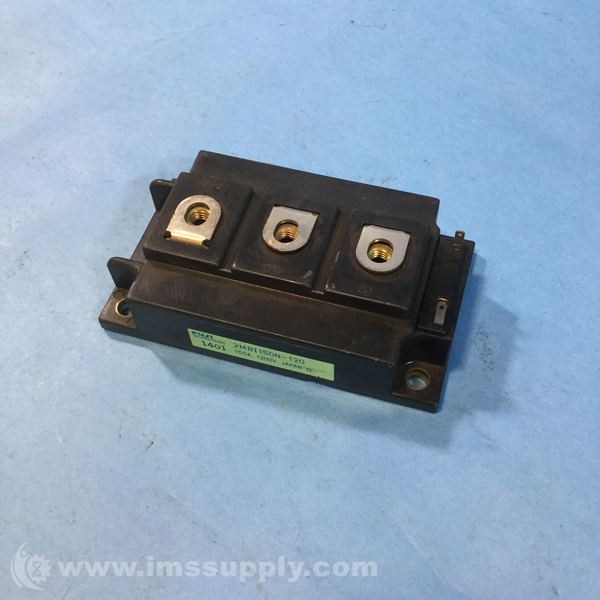

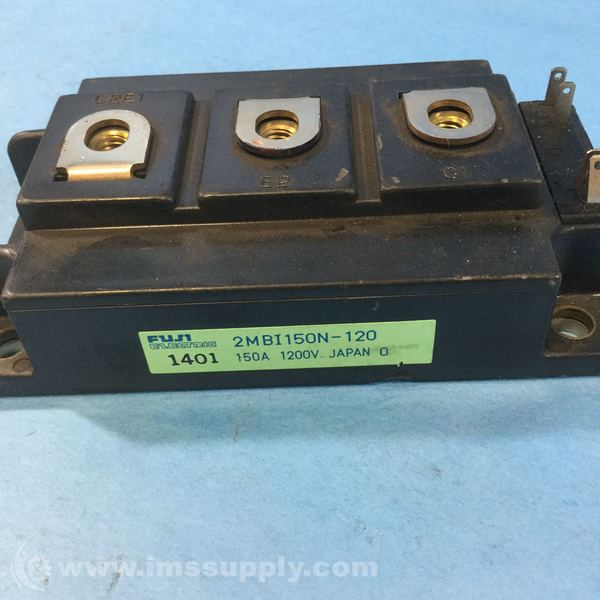

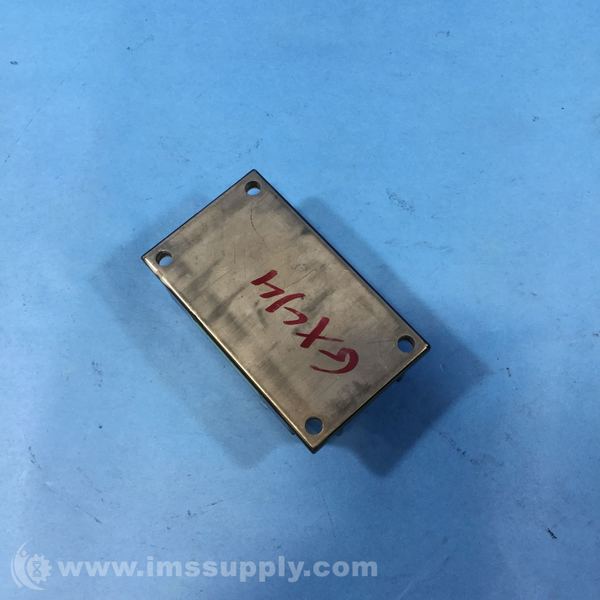

FUJI 2MBI150N-120 IGBT MODULE
Quick Overview
Manufactured By: FUJI ELECTRIC
Manufacturer Part Number: 2MBI150N-120
IMS Product Code: 751383
Packaging: Sold Individually
Description:
Fuji 2MBI150N-120 IGBT Module
IGBT Module, 1200 V, 150 A
Specifications
- Collector-Emitter Voltage: 1200 V
- Gate-Emitter Voltage: ± 20 V
- Continuous Collector Current: 150 A
- Max. Power Dissipation: 1100 W
- Operating Temperature: +150 ?
- Storage Temperature: -40 ~ +125 ?
- Isolation Voltage A.C. 1min.: 2500 V
- @I(C) (A) (Test Condition): 150
- t(d)off Max. (s) Off time: 1.5u
- V(CE)sat Max.(V): 3.3
- Absolute Max. Power Diss. (W): 1.2k
- V(BR)CES (V): 1.2k
- I(C) Abs.(A) Collector Current: 150
- t(r) Max. (s) Rise time: 500n
- Circuits Per Package: 2
- Package: MODULE-var
- @V(GE) (Test Condition): 15
- td(on) Max (s) On time delay: 1.2u
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
