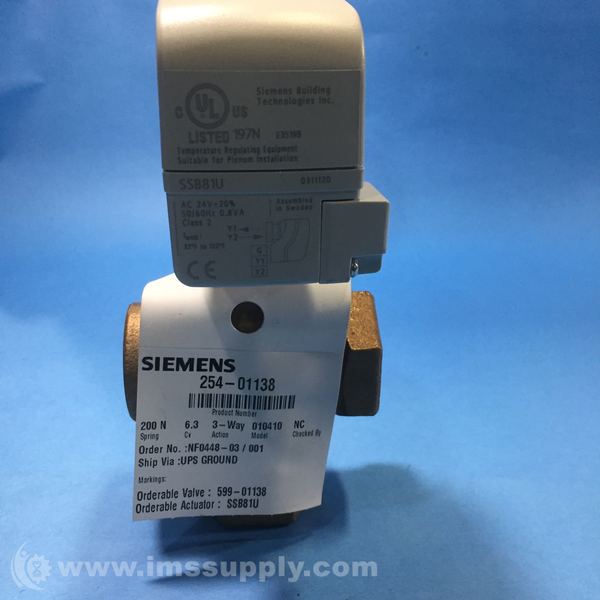

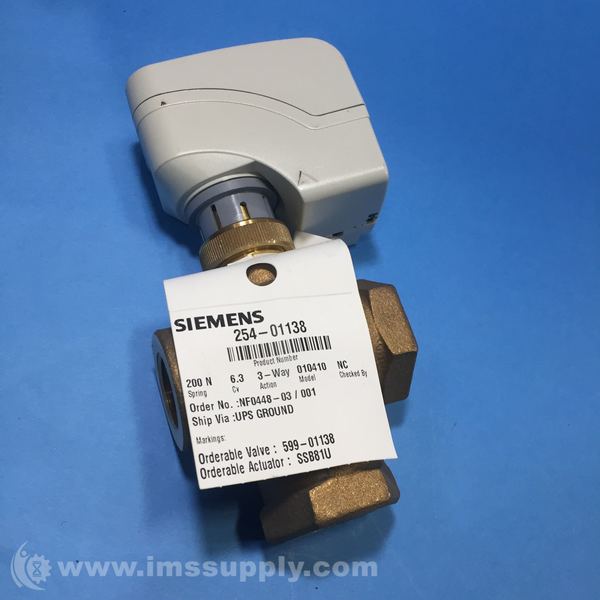

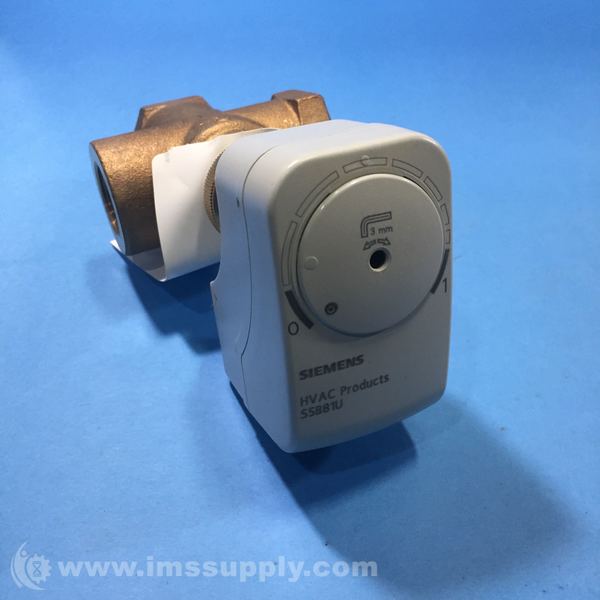

SIEMENS 254-01138 3-WAY ZONE CONTROL VALVE
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 254-01138
IMS Product Code: 1878359
Packaging: Sold Individually
Description:
Siemens 254-01138 3-Way Zone Control Valve
3-Way Zone Control Valve with Non-Spring Return Electronic Valve Actuator, 24 VAC, 45 in-lb, Floating Control Signal, 150 Second Run Time, 3/4" Female NPT Connection, 6.3 Cv, Water Mix, Brass Trim, NEMA 1 Housing
Specifications
- Type: 3-Way Zone Control Valve
- Size: 3/4"
- Cv: 6.3
- Configuration: Water Mix
- Connection: F x F
- Actuator: Non-Spring Return Electronic Valve Actuator
- Voltage: 24 VAC
- Torque: 45 in-lb
- Control Signal: Floating
- Run Time: 150 Second
- Close-Off Pressure: 30 psi
- Flow Characteristic: Modified Equal Percentage
- Medium Temperature Range: 35-250 degrees F
- Body Pattern: Three-Way Mixing
- Valve Style: Globe
- Power Consumption: 0.8 VA
- Electrical Connection: Terminal Block For Plenum Cable
- Housing: NEMA 1
- Service: Water, Glycol Solutions Up To 50%
Used (Special):
Missing actuator.
Availability: 1 In Stock
Ships today if ordered in the next 5 hours and 4 minutes.
