SIEMENS 255-01129 2-WAY BRASS CONTROL VALVE
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 255-01129
IMS Product Code: 2148259
Packaging: Sold Individually
Description:

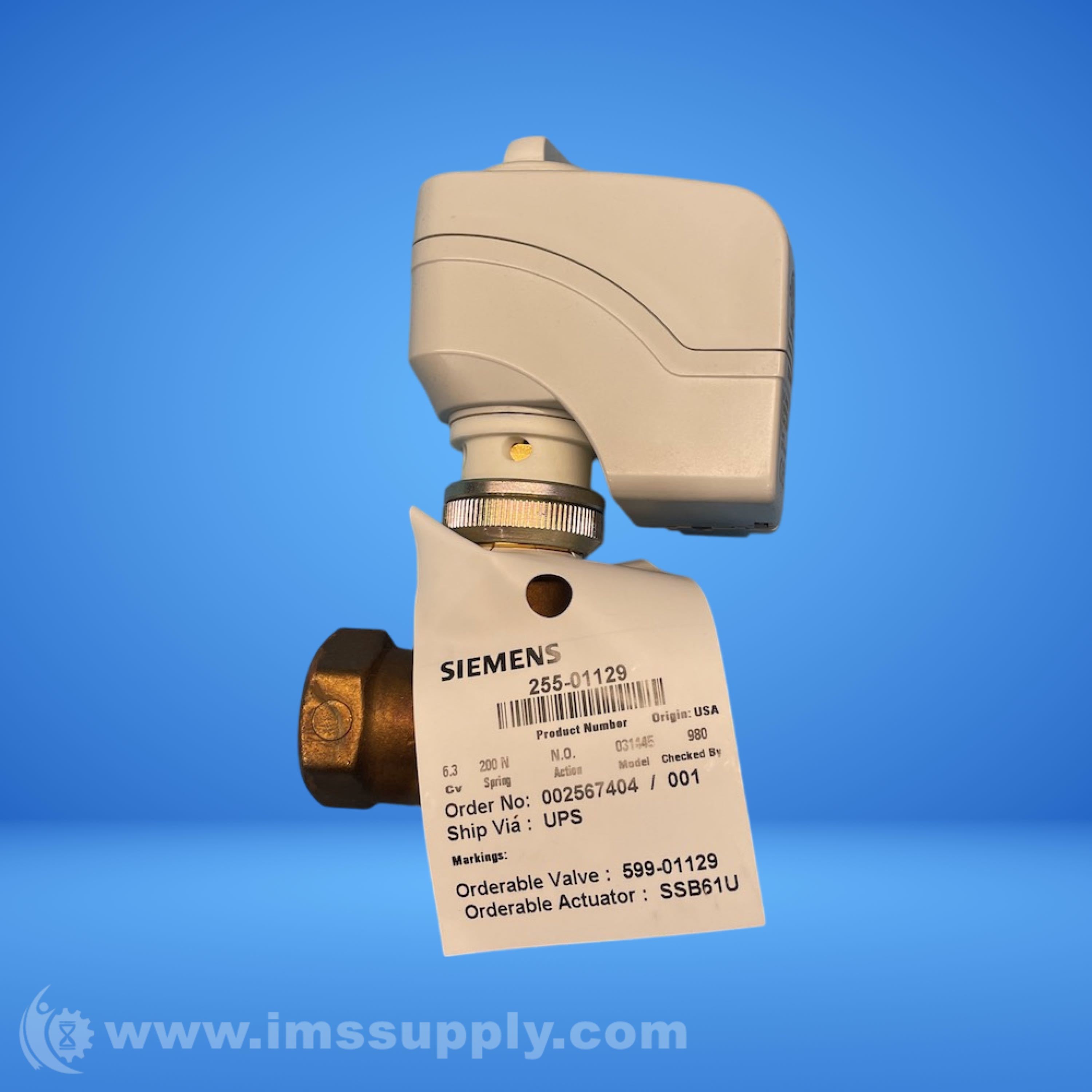

Siemens 255-01129 2-Way Brass Control Valve
2-way, normally-open, electronic-actuated control valve with 3/4" NPT connection and actuator for 6.3 CV flow using a 599-01129 valve and a SSB61U actuator.
Specifications
- Valve Size: 3/4"
- Valve Connection: NPT
- Body Material: Brass
- Flow Characteristic: Modified Equal Percentage
- Close-Off Pressure: 30 psi
- Power Consumption: 2.0 VA
- Voltage: 24V
- CV: 6.3
- Actuator Type: Non-Spring Return
- Control Input: Modulating
- Electrical Connection: Terminal Block For Plenum Cable
- Operating Conditions: 35 F To 250 F (2 C To 120 C)
- Service: Water, Glycol Solutions Up To 50%
- Fail Safe Position: Fail-In-Place
- Trim: Brass
- ANSI Class: 250
- Nema Rating: Nema 1
- Unit Weight: 2.26 lbs
- Country of Origin: USA
