SIEMENS 259-02045 VALVE ASSY NO
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 259-02045
IMS Product Code: 1878336
Packaging: Sold Individually
Description:

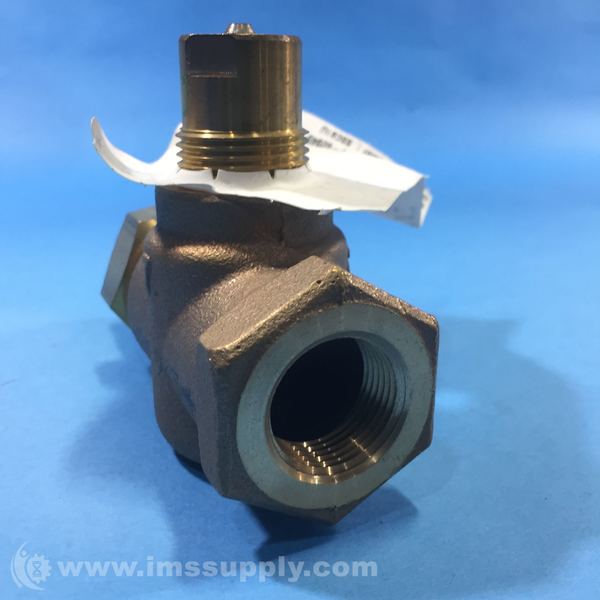

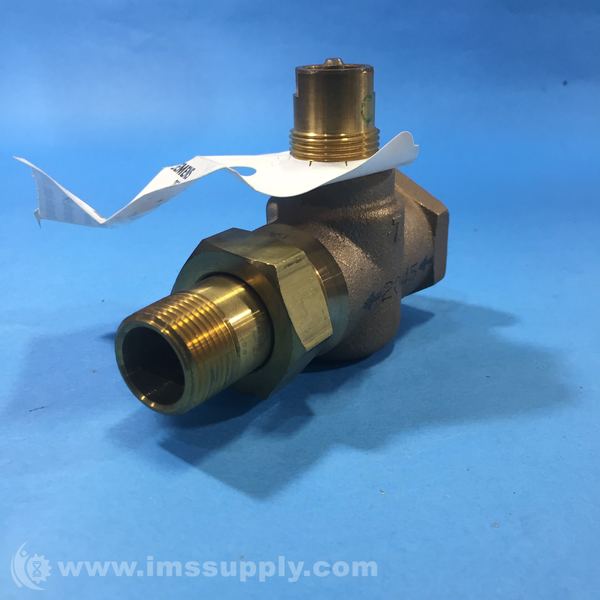

Siemens 259-02045 Valve Assy NO
2-Way Globe Valve with SSC81U Actuator
Specifications
- Actuator Type: Electronic
- Close Off Pressure: 55 psi
- Control Signal: Floating control
- End Connection: FxUM
- Fail Safe: No
- Flow Characteristic: Modified Equal-percentage
- Flow Coefficient Cv: 6.3
- Max Differential Pressure Liquid: 25 psi
- Max Differential Pressure Steam: 5 psi
- Max Inlet Pressure Absolute Liquid: 400 psi
- Max Inlet Pressure Absolute Steam: 5 psi
- Medium: Water;Water with anti-freeze
- Medium Temperature: 35�250 degrees F
- Operating Voltage: 24 VAC
- Port Configuration: 2-Way Normally open
- Spring Return Function: Non-spring return functionality
- Supply Voltage: 24 VAC
- Trim Material: Brass
- Valve Size: 0.75 in
- Pipe Size: 0.75 in
- Nema Rating: Nema 1
- Fail- Safe: Non-Spring Return
- Connection: NPT
- Type: Valve (Globe)
- Voltage: 24V
Used (Special):
Missing actuator.
