SIEMENS 265-1021 ELECTRIC-PNEUMATIC AIR VALVE
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 265-1021
IMS Product Code: 2130548
Packaging: Sold Individually
Description:

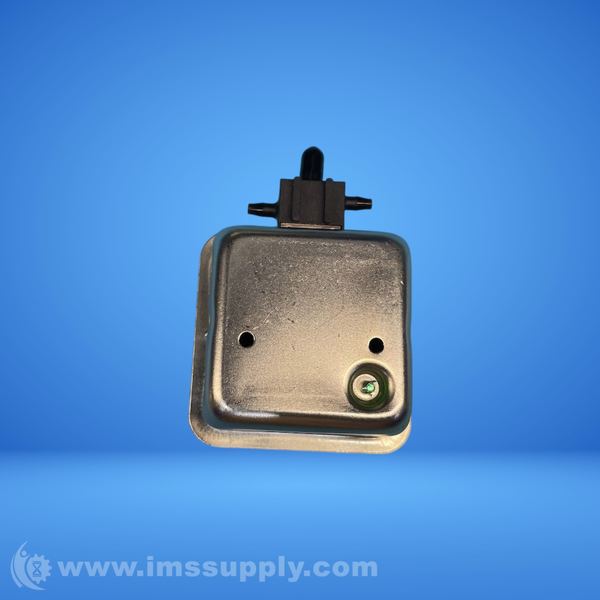

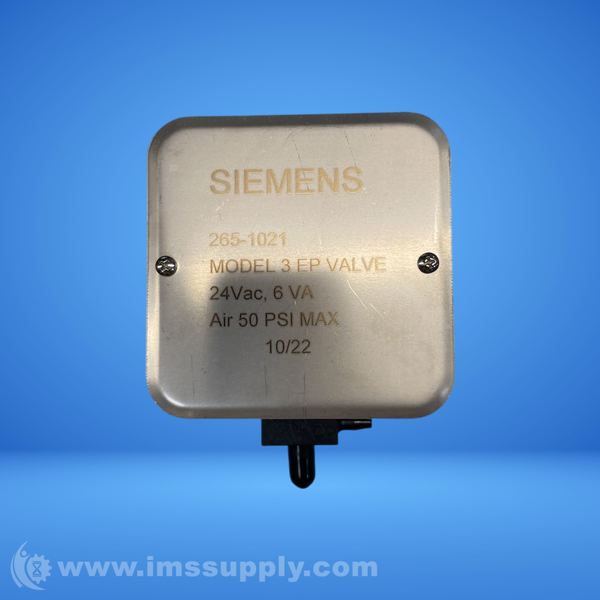

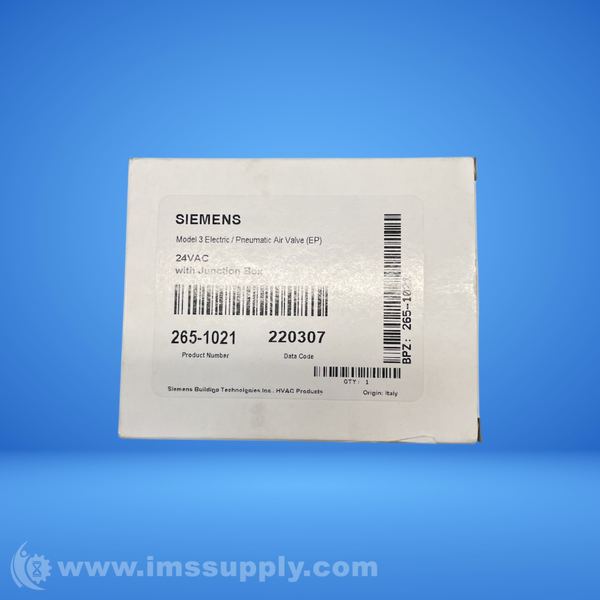

Siemens 265-1021 Electric-Pneumatic Air Valve
Three-way electric-pneumatic air valve with junction box, 24V AC, 60 Hz, 50 psi maximum operating pressure, PBT body, 1/4 inch male barbed hose connections.
Specifications
- Voltage: 24V AC
- Frequency: 60 Hz
- Maximum Operating Pressure: 50 psi
- Body Material: PBT
- Connection Size: 1/4 in
- Connection Type: Barbed Hose
- Power Consumption: 6 VA
- Control Signal: On/Off
- Valve Action: Normally Closed; Normally Open
- Body Pattern: Three-Way
- For Media: Air
- Coefficient of Volume (Cv): 0.06
- Operating Temperature Range: 0 F to 122 F
- Standards: cUL; UL Listed
- Dimensions: 3-3/16 in x 3-3/16 in x 1-13/16 in
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
