SIEMENS 268-03203 3-WAY MIXING VALVE ASSEMBLY
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 268-03203
IMS Product Code: 1834289
Packaging: Sold Individually
Description:

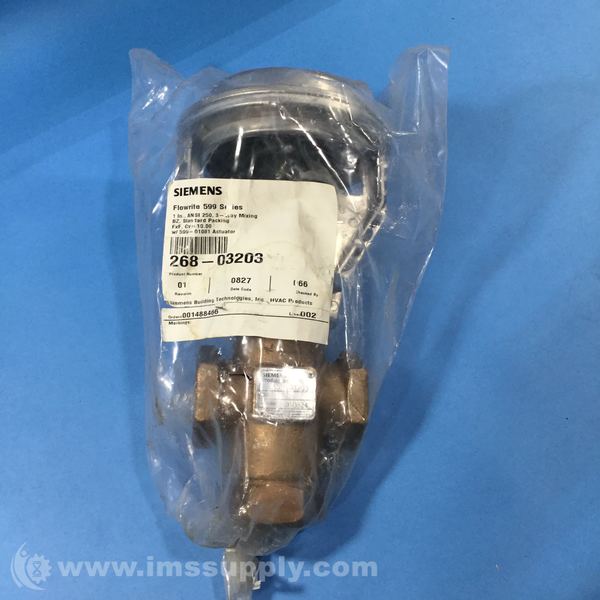

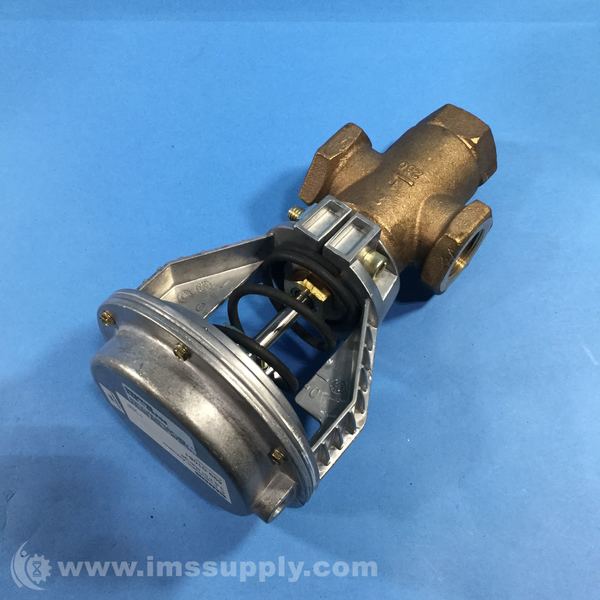

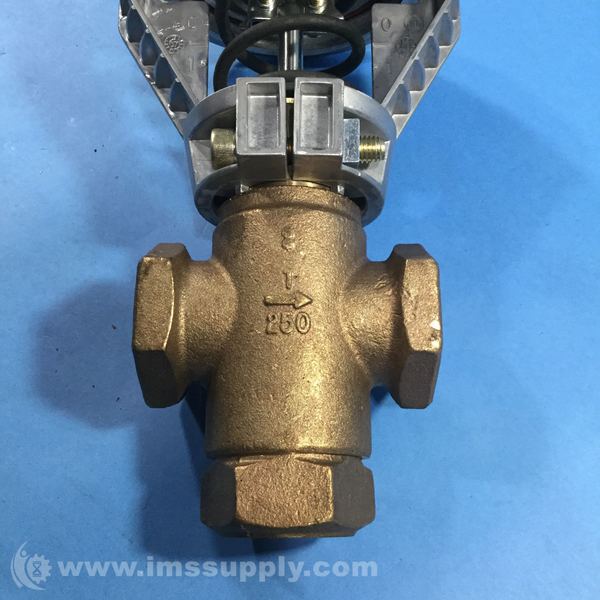

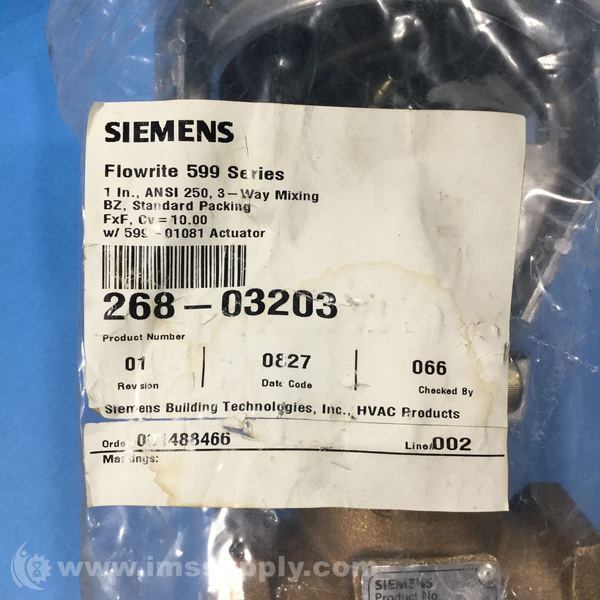

Siemens 268-03203 3-Way Mixing Valve Assembly
3-Way mixing valve with pneumatic actuator, 1-inch size, 10 Cv flow coefficient, brass trim, FxF connection, spring return actuator, 4-inch size, 3-8 psi operating pressure.
Specifications
- Size: 1 in

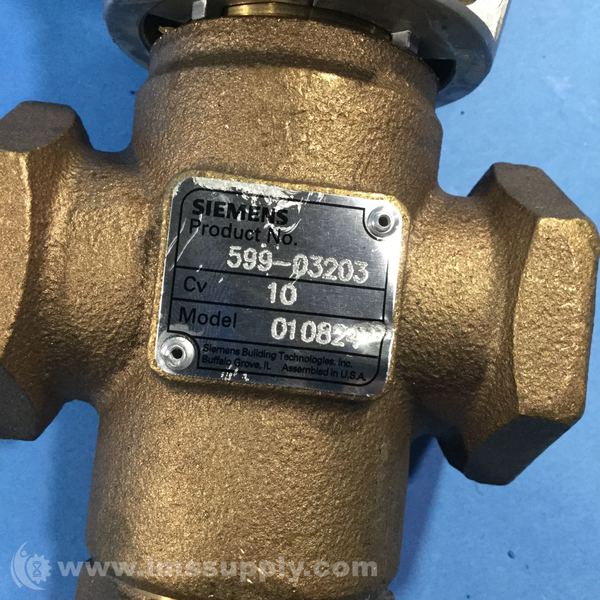

- Cv: 10
- Pattern: 3-way mixing
- Connection Type: FxF
- Trim Material: Brass

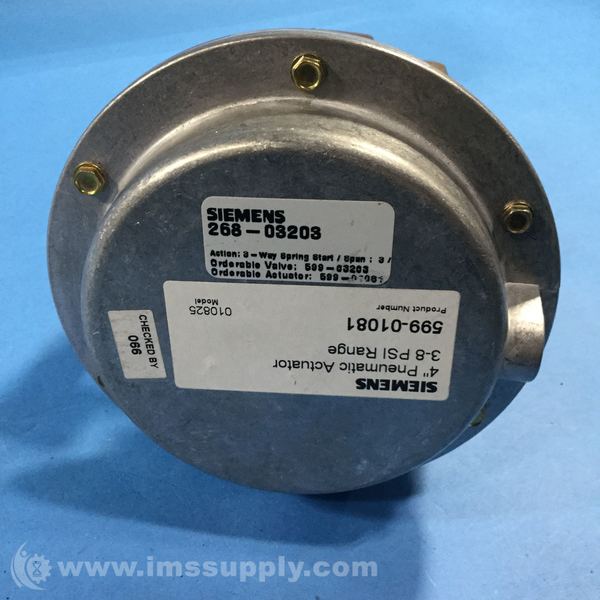

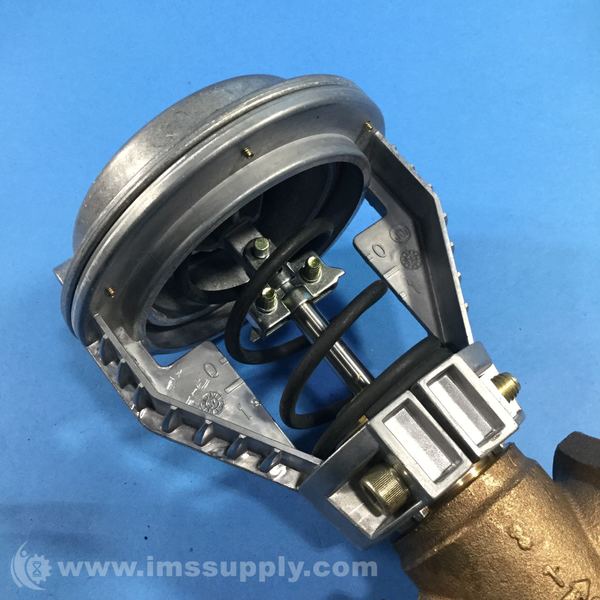

- Actuator Type: Spring Return Pneumatic
- Actuator Size: 4"
- Operating Pressure: 3-8 psi
- Body Material: UNS CA 844 bronze
- Close Off Pressure: 91 psi
- Flow Characteristic: Equal-percentage
- Leakage Rate: Class IV (0.01% of Cv)
- Rangeability: 100:1
- Stroke: 3/4 in., 20 mm
- Medium: Water; Water with anti-freeze
- Medium Temperature: 20…250 °F
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
