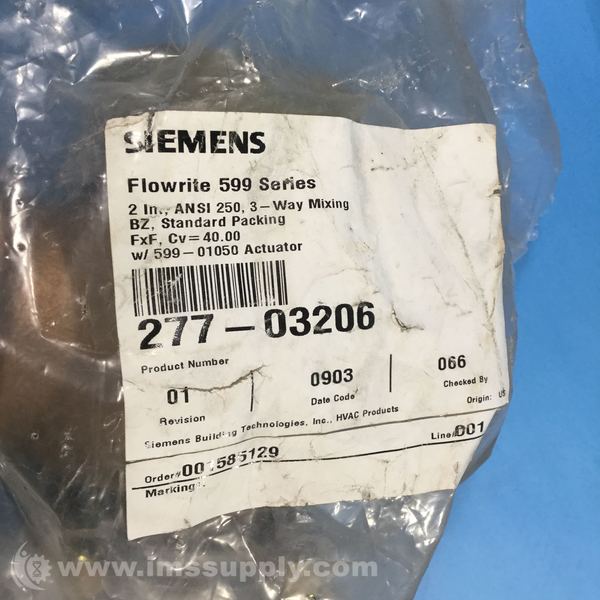

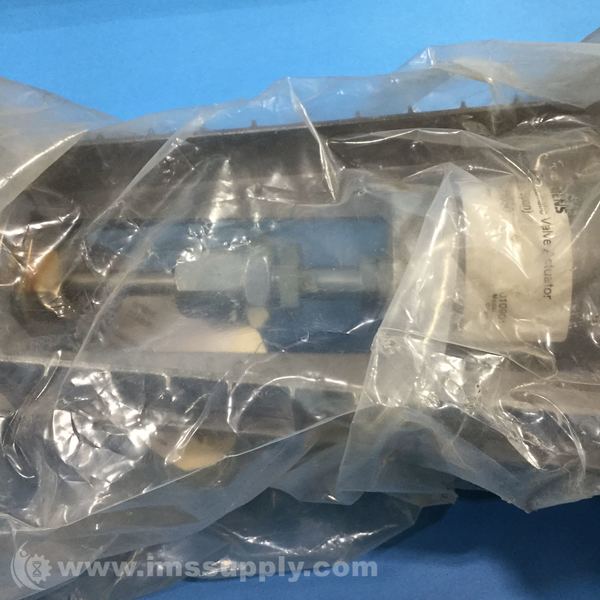

SIEMENS 277-03206 3-WAY BRASS CONTROL VALVE ASSEMBLY
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 277-03206
IMS Product Code: 1836588
Packaging: Sold Individually
Description:
Siemens 277-03206 3-Way Brass Control Valve Assembly
3-way mixing valve assembly with 2-inch NPT connection, 40 Cv flow coefficient, brass body with bronze trim, and 8-inch pneumatic actuator with 5 psi spring span. Features equal percentage and linear flow characteristics. Spring return fail-safe mode.
Specifications
- Type: Valve Assembly
- Configuration: 3 Way Mixing
- Size: 2 inches
- Connection Type: NPT
- Cv: 40
- Body Material: Brass
- Trim Material: Brass

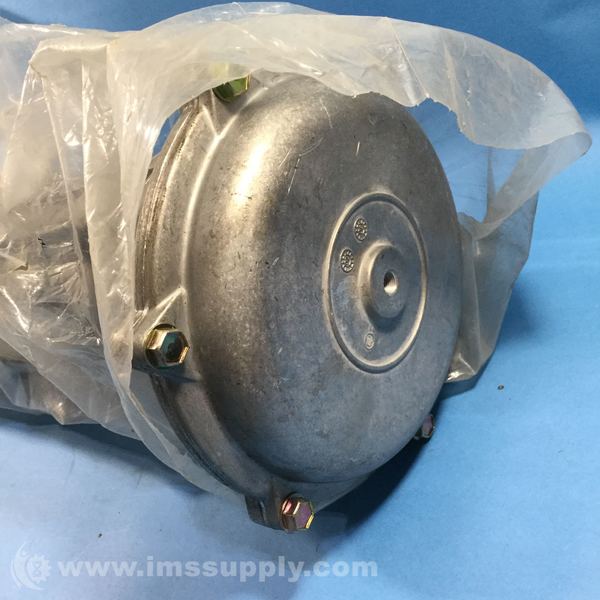

- Actuator Type: Pneumatic
- Actuator Size: 8 inches
- Spring Span: 5 PSI (Adjustable)
- Flow Characteristic: Equal Percentage and Linear
- Fail-Safe Mode: Spring Return
- Max Pressure: 125 psi WOG
- Close-Off Pressure: 55 psi
- Medium Temperature Range: 20-250 degrees F
- ANSI Class: 250
New - Missing Box (Special):
Includes attachement Siemens 599-03206
