SIEMENS 277-06170 3-WAY MIXING VALVE
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 277-06170
IMS Product Code: 1836869
Packaging: Sold Individually
Description:

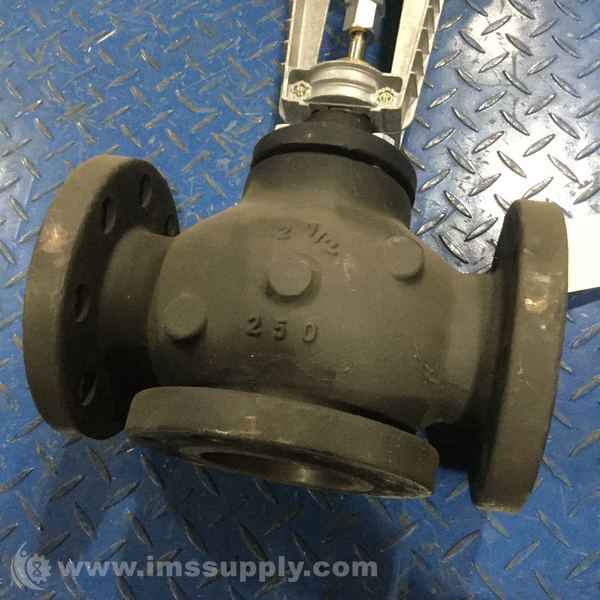

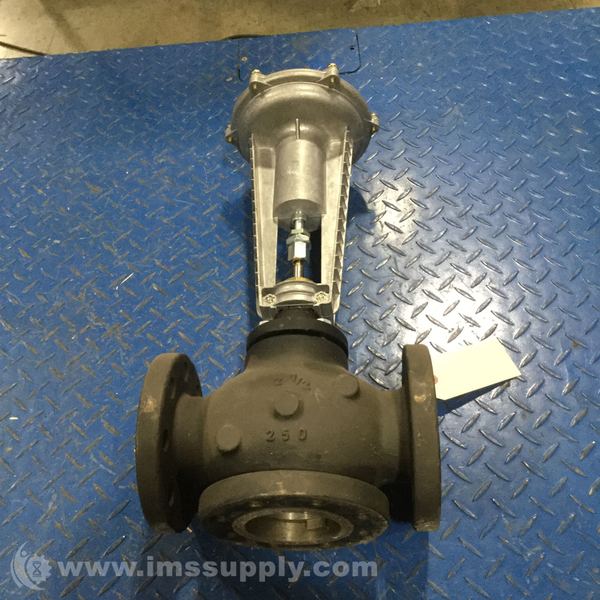

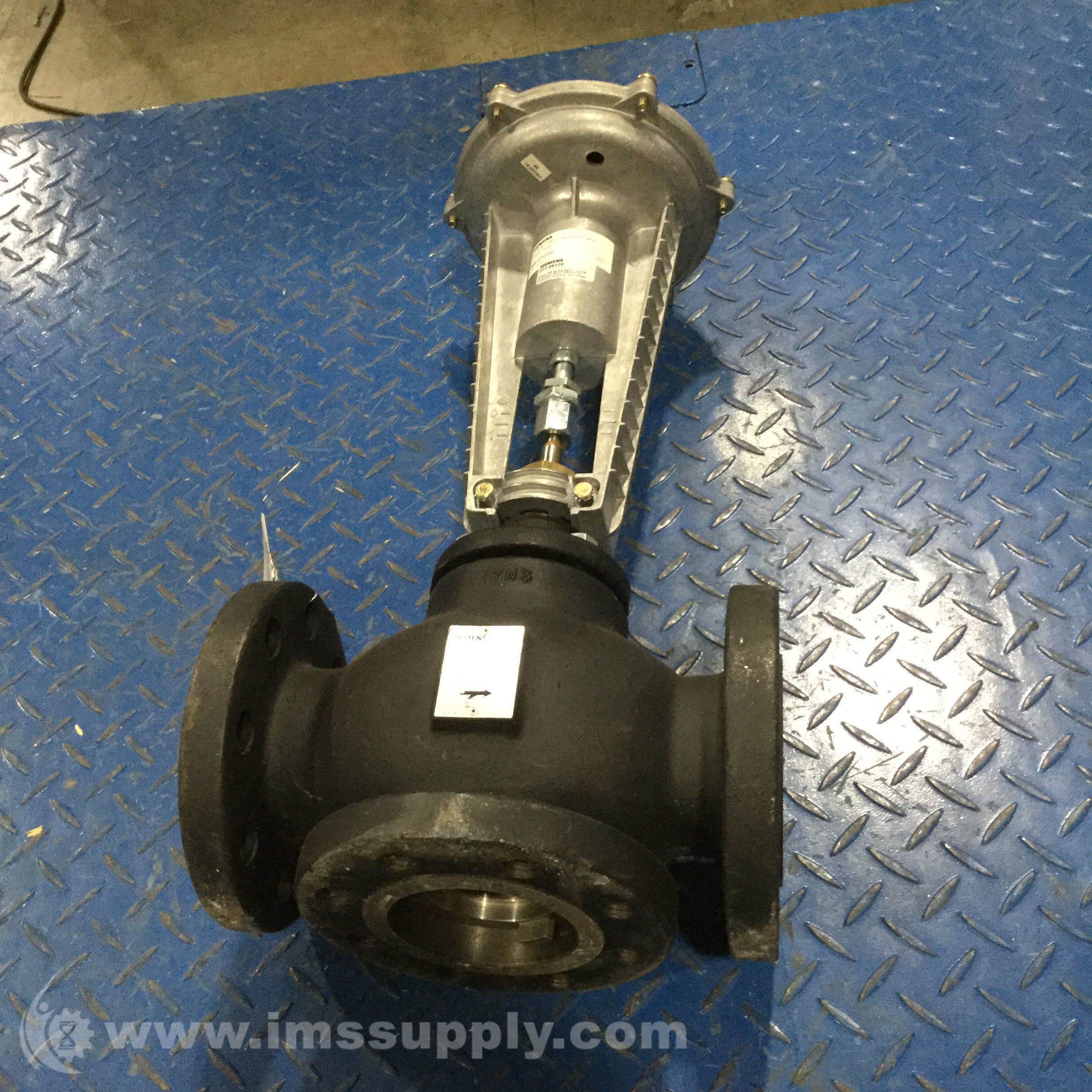

Siemens 277-06170 3-Way Mixing Valve
Three-way mixing valve with pneumatic actuator, 2.5-inch size, 63 Cv flow coefficient, bronze trim, flanged connections.
Specifications
- Actuator Type: Pneumatic
- Close Off Pressure: 36 psi
- Flow Characteristic: Linear
- Flow Coefficient Cv: 63.0000
- Leakage Rate: Class IV (0.01% of Cv)
- Material Inside Set: Body Trim: Bronze; Stem: Stainless Steel ASTM A582 Type 303; Packing: EPDM O-ring
- Material Valve Body: Cast iron ASTM A126 Class B
- Max Differential Pressure Liquid: 25 psi
- Medium Temperature: 20�250 �F
- Permissible Operating Pressure: Max. recommended differential pressure for modulating service: 50 psi, 345 kPa
- Port Configuration: 3-Way Mixing
- Rangeability: 100:1
- Spring Range: 3-8 psi
- Stroke: � in., 20 mm
- Trim Material: Brass
- Valve Body Style: Stroke-Globe
- Valve Size: 2.5 in
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
