SIEMENS 3RV1021-1FA10 MOTOR PROTECTOR
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 3RV1021-1FA10
IMS Product Code: 1204176
Packaging: Sold Individually
Description:

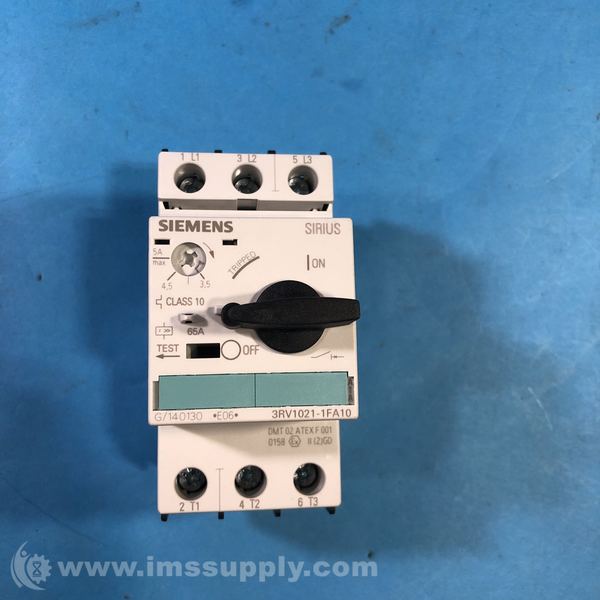

Siemens 3RV1021-1FA10 Motor Protector
Siemens 3RV1021-1FA10 is a circuit breaker/motor protector with built-in heater elements for overload protection and magnetic trip elements. It features a rotary dial for setting motor FLA and has a Class 10 tripping characteristic.
Specifications
- type: Circuit Breaker / Motor Protector
- class: 10
- frame size: S0
- setting range for thermal overload releases: 3.5 - 5
- adjustment range: 3.5-5.0A
- mounting type: DIN rail
- tripping characteristic: Class 10
- trip function: Test trip function
- short circuit trip: 12 times the maximum setting of the FLA adjustment dial
- ambient compensation: Up to 140 degrees F
- phase loss sensitivity: Yes
- frame: S0
- frequency rating: 50 to 60 Hz
- interrupt rating: 100 kA
- number of poles: 3
- phase: 3
- power rating: 1.5 kW
- series: 3RV1
- trip type: Thermal/Magnetic
- voltage rating: 690 VAC/VDC
- application: For motor protection and system protection
- standard & approvals: UL Listed, CE Certified, CCC Certified, CSA Certified, IEC Certified
- dimensions: 97 mm H x 45 mm W x 96 mm D
- actuator type: Rotary Handle
- connection type: Screw
- enclosure type: IP20
- amperage rating: 5 A
- current rating: 5 A
- max operating temperature: 60 degrees C
- min operating temperature: -20 degrees C
- height: 96 mm
- length: 97 mm
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
