SIEMENS 3RV1041-4JA10 MOTOR PROTECTION CIRCUIT BREAKER
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 3RV1041-4JA10
IMS Product Code: 1204198
Packaging: Sold Individually
Description:

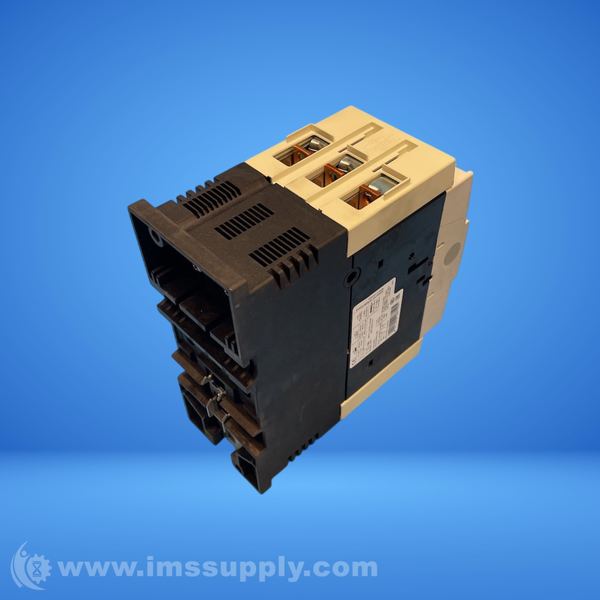

Siemens 3RV1041-4JA10 Motor Protection Circuit Breaker
Siemens 3RV1041-4JA10 is a motor protection circuit breaker with thermal/magnetic trip, 690 VAC, 45-63 A, 6 kA interrupt rating, 3 poles, and screw terminals.
Specifications
- Setting Range for Thermal Overload Releases: 45 - 63
- Frame Size: S3
- Class: 10
- Frame: 3RV1/S3
- Frequency Rating: 50/60 Hz
- Interrupt Rating: 6 kA
- Mounting Type: DIN Rail
- Number Of Poles: 3
- Phase: 3
- Power Rating: 30 kW
- Temperature Rating: -20 to 60 deg C
- Trip Type: Thermal/Magnetic
- Voltage Rating: 690 VAC
- Amperage Rating: 45 to 63 A
- Dimensions: 165 mm H x 70 mm W x 174 mm D
- Connection Type: Screw
- Enclosure Type: IP20
- Wire Size: 10 to 1 AWG, 10 to 2 AWG
- Country of origin: Germany

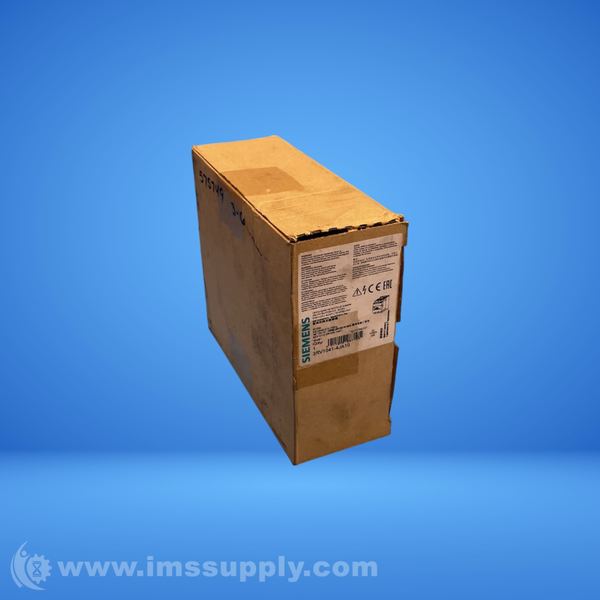

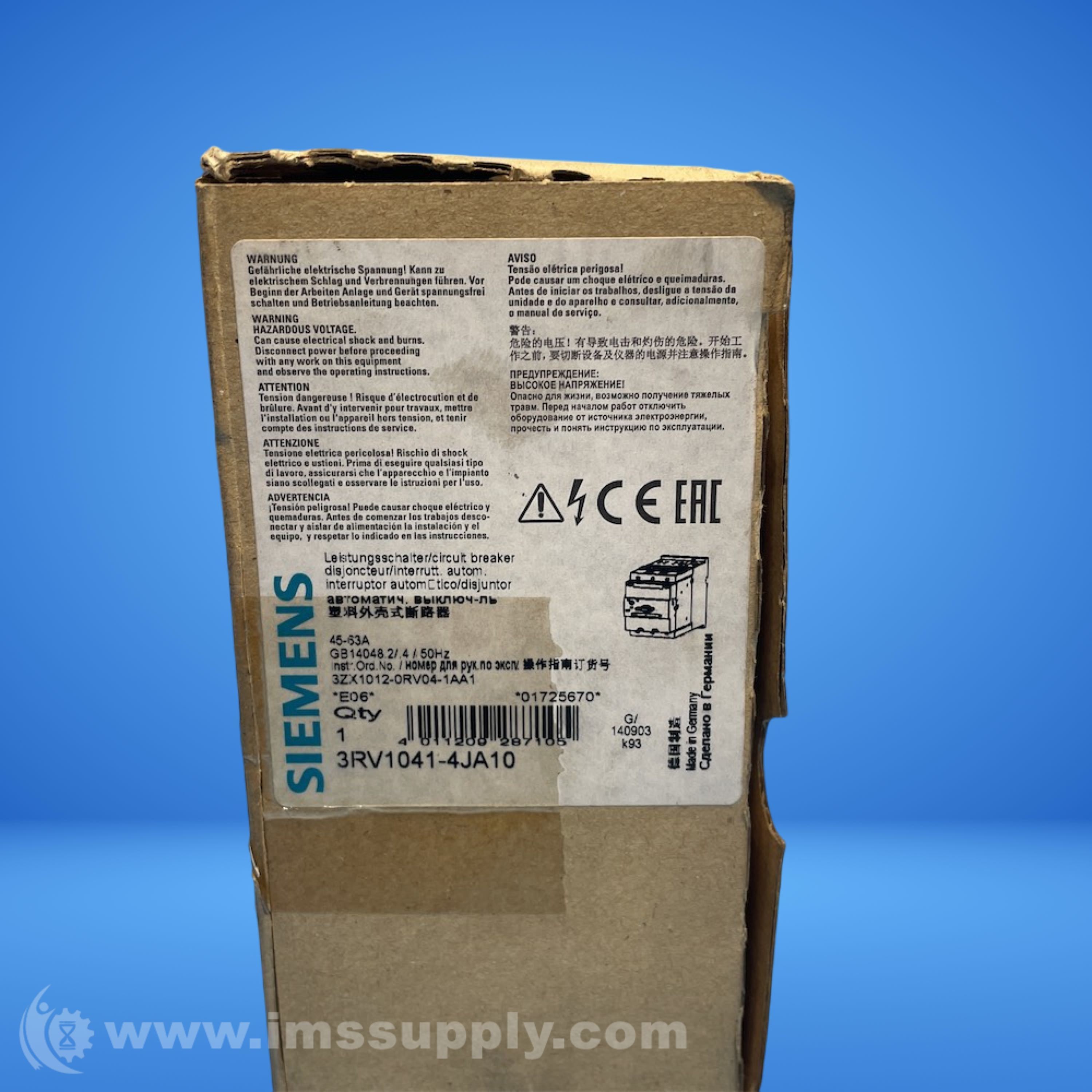

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
