SIEMENS 3RV1042-4KB10 CIRCUIT BREAKER
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 3RV1042-4KB10
IMS Product Code: 1204201
Packaging: Sold Individually
Description:

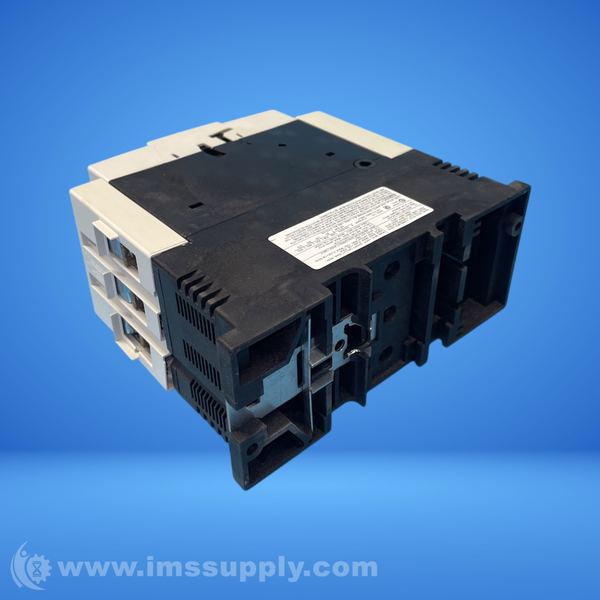

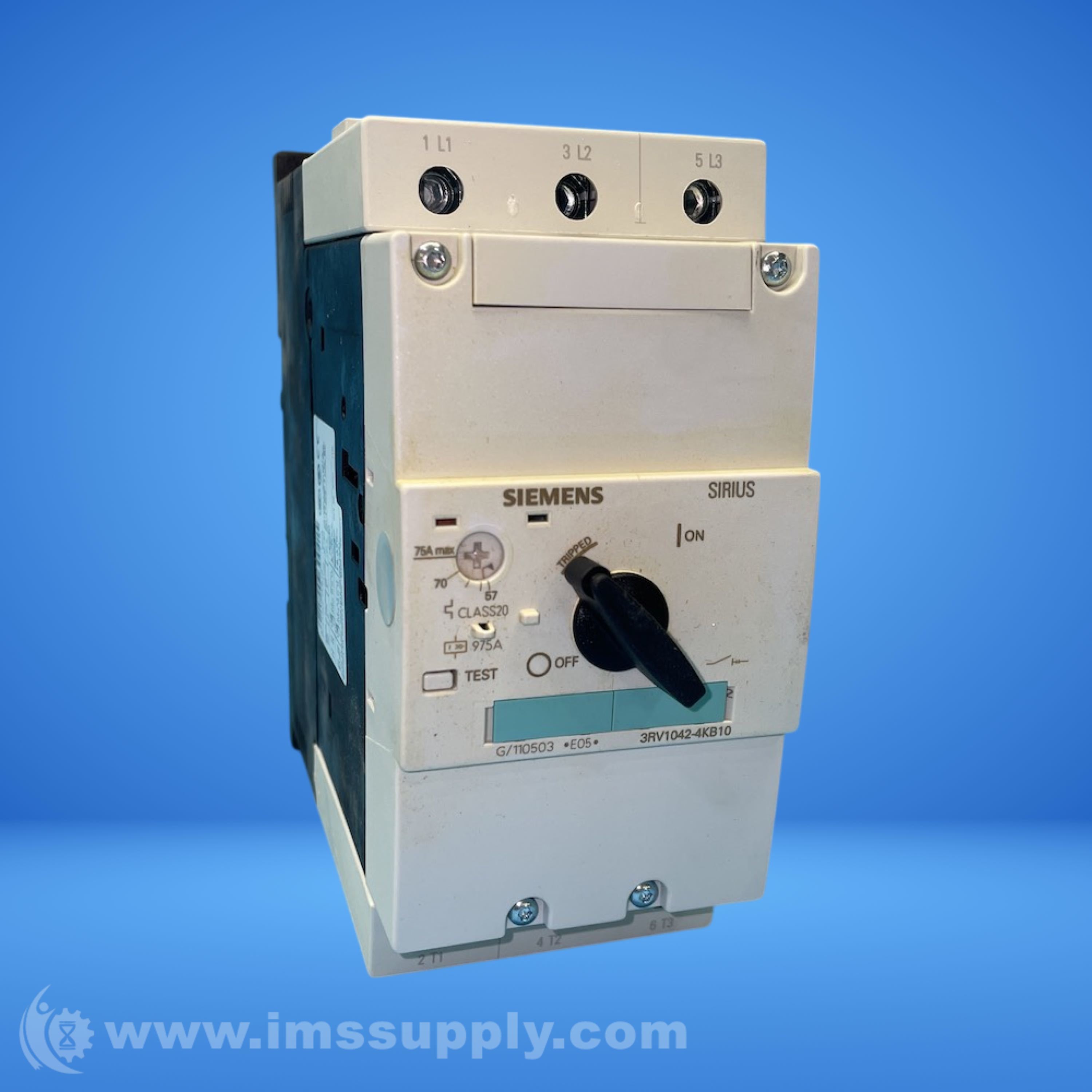

Siemens 3RV1042-4KB10 Circuit Breaker
Siemens Motor Protection Circuit Breaker, 690 VAC, 57 to 75 A, 37 kW Power, 50/60 Hz Frequency, 6 kA Interrupt, 3RV1/S3 Frame, Thermal/Magnetic Trip, 3 Pole, 3 ph, Rotary Lever Actuator, Screw Connection
Specifications
- Manufacturer: Siemens
- MPN: 3RV1042-4KB10
- Type: Circuit Breaker
- Series: 3RV1
- Number of Poles: 3
- Current Type: AC
- Voltage Rating: 690 VAC
- Maximum Amperage: 100 A
- Amperage Rating: 57 to 75 A
- Breaking Capacity: 100 kA
- Case Type: Molded Case
- Material: ABS/Plastic, Plastic
- Trip Type: Thermal Magnetic
- Frequency Rating: 50/60 Hz
- Enclosure Type: IP20
- Phase: 3
- Frame: 3RV1/S3
- Power Rating: 37 kW
- Temperature Rating: -20 to 60 degrees C
- Connection Type: Screw
- Mounting Type: DIN Rail
- Dimensions: 165 mm H x 70 mm W x 174 mm D
- Actuator Type: Rotary Lever
- Interrupt Rating: 6 kA
- Wire Size: 10 to 1 AWG, 10 to 2 AWG
- Weight: 2.268 kg
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
